Overview 8

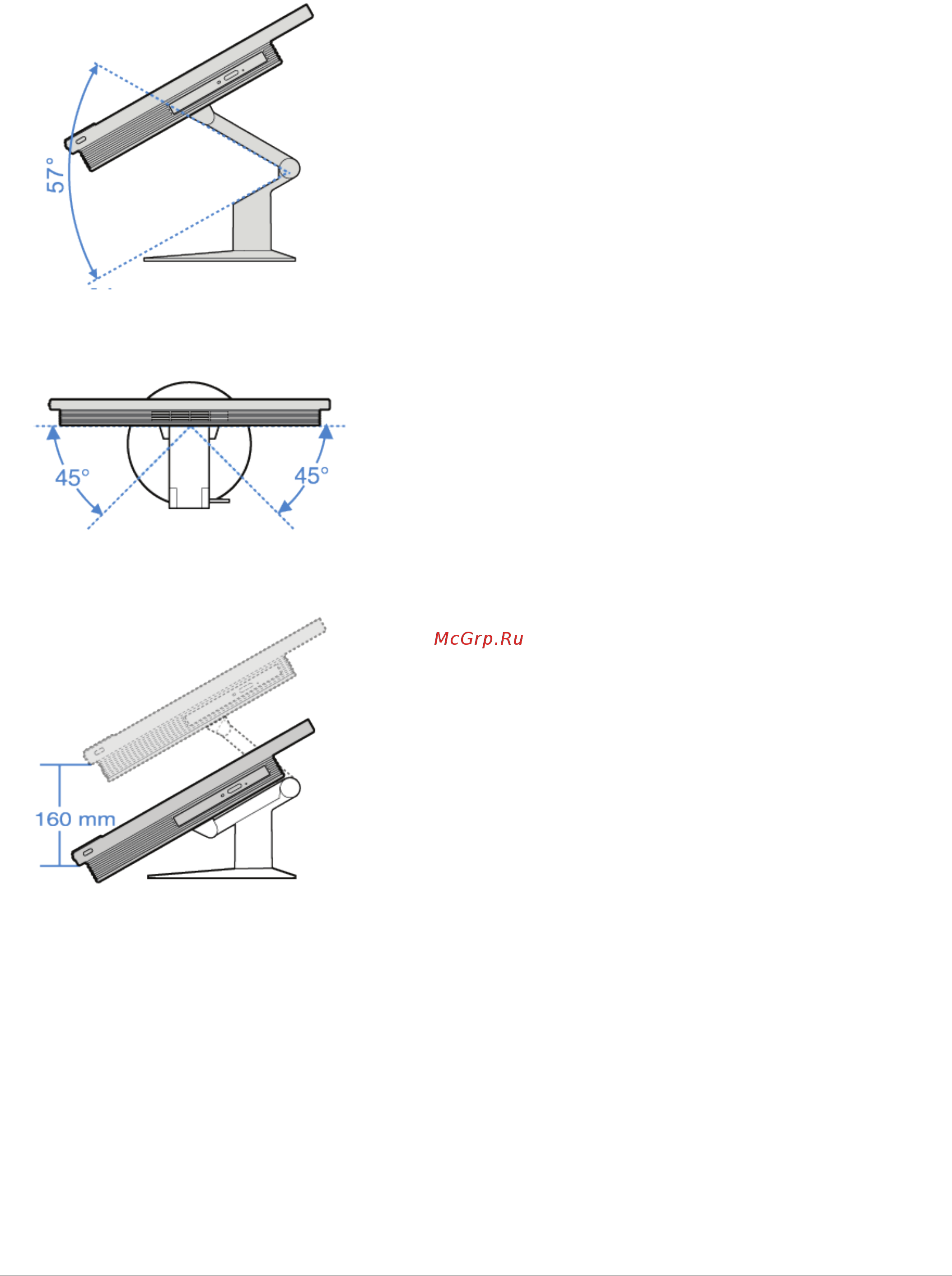

After tilting your computer back, you can adjust the UltraFlex II
Stand downward by up to 57°.
Turn the computer at an angle of 45° to the left and 45° to the
right.
Adjust the height of the UltraFlex II Stand up to a length of 160
mm (6.3 inches).
