10
Introduction
Note
Note
DVI-D function is
model dependent.
CAUTION
Use of controls,
adjustments or
performance of
procedures other
than those specified
herein may result in
hazardous laser light
exposure.
Complies with
FDA performance
standards for laser
products except for
deviations pursuant to
Laser Notice No. 50,
dated June 24, 2007.

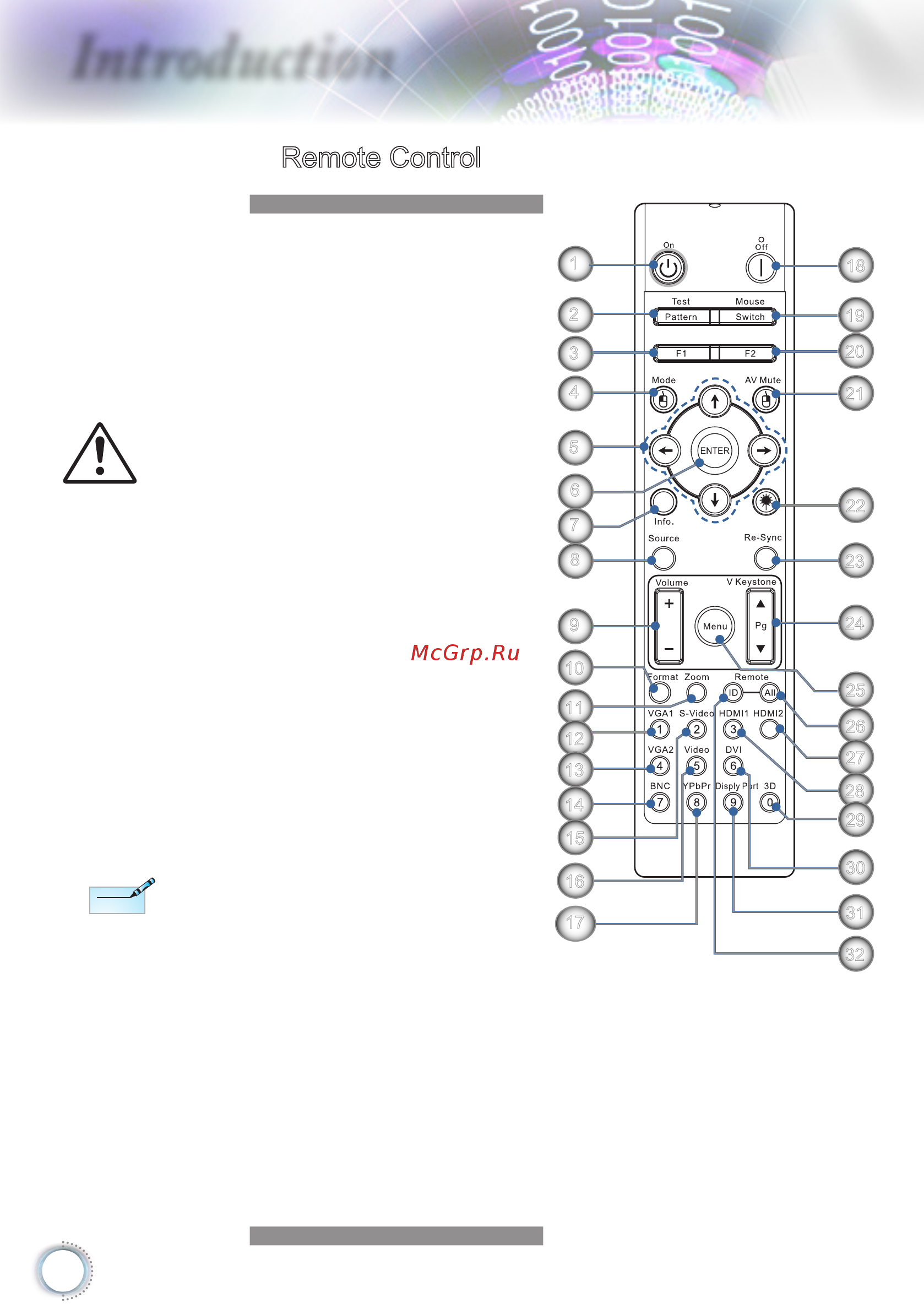

Remote Control
1. Power On
2. Test Pattern
3. Function 1 (Assignable)
4. Display mode / Mouse
Left Key
5. Four Directional Select
Keys
6. Enter
7. Information Panel
8. Source
9. Volume +/-
10. Format (Aspect Ratio)
11. Zoom
12. VGA1/1 (Number Button
for password input)
13. VGA2/4
14. BNC/7
15. S-Video/2
16. Video/5
17. YPbPr/8
18. Power O
19. Mouse Switch
20. Function 2 (Assignable)
21. AV Mute / Mouse Right
Key
22. Laser
23. Re-Sync
24. V Keystone +/-
25. Menu
26. Remote code All
27. HDMI2
28. HDMI1/3
29. 3D/0
30. DVI/6
31. DisplayPort/9
32. Remote code 01~99
1
22
23
24
2
3
4
6
7
8
9
10
11
12
13
14
18
19
20
21
25
26
27
28
29
15
16
17
30
31
32
5
