Optoma DH1017 [16/87] Installation

Installation

Diagonal

length (inch) size

of 4:3 Screen

Screen Size W X H (4:3) Projection distance (D)

Oset (A)

(m) (feet) (m) (feet)

Width Height Width Height wide tele wide tele (m) (feet)

30” 0.61 0.46 2.00 1.50 1.10 1.28 3.60 4.20 0.06 0.19

40” 0.81 0.61 2.67 2.00 1.46 1.71 4.80 5.60 0.08 0.25

60” 1.22 0.91 4.00 3.00 2.19 2.56 7.20 8.40 0.11 0.37

80” 1.63 1.22 5.33 4.00 2.93 3.41 9.60 11.20 0.15 0.49

100” 2.03 1.52 6.66 5.00 3.66 4.27 12.00 14.00 0.19 0.62

120” 2.44 1.83 8.00 6.00 4.39 5.12 14.40 16.80 0.23 0.74

140” 2.84 2.13 9.33 7.00 5.12 5.97 16.80 19.59 0.26 0.86

160” 3.25 2.44 10.66 8.00 5.85 6.83 19.20 22.39 0.30 0.99

190” 3.86 2.90 12.66 9.50 6.95 8.11 22.79 26.59 0.36 1.17

230” 4.67 3.51 15.33 11.50 8.41 9.81 27.59 32.19 0.43 1.42

280” 5.69 4.27 18.66 14.00 10.24 11.95 33.59 39.19 0.53 1.73

300” 6.10 4.57 19.99 15.00 10.97 - 35.99 - 0.56 1.85

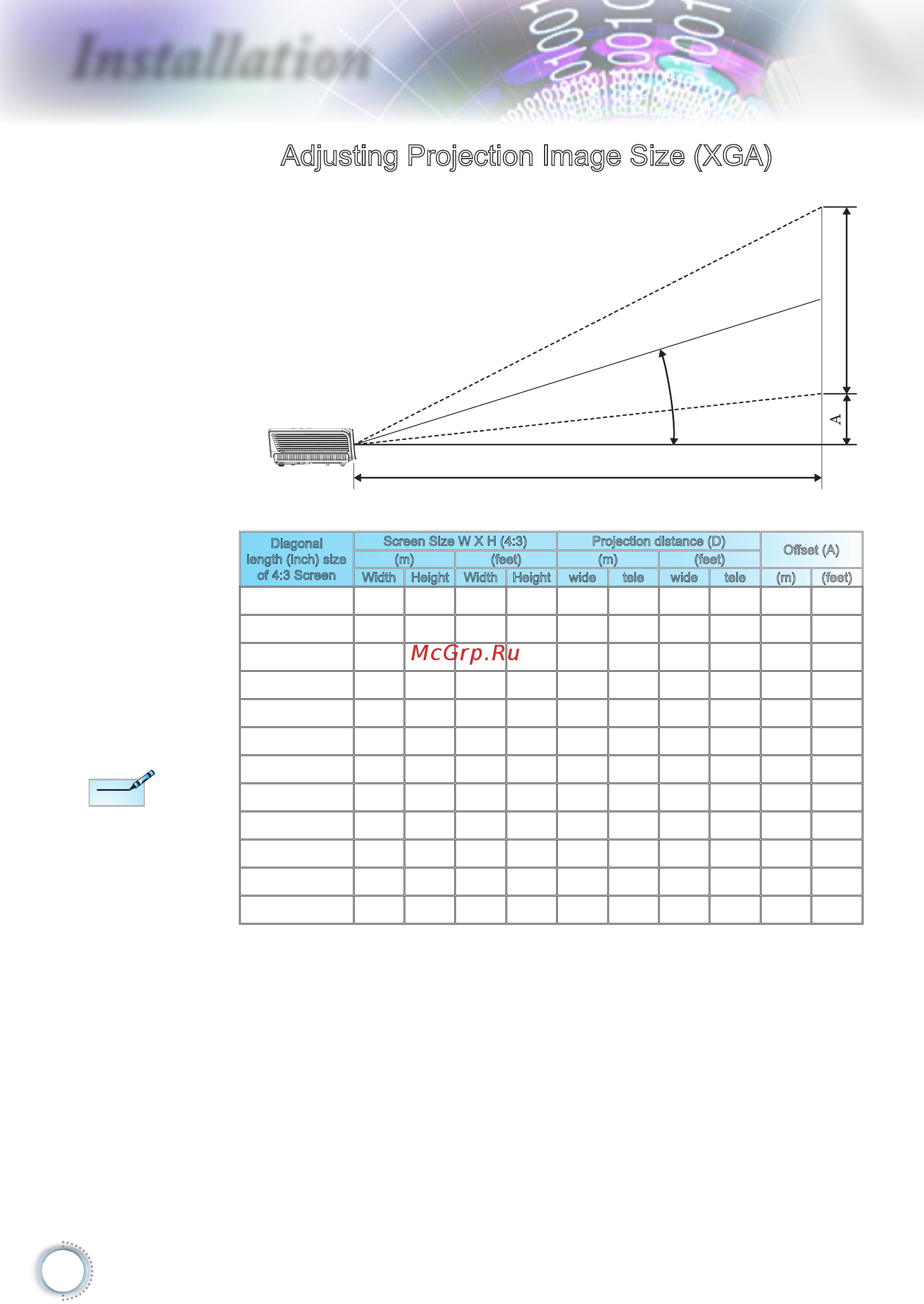

Adjusting Projection Image Size (XGA)

3URMHFWLRQ'LVWDQFH

.H\VWRQH&RUUHFWLRQ$QJOH

,PDJH+HLJKW

Note

300" (overdrive) for

Asia.
