3322
ENGLISH
General Setup
The setting structure is as follows:
--General Setup Page--
TV Display Normal/PS
Normal/LB
Wide
TV Type NTSC
PAL
VIDEO OUT SCART/CVBS
SCART/RGB
Angle Mark On
Off
OSD Lang English
Spanish
German
French
Russian
Screen Saver ON
OFF
TV DISPLAY
1. Normal/PS
Note: "PS" stand for "Pan Scan" This is select-
ed when the unit is connected with a normal
TV.
Wide-Screen images are shown on the screen,
but with some parts cut automatically.
2. Normal/LB
Note : "LB" stand for "Letter Box "
This is selected when the unit is connected
with a normal TV.
Wide-screen images are shown on the screen,
with black belt on the top and bottom.
3. Wide
This is selected when the unit is connected
with a wide - screen TV.
TV TYPE
You may select according to the color system of
the TV to be connected.
• Select "NTSC" for a NTSC TV.
• Select "PAL" for a PAL TV.
VIDEO OUT
Select the color video type and seitch mode to fit
your connector type:
SCART/CVBS: Select when using CVBS compos-
ite Video Output, SCART compos-
ite Video Output and S-Video Out-
put (if S-Video connector is pro-
vided.)
SCART/RGB: Select when using RGB Video sig-
nal and TV to AV automatic switch-
ing mode control signal.
YUV: Select when using Component
Video Outputs.
ANGLE MARK
This only works when there is an angle mark on
the disc.
• Select "ON" the screen shows the angle mark
when playing a DVD.
• Select "OFF" the angle mark is not shown.
OSD LANG
• English: The OSD is in English.
• Spanish: The OSD is in Spanish.
• German: The OSD is in German.
• French: The OSD is in French.
• Russian: The OSD is in Russian.
Screen Saver
Start the screen saver, the screen saver image
appears when the unit stops or the image is
motionless for approximately 1 minute. This saver
can keep the screen from being damaged.
• ON: Start the screen saver.
• OFF: Remove the screen saver.
Audio Setup Page
SPEAKER SETUP
Select Audio setup in the Setup Menu and then
Select the Speaker Setup Menu using the
Navigation (,) buttons to navigate through the
menus/screens and press the Enter button to
confirm.
--SPEAKER SETUP PAGE--
Downmix LT/RT
Stereo
Off
Front Speaker Large
Small
CNTR Speaker Large
Small
Off
Rear Speaker Large
Small
Off
Subwoofer On
Off
Test Tone On
Off

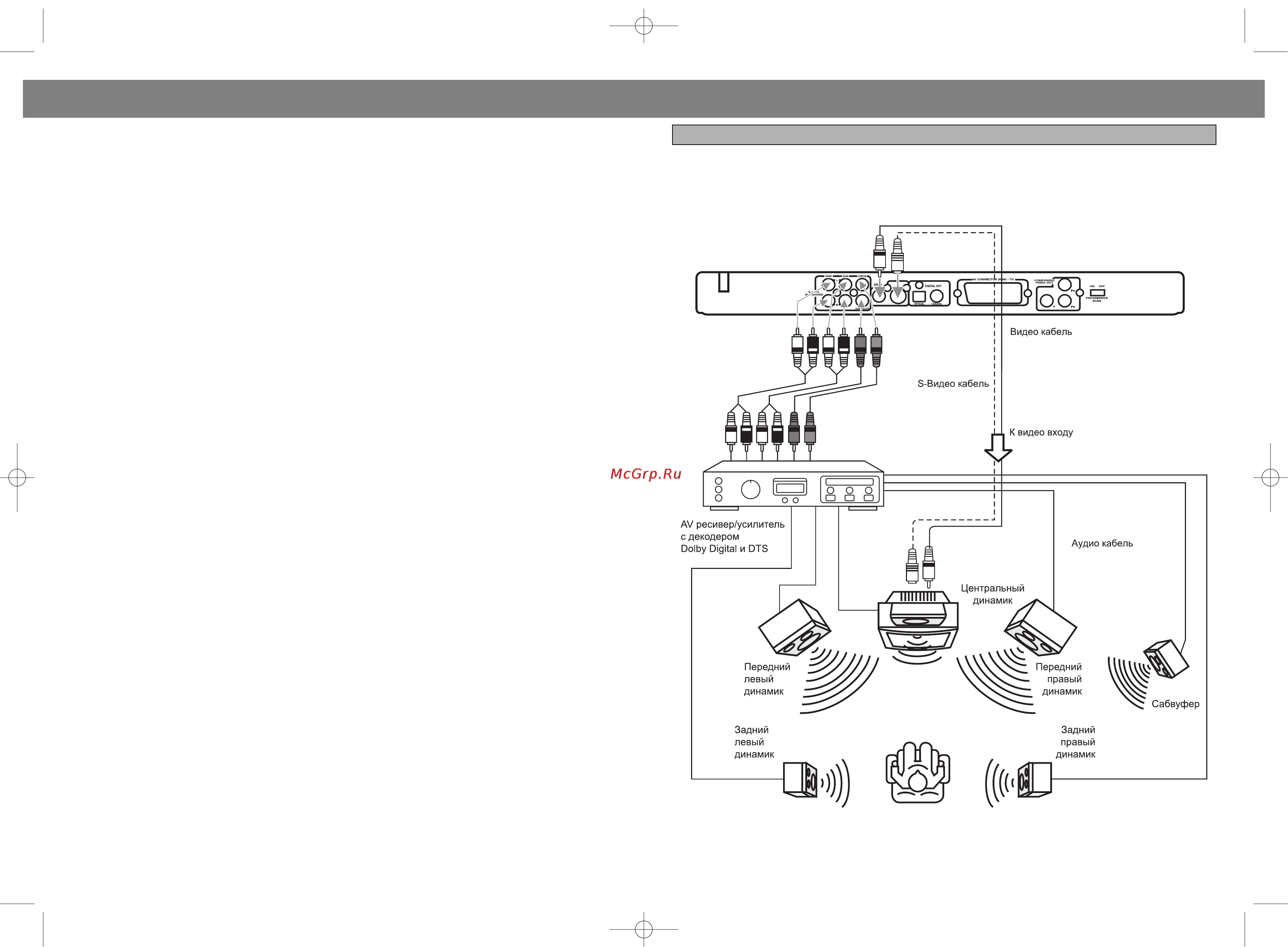

Ïîäêëþ÷åíèå ñèñòåìû
Ïîäñîåäèíèòå ðàçúåìû ÀÓÄÈÎÂÛÕÎÄÎÂ 5.1 ê óñèëèòåëþ ïðè óñëîâèè, ÷òî óñèëèòåëü èìååò ñîîòâåòñòâóþùèå
ðàçúåìû ÀÓÄÈÎÂÕÎÄÎÂ 5.1.
Ïðè ïîäñîåäèíåíèè ñèñòåìû âûêëþ÷èòå ïèòàíèå è âûäåðíèòå âèëêó øíóðà ñèëîâîãî ïèòàíèÿ èç ñåòåâîé
ðîçåòêè.
ÐÓÑÑÊÈÉ
ÏÎÄÊËÞ×ÅÍÈÅ ÀÓÄÈÎÂÛÕÎÄÀ ÔÎÐÌÀÒÀ 5. 1
