21

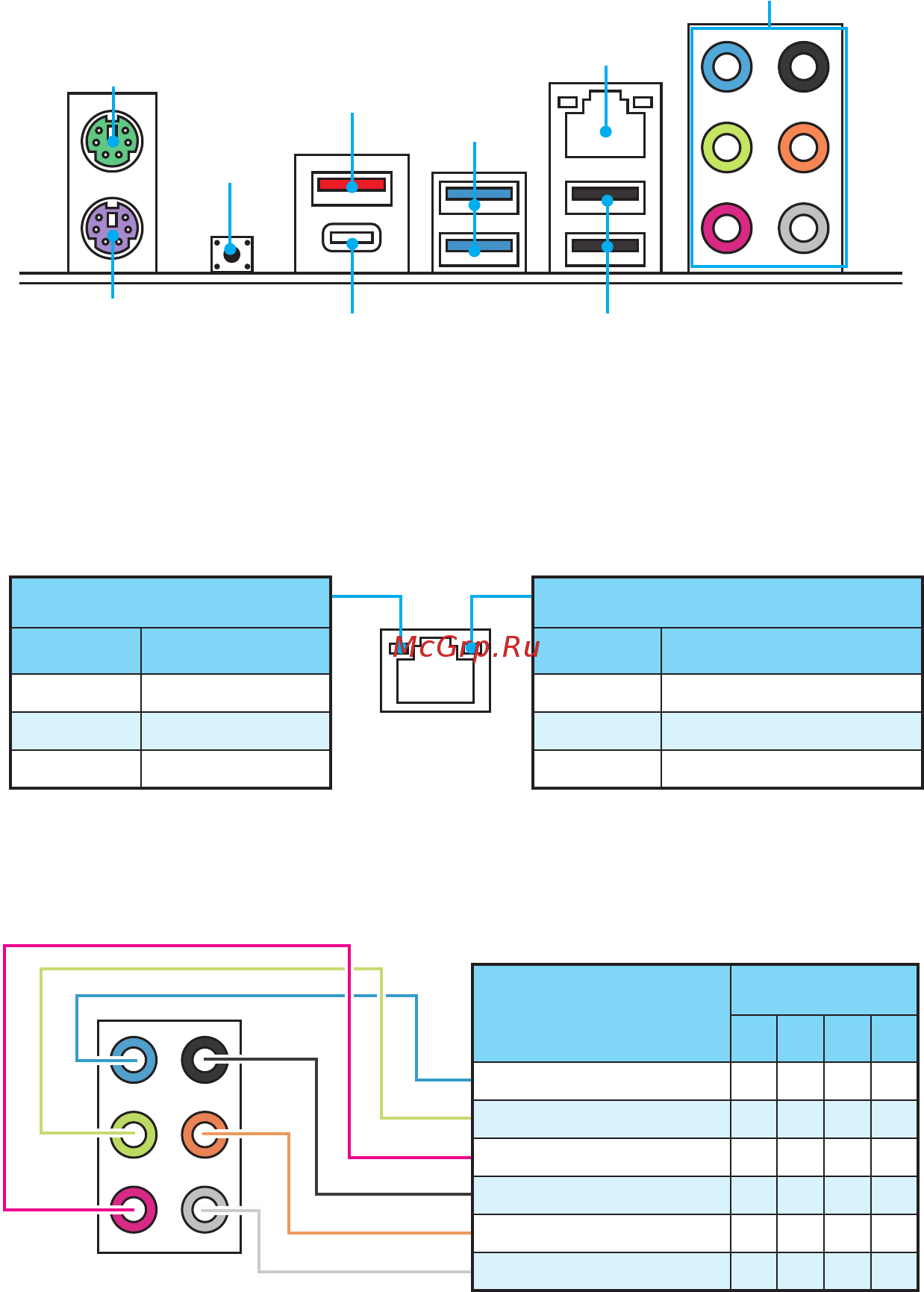

Rear I/O Panel
USB 3.1 Gen1
USB 2.0
Rear I/O Panel
PS/2 Mouse
LAN
Audio Ports
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
PS/2 Keyborad
USB 3.1 Gen1
Clear
CMOS
Audio Ports Configuration
y Clear CMOS button - Power off your computer. Press and hold the Clear CMOS
button for about 5 seconds to reset BIOS to default values.
USB 3.1 Gen1 Type-C
Audio Ports
Channel
2 4 6 8
Line In
Line-Out/ Front Speak Out ● ● ● ●
Mic In
Rear Speaker Out ● ● ●
Center/ Subwoofer Out ● ●
Side Speaker Out ●
(●: connected, Blank: empty)
