29
Overview of Components
BAT1

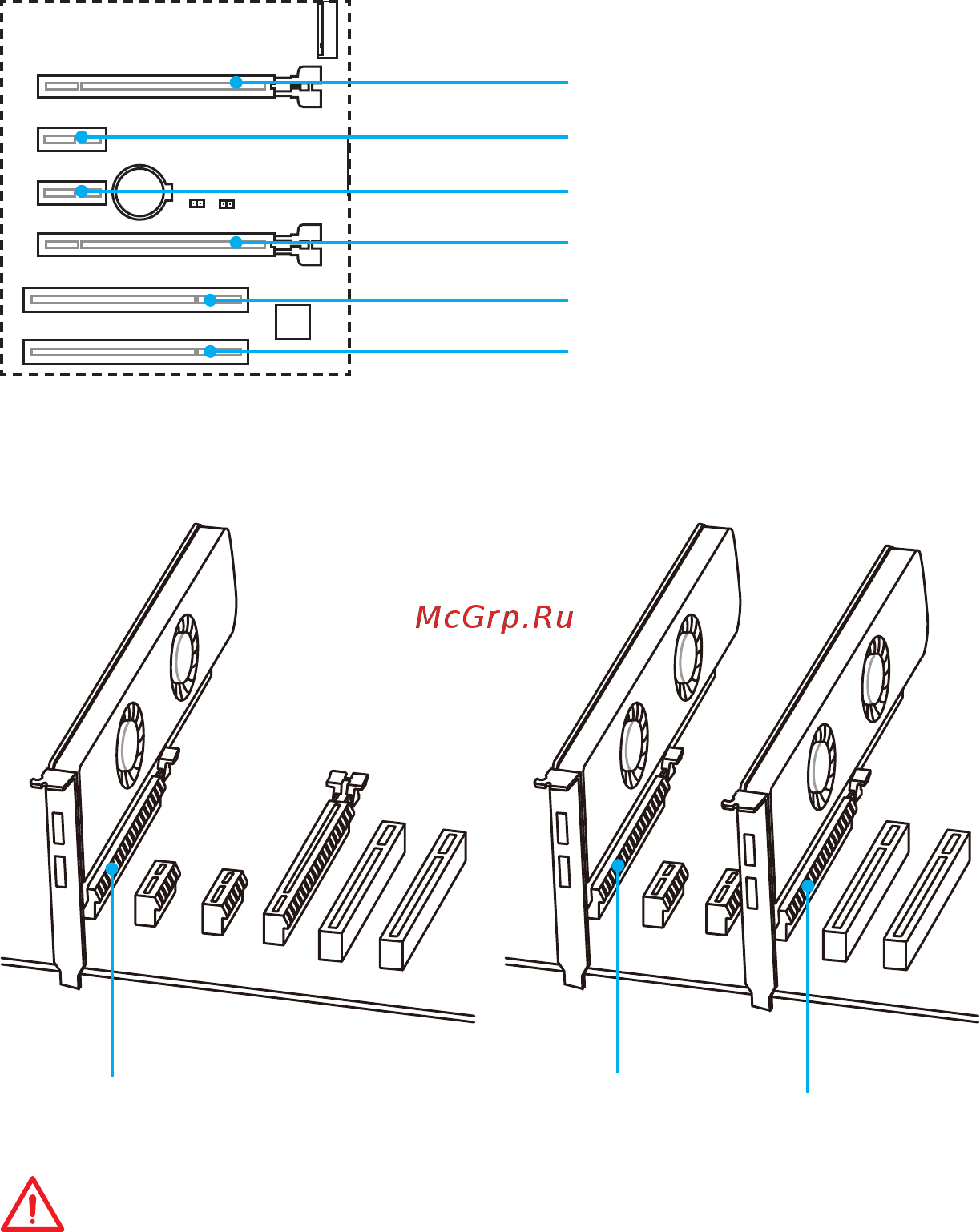

PCI_E1~E4, PCI1~2: PCIe and PCI Expansion Slots
PCI_E1: PCIe 3.0 x16
PCI_E2: PCIe 3.0 x1
PCI_E4: PCIe 3.0 x4
PCI_E3: PCIe 3.0 x1
PCI1: PCI slot
PCI2: PCI slot
Multiple graphics cards installation recommendation
x16
x16
x4
Important
y
For a single PCIe x16 expansion card installation with optimum performance, using
the PCI_E1 slot is recommended.
y
When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
y
PCI_E4 slot will be unavailable when installing the M.2 PCIe module in M.2 slot (Key
M, M2_1).
