71
Software Description

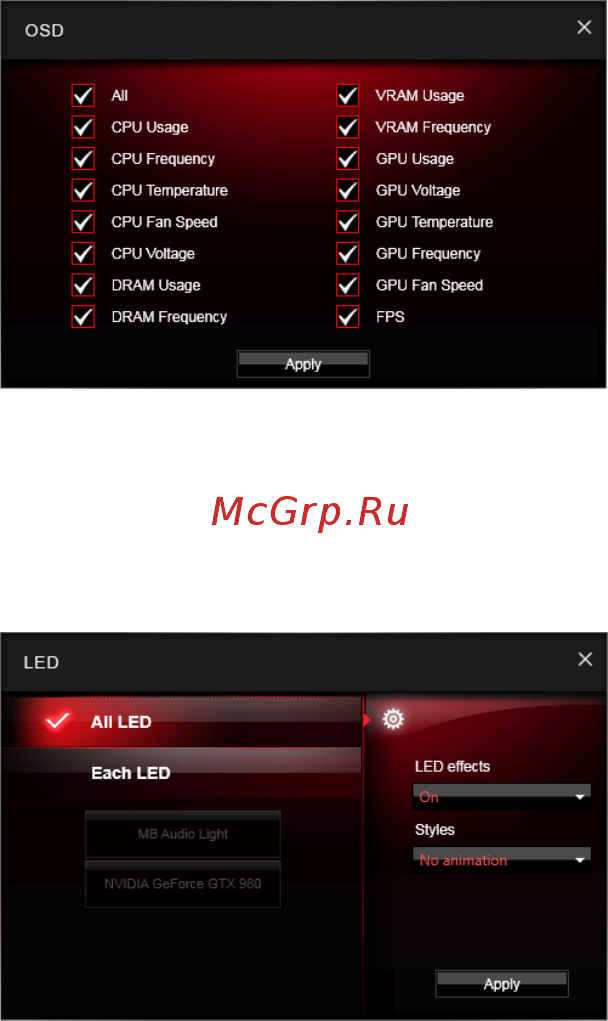

OSD Setting Panel
Use the OSD setting panel to specify information within on-screen display (OSD).
y Apply Button - allows you to accept selections.
LED Effect
LED Effect allows you to control LED lights on your motherboard.
y All LED - controls all LEDs on your motherboard.
y Each LED - separately controls each segment of LEDs on your motherboard.
y LED effects - switches LEDs on or off.
y Styles - select the LED style from the drop-down list.
y Apply Button - applies LED Effect settings to LEDs.
