ASRock Z270 SuperCarrier [31/107] English
![ASRock Z270 SuperCarrier [31/107] English](/views2/1307877/page31/bg1f.png)
25
English
Z270 SuperCarrier

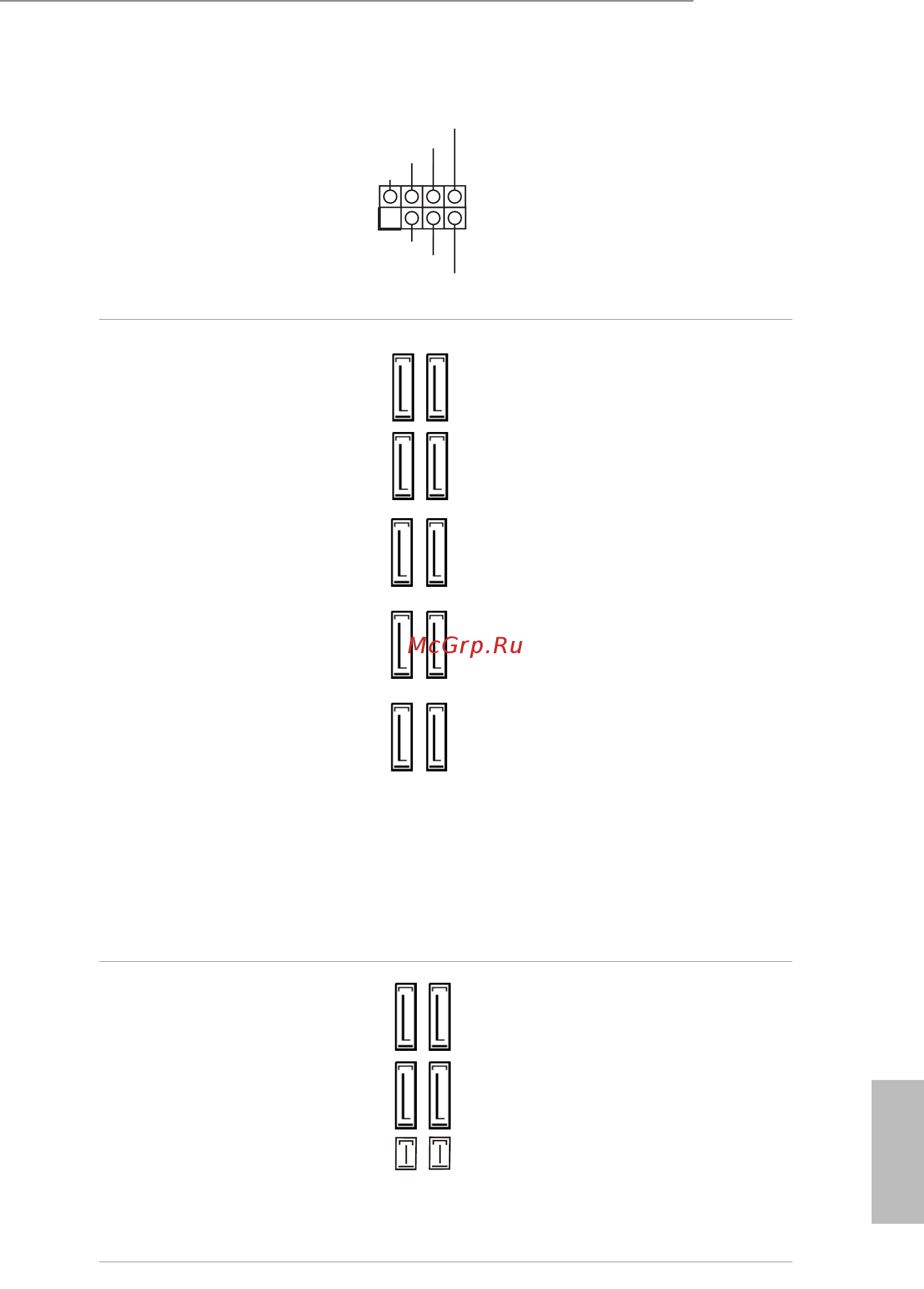

Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.8, No. 18)
Please connect the
chassis power LED and
the chassis speaker to this
header.
Serial ATA3 Connectors
(SATA_EXP0_1:
see p.8, No. 11)
(SATA3_4_5:
see p.8, No. 12)
(SATA3_A1_A2:
see p.8, No. 13)
(SATA3_A3_A4:
see p.8, No. 14)
ese ten SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
* If M2_1 is occupied by
a SATA-type M.2 device,
SATA3_0 will be disabled.
* M2_2, SATA3_4 and
SATA3_5 share lanes. If
either one of them is in
use, the others will be
disabled.
* If M2_3 is occupied by
a SATA-type M.2 device,
SATA3_3 will be disabled.
* To minimize the boot
time, use Intel® Z270
SATA ports (SATA3_0)
for your bootable devices.
Serial ATA Express
Connectors
(SATA_EXP0_1:
see p.8, No. 11)
Please connect either
SATA or PCIe storage
devices to these
connectors.
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
SATA3_A1 SATA3_4
SATA3_5SATA3_A2
SATA3_A3
SATA3_A4
SATA3_0SATA3_1
SATA3_2SATA3_3
SATA_EXP_0
SATA_EXP_1
SATA3_0SATA3_1
SATA3_2SATA3_3
