ASUS WS C422 PRO/SE
1-5
Chapter 1
1.1.4 System memory
Themotherboardcomeswitheight(8)DDR4(DoubleDataRate4)DualInlineMemory
Modules(DIMM)slots.
ADDR4moduleisnotcheddifferentlyfromaDDR,DDR2orDDR3module.DONOTinstall
aDDR,DDR2orDDR3memorymoduletotheDDR4slot.

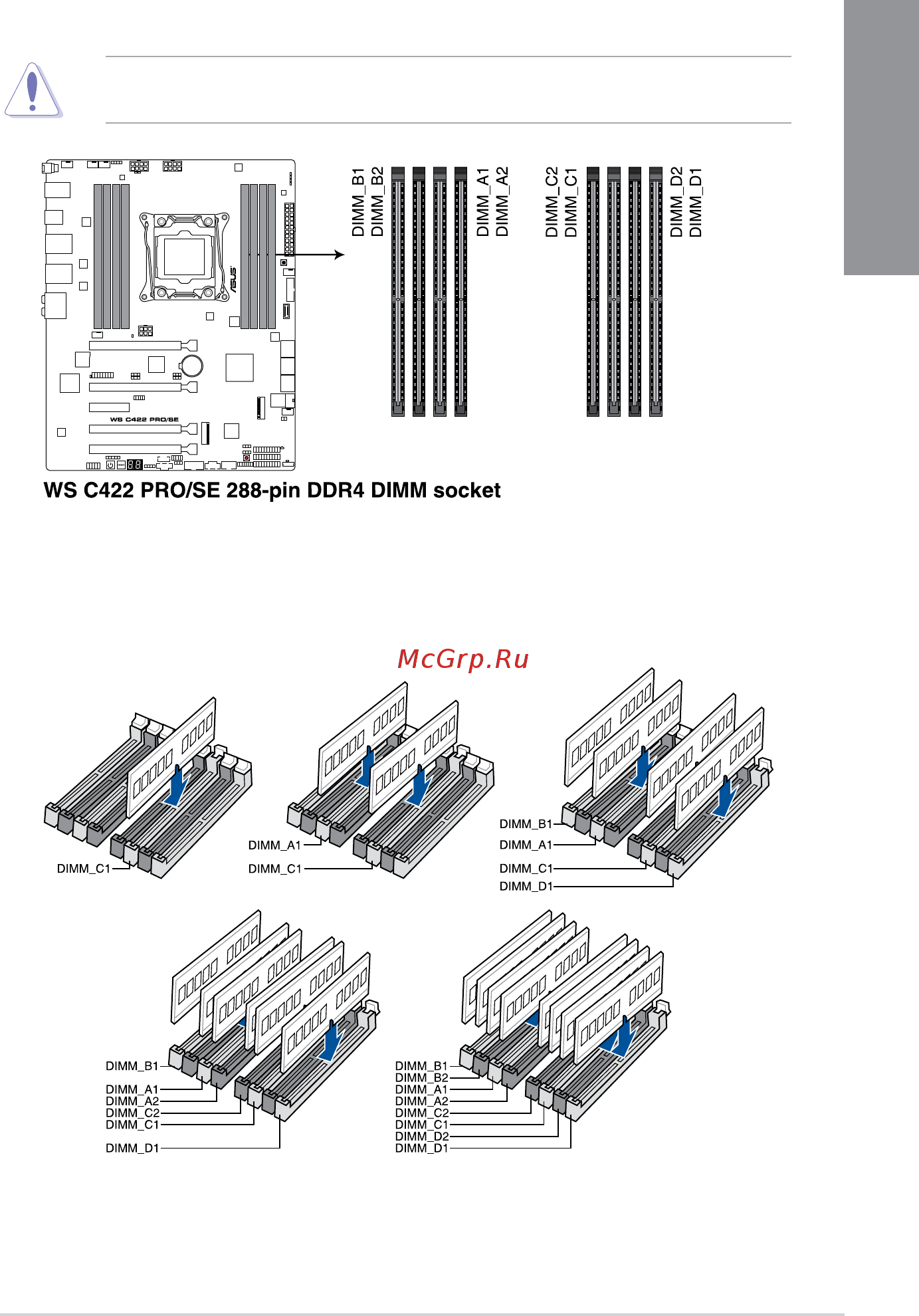

Recommended memory configurations
Intel
®
Skylake-W Series Processors
