Asus PRIME A320M-A [13/27] Rear panel connectors

ASUS PRIME A320M-A

1-5

LAN port

Speed

LED

Activity Link

LED

Activity/Link LED Speed LED

Status Description Status Description

Off No link OFF 10Mbps connection

Orange Linked ORANGE 100Mbps connection

Orange

(Blinking)

Data activity GREEN 1Gbps connection

Orange

(Blinking then

steady)

Ready to wake

up from S5 mode

1. PS/2 Mouse (green) port. This port is for a PS/2 mouse.

2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other

VGA-compatible devices.

3. USB 3.1 Gen 1 ports. These two 9-pin Universal Serial Bus (USB) ports connect to

USB 3.1 Gen 1 devices.

• USB 3.1 Gen 1 devices can only be used for data storage.

• Due to the design of AMD AM4 series chipset, all USB devices connected to the USB

2.0 and USB 3.1 Gen 1 ports are controlled by the xHCI controller.

• We strongly recommend that you connect USB 3.1 Gen 1 devices to USB 3.1 Gen 1

ports for faster and better performance from your USB 3.1 Gen 1 devices.

1 4 5

311

6 7

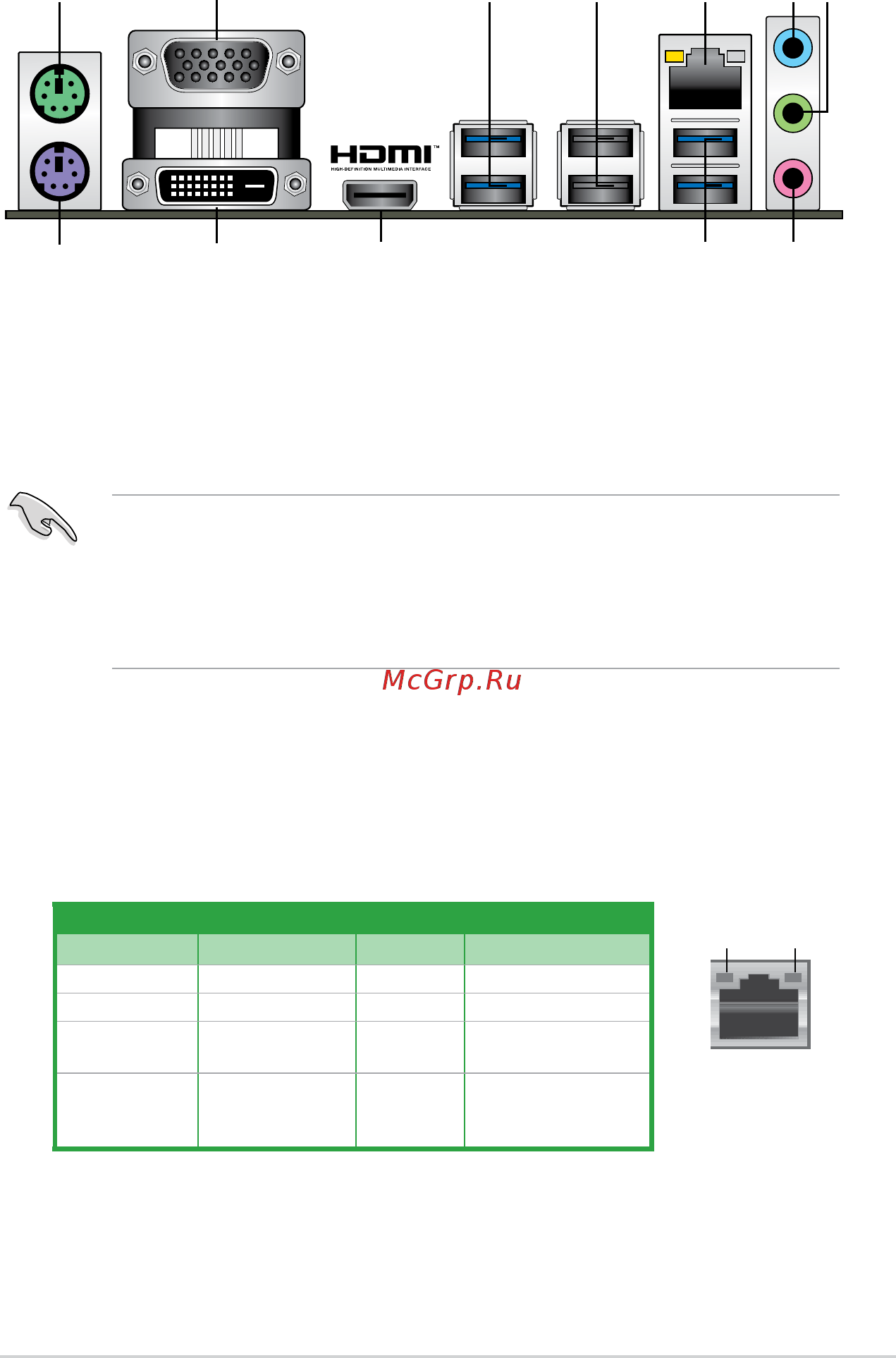

1.2.2 Rear panel connectors

4. USB 2.0 ports. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1

devices.

5. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)

through a network hub.

LAN port LED indications
