Asus PRIME A320M-A [20/27] Advanced mode
![Asus PRIME A320M-A [20/27] Advanced mode](/views2/1307914/page20/bg14.png)
Conguration
elds
Menu bar
General helpSub-menu items
Menu items
Scroll bar
Last modied
settings
Language
Hot Keys
MyFavorite
Q-Fan control
Goes back
to EZ Mode
Displays the CPU temperature, CPU
and memory voltage output

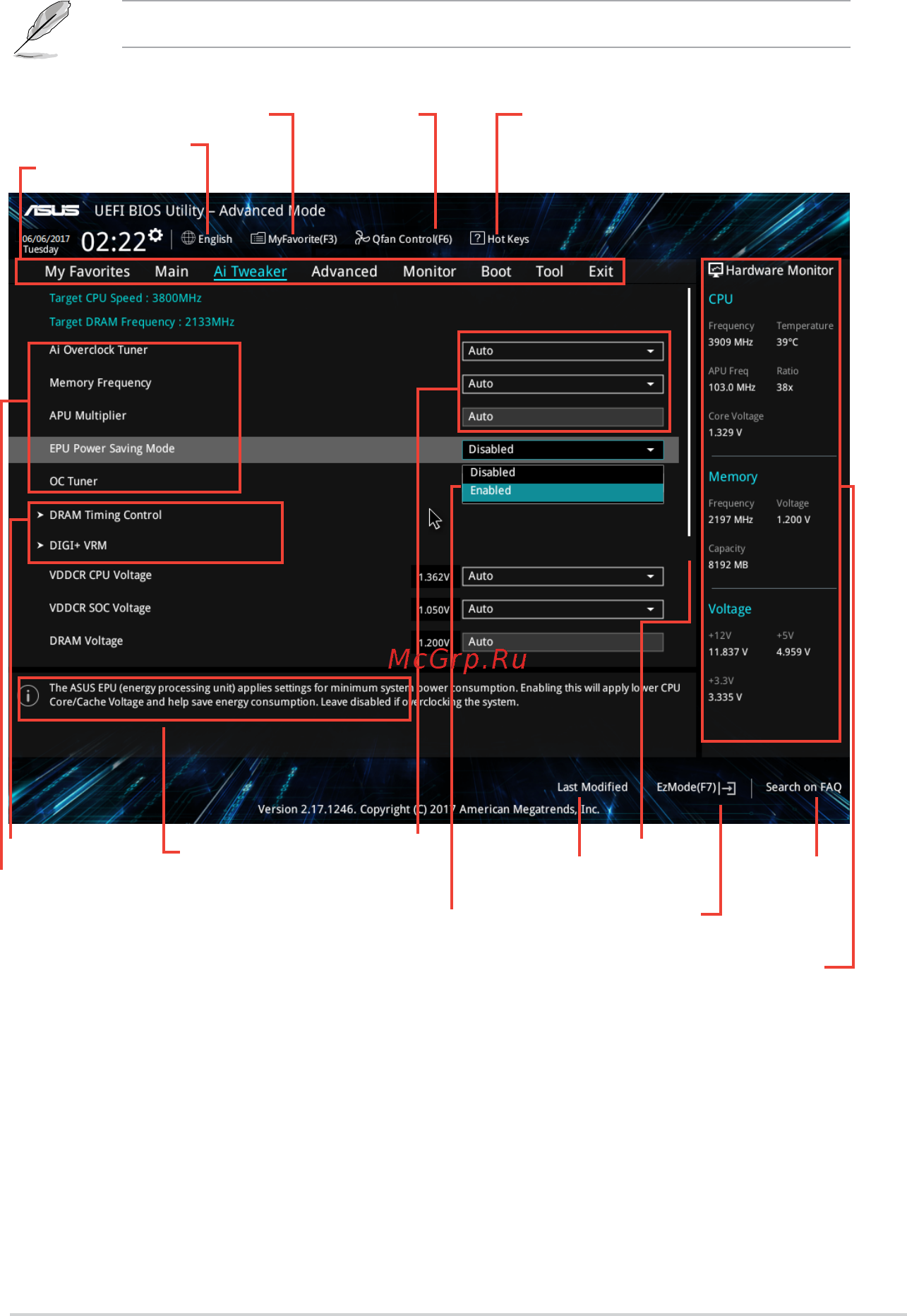

Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to congure the
BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To access the EZ Mode, click EzMode(F7) or press <F7>.
Popup window
Search on
FAQ
ASUS PRIME A320M-A
2-3
