Advanced Mode

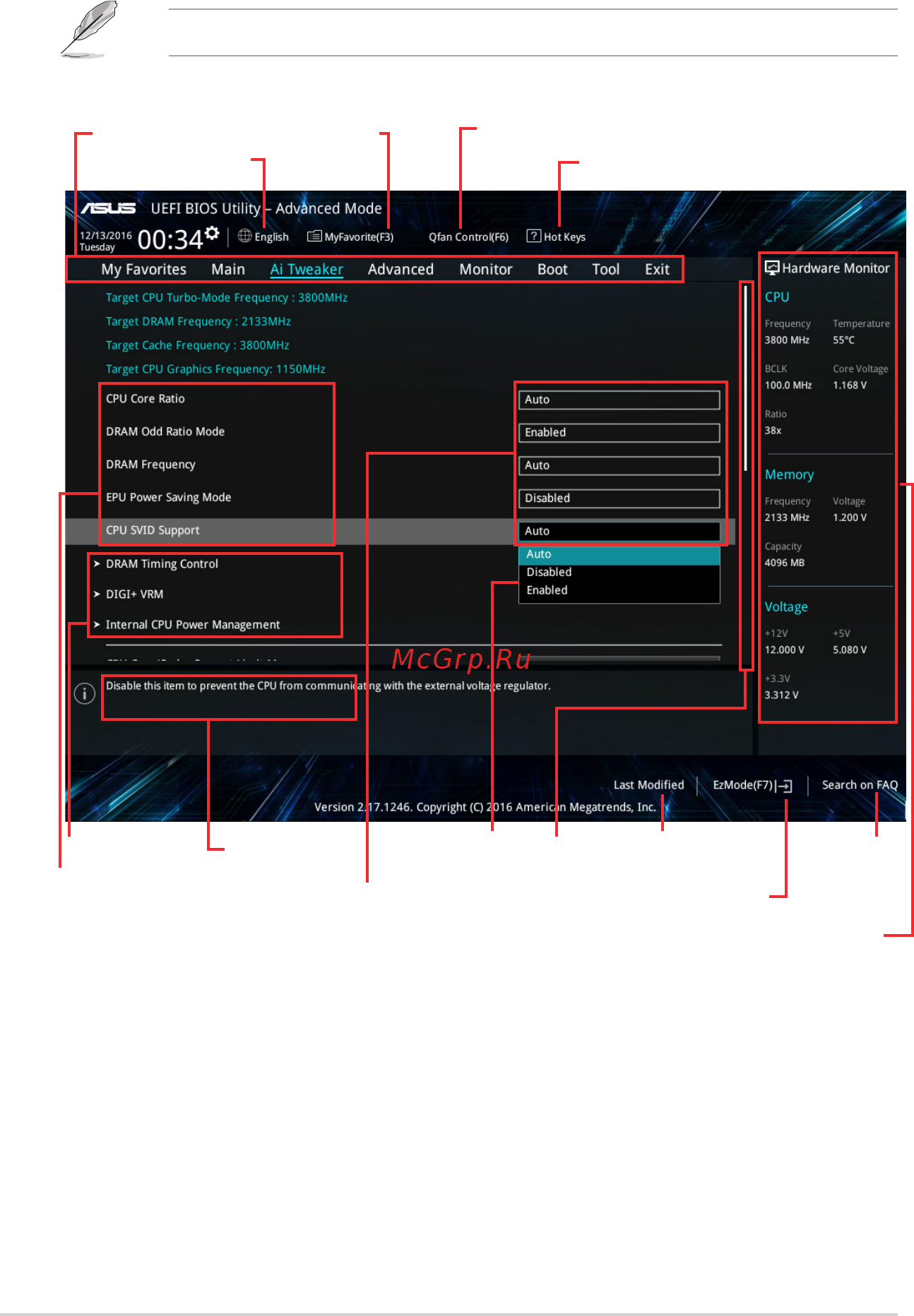

The Advanced Mode provides advanced options for experienced end-users to congure the
BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To access the EZ Mode, click EzMode(F7) or press <F7>.
Pop-up window
Conguration
elds
Menu bar
General helpSub-menu item
Menu items
Scroll bar
Last modied
settings
Language
Hot Keys
Q-Fan control
Goes back to EZ Mode
Displays the CPU temperature, CPU and
memory voltage output
MyFavorite
Searches
FAQ
ASUS H110M-F2-3
