q
In the event that the appliance is damaged, contact the
supplier immediately before connecting to the mains.
q
The floor at the site must be flat and level.
q
Do not install the appliance in a location where it is exposed
to direct radiation of the sun, next to a cooker, heater and
similar.
q
Do not install the appliance alone: it is best to work together
with two or more people.
q
The more R 600a refrigerant there is in the appliance, the
larger the room in which the appliance is standing needs to
be. In rooms that are too small, a flammable mix of gas and
air may be created if there is a leak. According to the EN 378
standard, every 11 g of R 600a refrigerant requires at least
1 m
3
space in the room for the appliance. The amount of
refrigerant in your appliance is on the type plate inside the
appliance.
q
If the appliance is installed in a very damp environment,
condensed water may form on the outside of the appliance.
Always make sure that there is good ventilation - both at air
inlet and outlet - at the site of installation.
If the transport lock is inserted on the door:
u
Pull off red transport lock.
If the transport lock is screwed onto the door:
u
Unscrew red transport lock.
Close the freed retaining hole
with plugs (60).
After installation:
u
Remove protective films, adhesive tapes and transport lock
parts etc.
Note
u
Clean the appliance (see Operating Instructions,
Chapter "Cleaning the appliance").

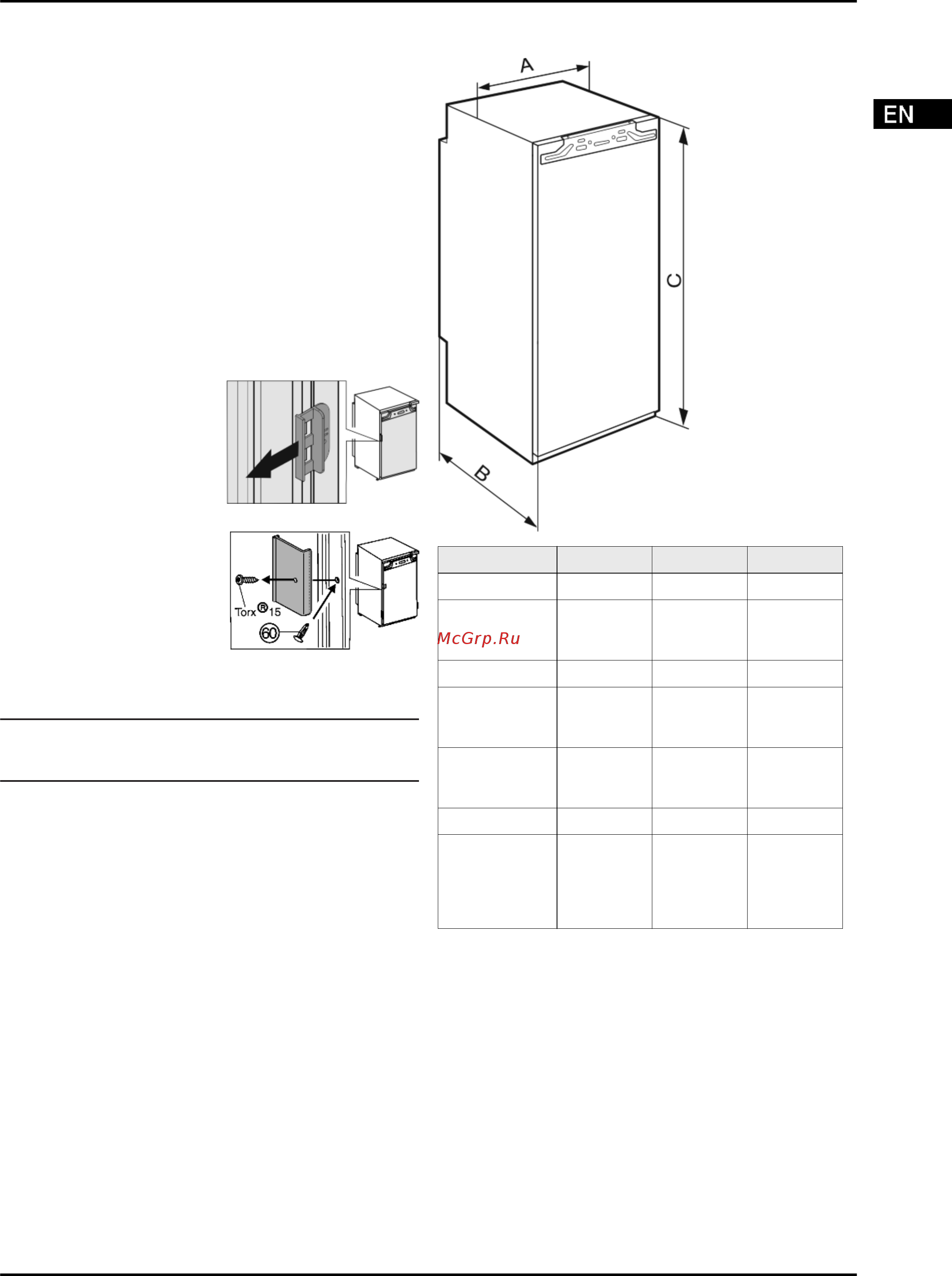

4 Appliance dimensions
Fig. 1
A (mm) B (mm) C (mm)
IG 10.., IGN 10.. 559 544 712
IK 16.., IKP 16..,
IG 16..,
IGN 16.., IB 16..
559 544 872
IK 19.., IKB 19.. 559 544 1022
IK 23.., IKP 23..,
IKB 23..,
IKBP 23..
559 544 1218
IK 27.., IKB 27..,
IKBP 27..,
IGN 27..
559 544 1395
IKBP 29.. 559 544 1572
IK 35.., IKF35..,
IKB 35..,
IKBP 35..,
IGN 35..,
SIGN 35..
559 544 1770
5 Recess dimensions
The appliance is built-in and therefore completely enclosed by
a kitchen unit. The kitchen unit concerned must be built exactly
to the prescribed dimensions and allow for sufficient ventilation,
both at air inlet and outlet, to ensure proper appliance opera-
tion.
Appliance dimensions
* Depending on model and options 3
