Liebherr IKB 2360 [6/18] Water connection

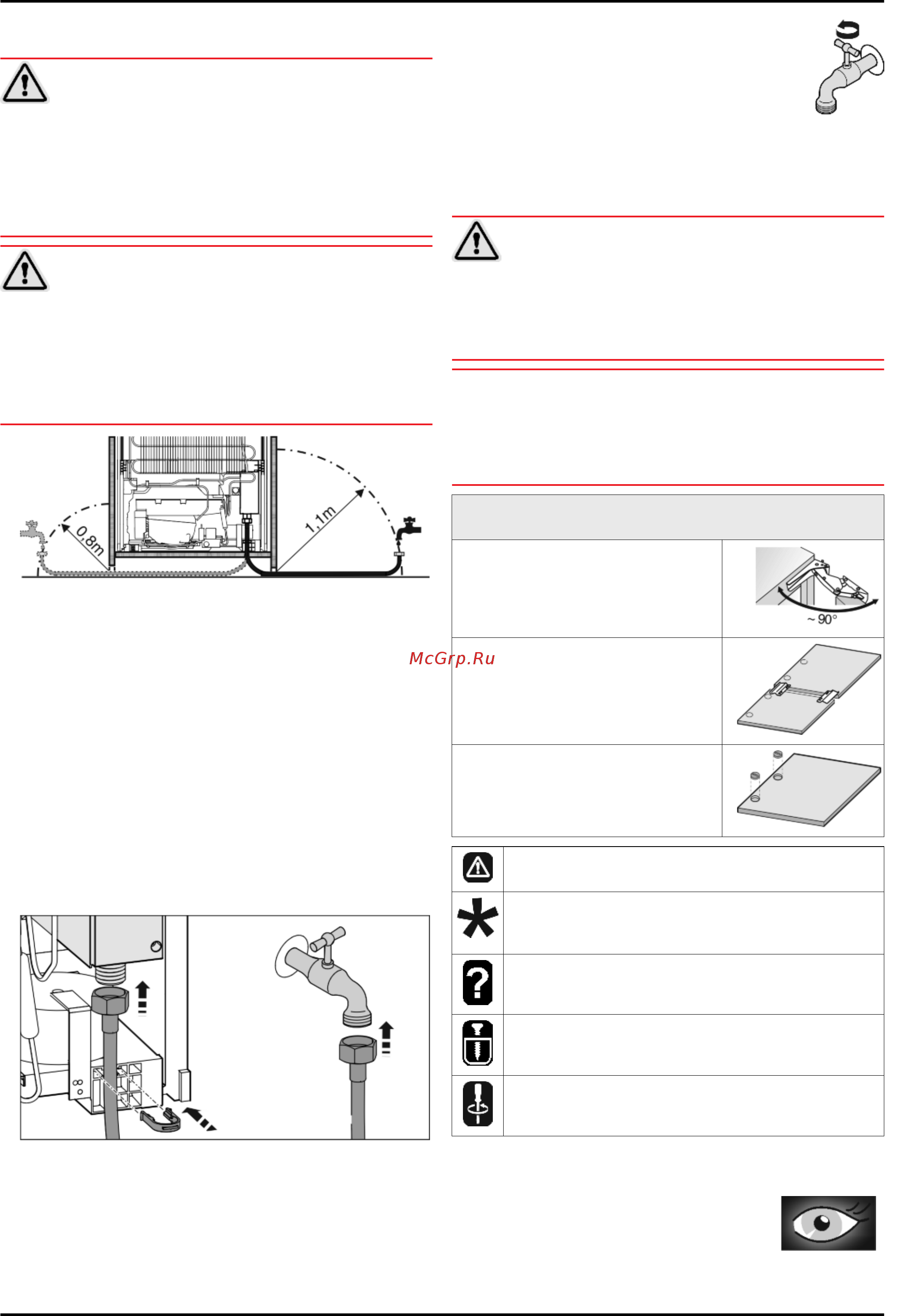

![Liebherr IK 1964 [6/18] Water connection](/views2/1317311/page6/bg6.png)
9 Water connection*
WARNING
Danger of electric shock!
u
Disconnect the appliance by unplugging it before you
connect it to the water line.
u
Shut off the water supply before you connect the water feed
lines of the IceMaker.
u
The connection to the drinking water system may be carried
out only by a qualified gas fitter and plumber.
WARNING
Risk of poisoning!
u
The water quality has to comply with the drinking water ordi-
nance of the respective country (e.g. 98/8
u
Connect to the drinking water supply only.
u
The IceMaker serves exclusively for making ice cubes in
household quantities and has to be operated with water suit-
able for the purpose.
Fig. 5
- The water pressure has to be between 0.15 MPa and
0.6 MPa (1.5 bar - 6 bar).
- The water supply to the appliance must be via a cold water
pipe which withstands the operating pressure and complies
with the hygiene regulations.
Use the accompanying stainless steel hose (1.5 m). Do not
reuse old hoses. A 3 m hose is available from the customer
service department and has to be fitted by an expert.
In the hose connecting piece is a sieve with seal.
- Between the hose and the domestic water connection there
has to be a stopcock to interrupt the water supply in case of
need.
- All the fixtures and fittings used for water supply have to
comply with the applicable regulations of the respective
country.
- Do not damage or kink the water inlet pipe when installing
the appliance.
Fig. 6
The solenoid valve is at the bottom back of the appliance. It has
a metric R3/4 connecting thread.
Connect the stainless steel hose:
u
Connect the fitting with the strainer to the stopcock.
u
Connect the other end of the hose to the solenoid valve.
u
Fix the stainless steel hose to the housing with the locking
hook.
u
Open the stopcock of the water supply and
check that the entire water system is leakproof.
Before initial use:
u
Have the water pipe bled of air by the proper
expert.
10 Installing the appliance in the
recess*
WARNING
Fire hazard from short-circuiting!
u
When pushing the appliance into the recess, take care not to
crush, jam or damage the mains power cable.
u
Do not operate the appliance with a defective mains power
cable.
NOTICE
Risk of damaging the hinges!
If when being pushed the appliance is held by the door, the
hinges could be damaged.
u
When pushing or otherwise moving the appliance, always
hold it by the main body.
For installation in the recess, the following accessories
are available from Customer Service:
Set for limiting the door opening angle
to 90°
Set for fitting split furniture front
panels
Set with covers for concealed hinges
There is a risk of injury during this stage! Please
observe the safety instructions!
The instructions apply to several models. Only carry
out this step if the appliance is equipped with the
corresponding feature.
Choose between the alternatives given.
Loosen the screws only, do not undo them all the way.
Check the screws and tighten if necessary.
u
Please take note of the information in the symbols key
during installation.
Install the appliance in the recess as shown at
the end of the booklet.
Water connection
6 * Depending on model and options
