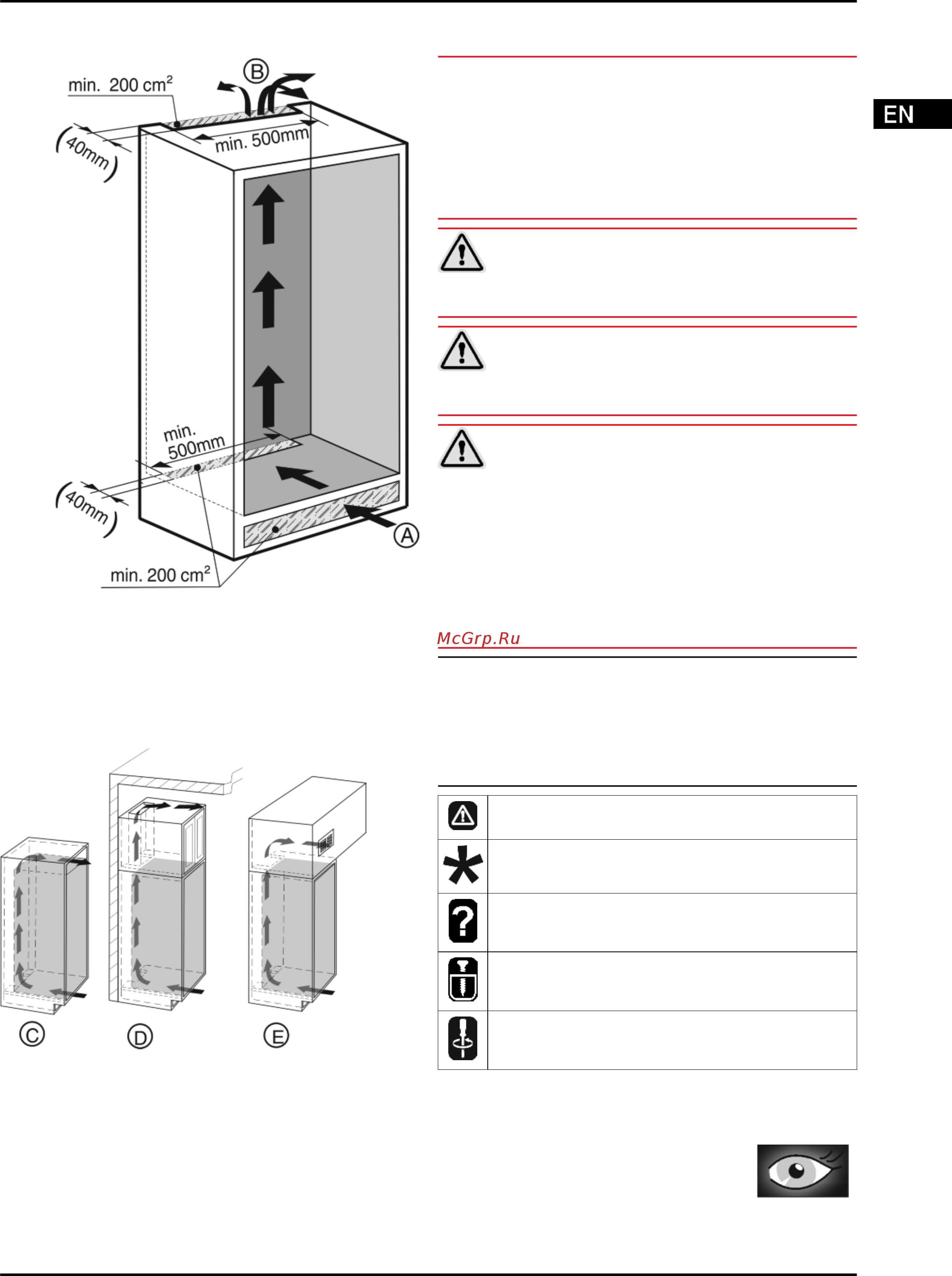

7 Ventilation of the kitchen unit
Fig. 3
-
There must be an effective ventilation shaft of at least
200 cm
2
per appliance at the air inlet
Fig. 3 (A)
and outlet
Fig. 3 (B)
vent.
-
The principle applies that the larger the ventilation shaft, the
more energy-saving the operation of the appliance.
-
The depth of the ventilation shaft at the back of the cabinet
must be min. 40 mm.
Fig. 4
-
The upper ventilation shaft can either be positioned directly
above the appliance with an optional ventilation grille
Fig. 4 (C)
, close to the ceiling above the unit
Fig. 4 (D)
or as
an air outlet opening in a false ceiling
Fig. 4 (E)
.
8 Changing over door hinges
NOTICE
Risk of condensation damage for Side-by-Side appliances!
Certain appliances can be set up as Side-by-Side combina-
tions (two appliances next to each other).
If your appliance is a Side-by-Side (SBS) appliance:
u
Set up the SBS combination in accordance with the
enclosed document.
If the positioning of the devices is stipulated:
u
Do not change the door hinges over.
CAUTION
Risk of injury if soft stop contracts!
u
Carefully remove the soft stop mechanism.
CAUTION
Risk of injury if hinges fold!
u
Leave hinges open.
WARNING
Risk of injury due to the door dropping out!
If the fastening parts are not screwed into place firmly enough,
the door may drop out. This may lead to severe injuries. What is
more, the door may not close and therefore the appliance may
fail to cool properly.
u
Screw the hinges and the ball journal of the soft stop mecha-
nism firmly into place, with 4 Nm.
u
Screw the holder of the soft stop mechanism firmly into
place, with at least 3 Nm.
u
Check all of the screws and retighten if necessary.
Note
The door hinges can only be changed over if there is sufficient
space towards the top to pull out the hinge mounting bracket
and to mount it again on the other side. This is generally not the
case after installation in the recess.
u
Change the hinges over before the appliance is installed in
the recess.
There is a risk of injury during this stage! Please
observe the safety instructions!
The instructions apply to several models. Only carry
out this step if it is relevant for your appliance.
Choose between the alternatives given.
Loosen the screws only, do not undo them all the way.
Check the screws and tighten if necessary.
u
While changing over the door hinges, observe the safety
instructions above and also the information in the symbols
key.
Change the hinges over as shown at the end
of the book.
Ventilation of the kitchen unit
* Depending on model and options 5
