Faber ORIZZONTE PLUS VETRO EG8 X/VBK A90 LOGIC (110.0157.147) [8/36] Flue assembly

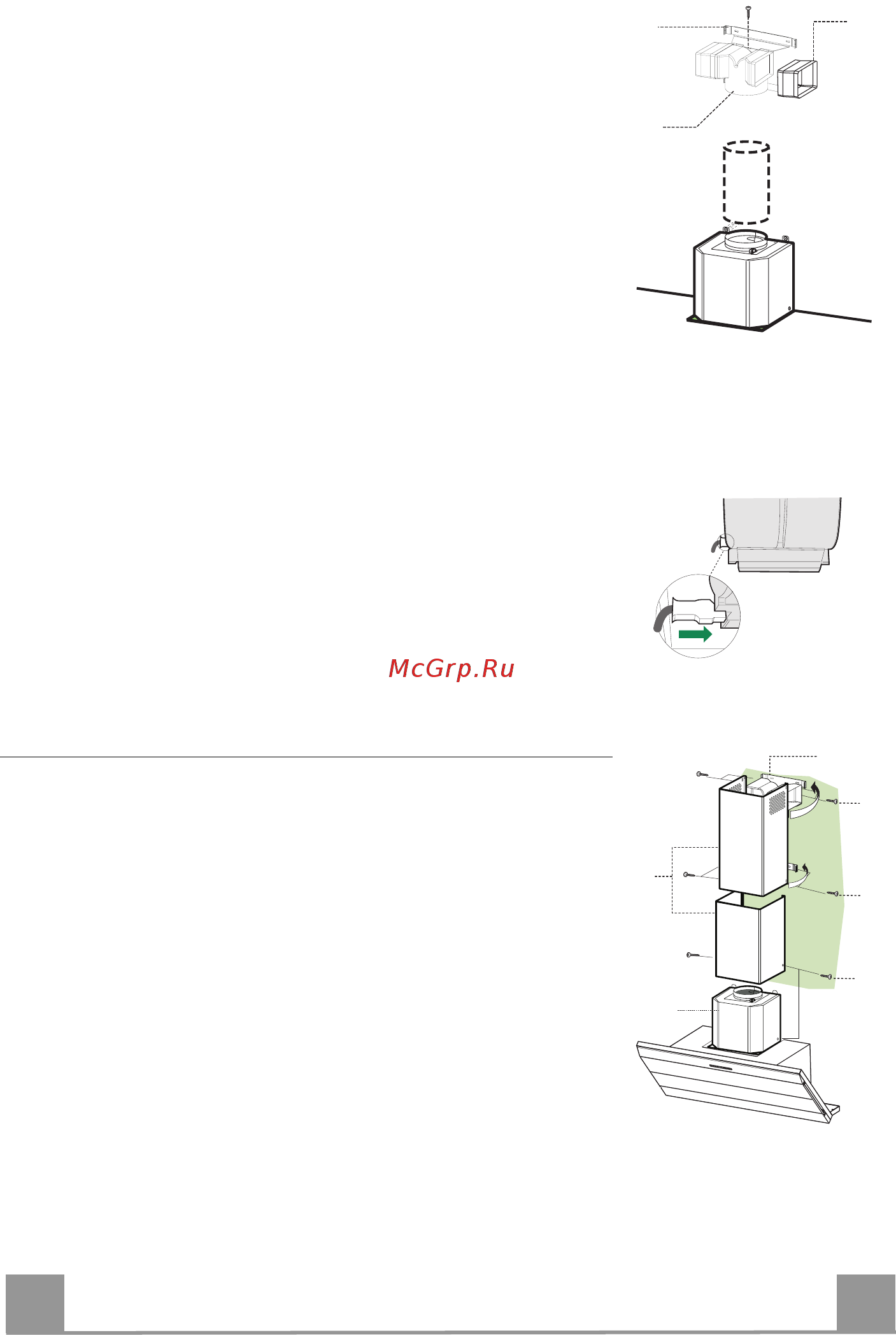

RECIRCULATION VERSION AIR OUTLET

• Insert the connection extension pieces laterally 14.1 in connec-

tion 15.

• Insert the Connector 15 into the Support bracket 7.3 and fix it

with a screw.

• Make sure that the outlet of the extension pieces 14.1 is hori-

zontally and vertically aligned with the chimney outlets.

• Connect the air outlet connection 15 to the hood body outlet

using either a flexible or rigid pipe ø 150 mm, the choice of

which is left to the installer.

• Ensure that the activated charcoal filters have been inserted.

ø 150

14.1

7.3

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch hav-

ing a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance) being

sure that the connector of the feeding cable is correctly inserted

in the socket placed on the side of the fan.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them

behind the brackets 7.2.1, making sure that they are well

seated.

• Secure the sides to the brackets by using the 4 screws 12c (2,9

x 9,5) supplied.

• Make sure that the outlet of the extensions pieces is aligned

with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them be-

tween the upper flue and the wall, making sure that they are

well seated.

• Fix the lower part laterally to the hood body by using the 2

screws 12c (2,9 x 9,5) supplied.

7.2.1

12c

2.1

2.2

12c
