Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and
the timer LEDs).
Pushbutton +
Press to increase motor speed
Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and
the timer LEDs).
(In the 4-speed version the pushbutton + blinks. The fourth speed remains on for a set
duration of time. After 7 minutes the motor returns to the third speed).
Mode pushbutton
Function: it turns hood motor on and off.
The function “desired speed” enables to start the motor at the speed that was selected
before the hood was last turned off.
Timer and ‘filter clogged’ alarm pushbutton
- This function allows the automatic turning off of the hood after running for 15 minutes at
the speed previously set (the pushbutton shows a flickering light).
- After about 30 hours of running the pushbutton indicates the need for washing the metal
filters (the pushbutton shows a solid red light). To disable the alarm press the pushbutton
for a few seconds until the red light turns off. Then turn the hood off and on again to check
that the alarm has disappeared.

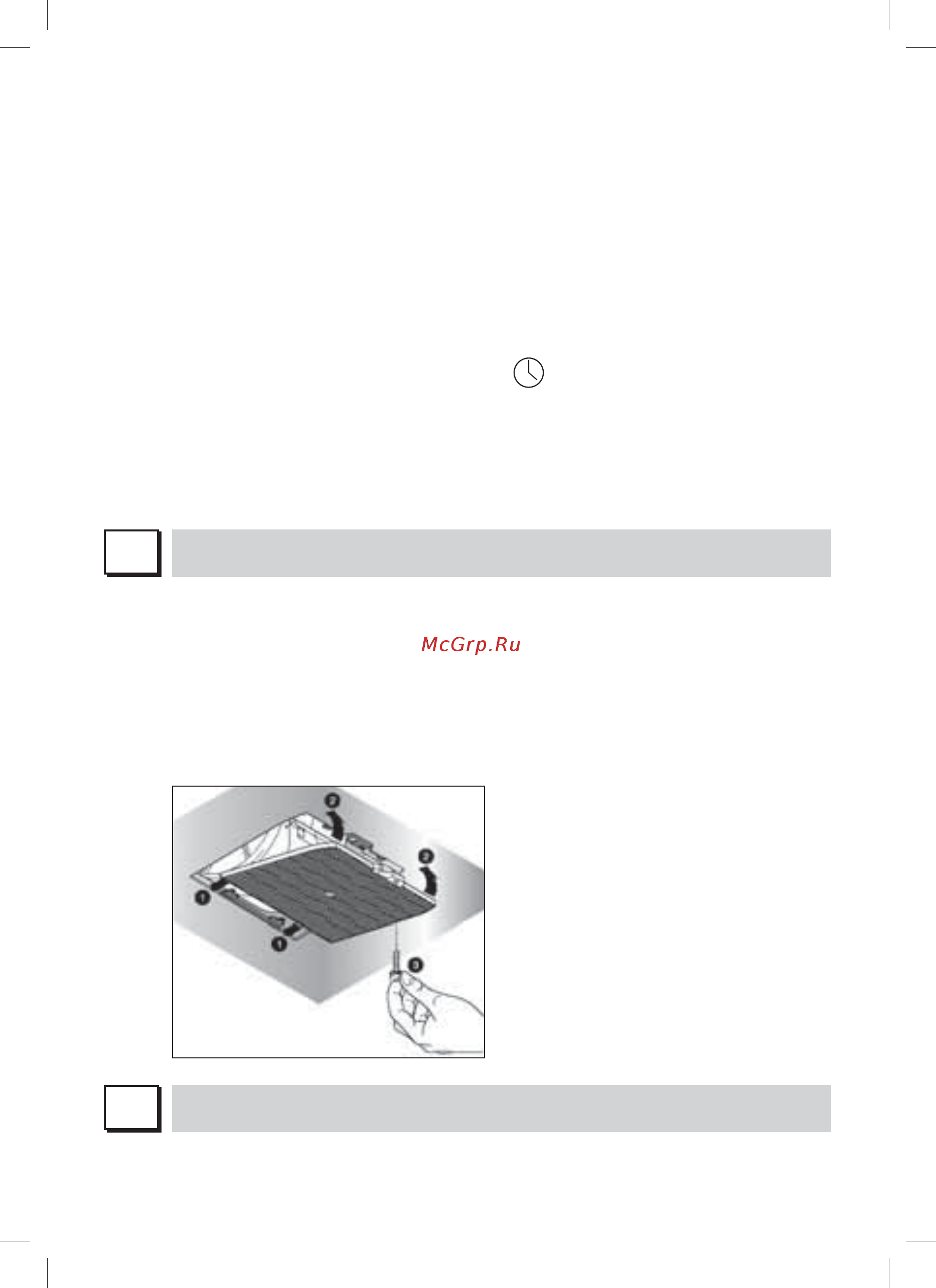

FILTERS REMOVING AND REPLACING’S INSTRUCTIONS
H
1. REMOVE METAL FILTERS AND PANEL PERIMETER SUCTION PANELS
To remove anti-grease metal filters (FM), open the perimeter suction panel (AP1) and then
use the handle (A) (see fig. H1-1). To remove the panels (AP1) and (AP2) see fig. H1-2.
2. REMOVE ACTIVATED CARBON FILTERS
To assemble or replace the activated charcoal filters, remove the metal filters (FM) as
indicated in figure H1-1 and follow the instructions in figure H2.
To order new carbon filters contact your distributor/dealer.
ONLY FOR ITALY: Download the specific filter order form from www.falmec.com (access the
drop-down assistance menu).
Fig. H2
LIGHTING ASSEMBLY AND REPLACEMENT
I
Replacement of the fluorescent tube:
a) Disconnect the hood from the power supply;
