Polaris ORION S 5.5 (душ) [16/21] Special recommendations

Special recommendations

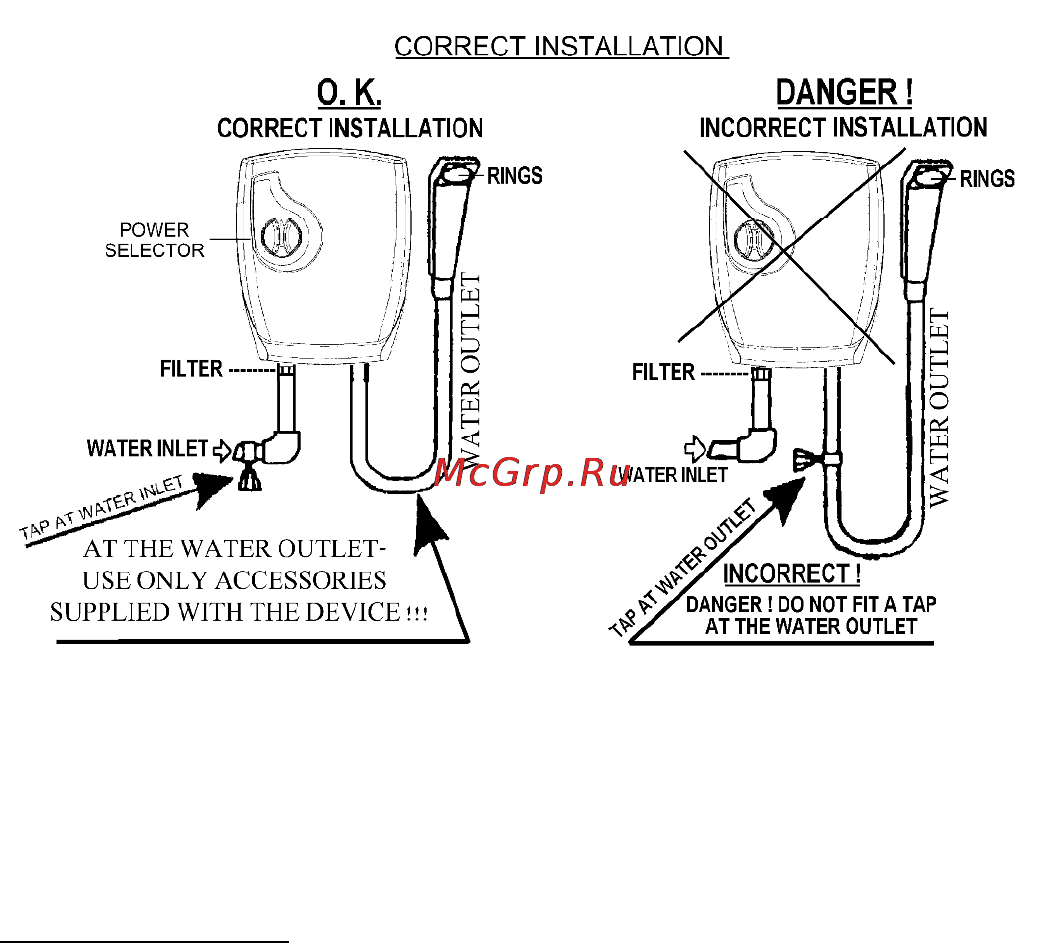

Scheme 2. Water heater setting

• The cold water input is marked by the blue color

• The hot water output is marked by the red color

1. The cover should be removed from the base. First unscrew the four screws on the exterior

circumference of the heater and then remove the cover.

2. Insert (without connecting) the electrical cable into the heater through one of the channels

intended for this purpose, after opening the thin panel in the base beyond the cable.

3. Mount the heater on the wall in its predetermined place, straight and level, with the water

inlets and outlets facing downwards. To do so, mark the 4 spots for the holes on the wall and

drill the holes using a 6 mm drill; place the enclosed splay-winged, plastic pins ("dibbles")

into each hole and connect the heater firmly to the wall using the 4 enclosed screws.

4. Join the water inlet pipe to the water heater and be sure that there are no leakages. In the

water heater of the type "ORION" do not set up a valve at the water outlet or any other shut

off devices.

5. The water heater is connected to a separate three conductor round cable with the diameter 4

mm and fixed automatic load control for 25 amperes. The threads of the wire are connected

according to the colors. Watch carefully! A yellow grounding wire must be connected right

and sharply. It is very important to use special heat resistant conductors because the

temperature can be higher than 50 Celsius above zero.

6. The water heater is connected to a single phase power supply through the double -contact

switch. The following switch is set separately from the water heater. The water heater must

have a very strong grounding, the grounding lead must be painted in a definite color not to

mix with the other leads.

ATTENTION PLEASE! First you should fill in the vacuum bottle with the water, the

water heater is full when the water will flow continuously from the shower, and only

then switch the water heater on. If you do not do this, the heating unit can blast or the

plastic parts can be burnt or the appliance can stop working.

7. Check how the water heater works by letting the water run through it, selecting the different

positions of power selector: 1-2-3.

8. Put the cover on the back part of the water heater and fix it with 4 screws after you make

sure that there is no leakage, and the electric circuit is working correct. The cover installation
