NAME OF EACH PART

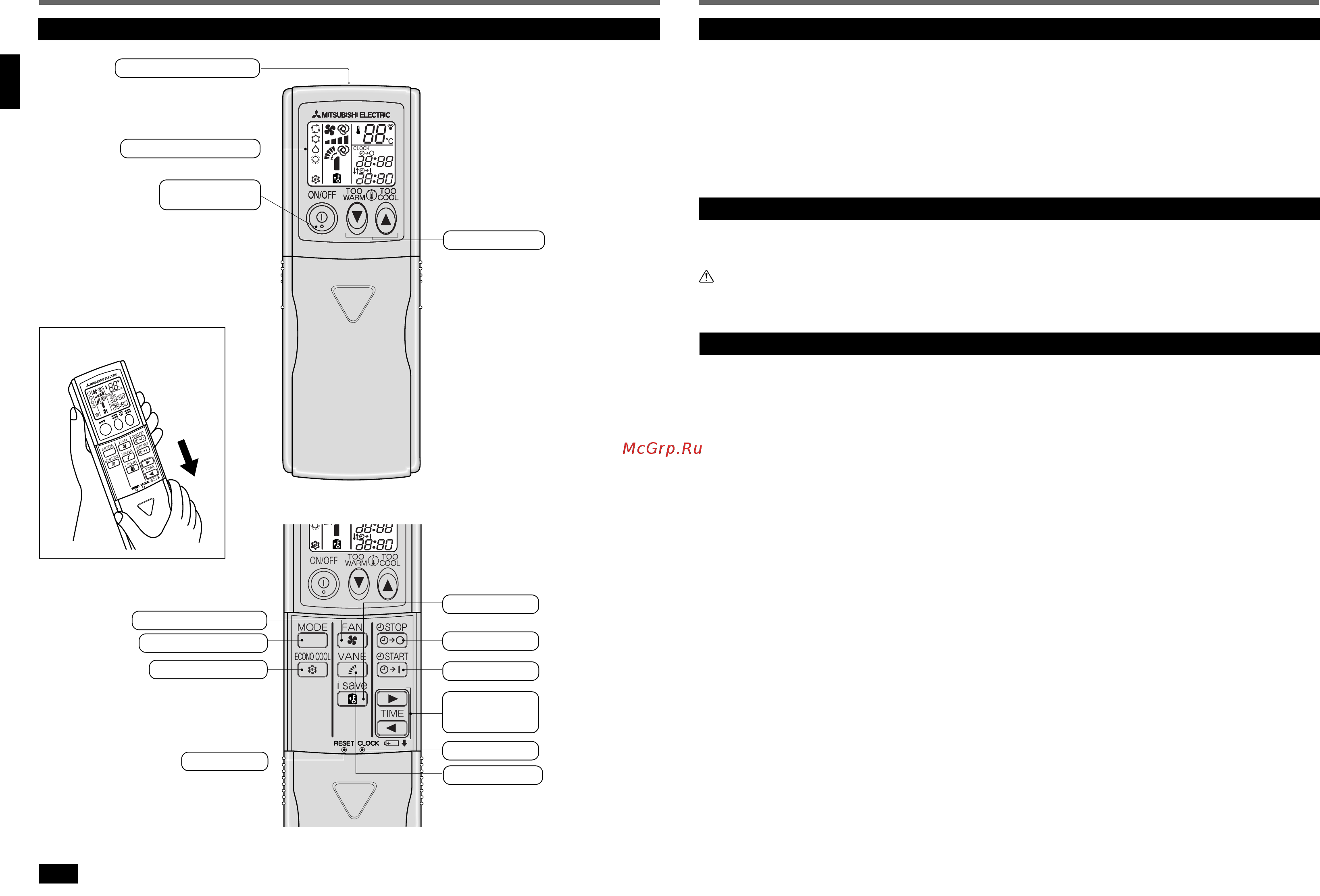

Remote controller

PREPARATION BEFORE OPERATION

Auto restart function

■

These models are equipped with an auto restart function. If you do not want to use this function,

please consult the service representative because the setting of the unit needs to be changed.

Auto restart function is ...

When the indoor unit is controlled with the remote controller, the operation mode, the set temperature and the fan speed are

stored in the memory. If a power failure occurs or the main power is turned off during operation, “Auto restart function” sets

automatically to start operating in the same mode as the one set with the remote controller just before the shut off of the main

power. (Refer to page 6 for details.)

Outdoor unit

■

Insert the power supply plug into the power outlet and/or turn the breaker on.

WARNING:

Remove dirt from the power supply plug and insert the plug securely.

If dirt adheres to the plug or insertion is incomplete, it may cause a fire or an electric shock.

Remote controller

■

Use the remote controller provided with the unit only. Do not use other remote controller.

Fan speed control button

Signal transmitting section

Operation display section

Operation select button

ECONO COOL button

On-timer button

CLOCK set button

TIME set buttons

Forward button

Backward button

Temperature buttons

Vane control button

Off-timer button

RESET button

(This diagram shows an overall view.)

ON/OFF (operate/

stop) button

Open the front lid.

i save button
