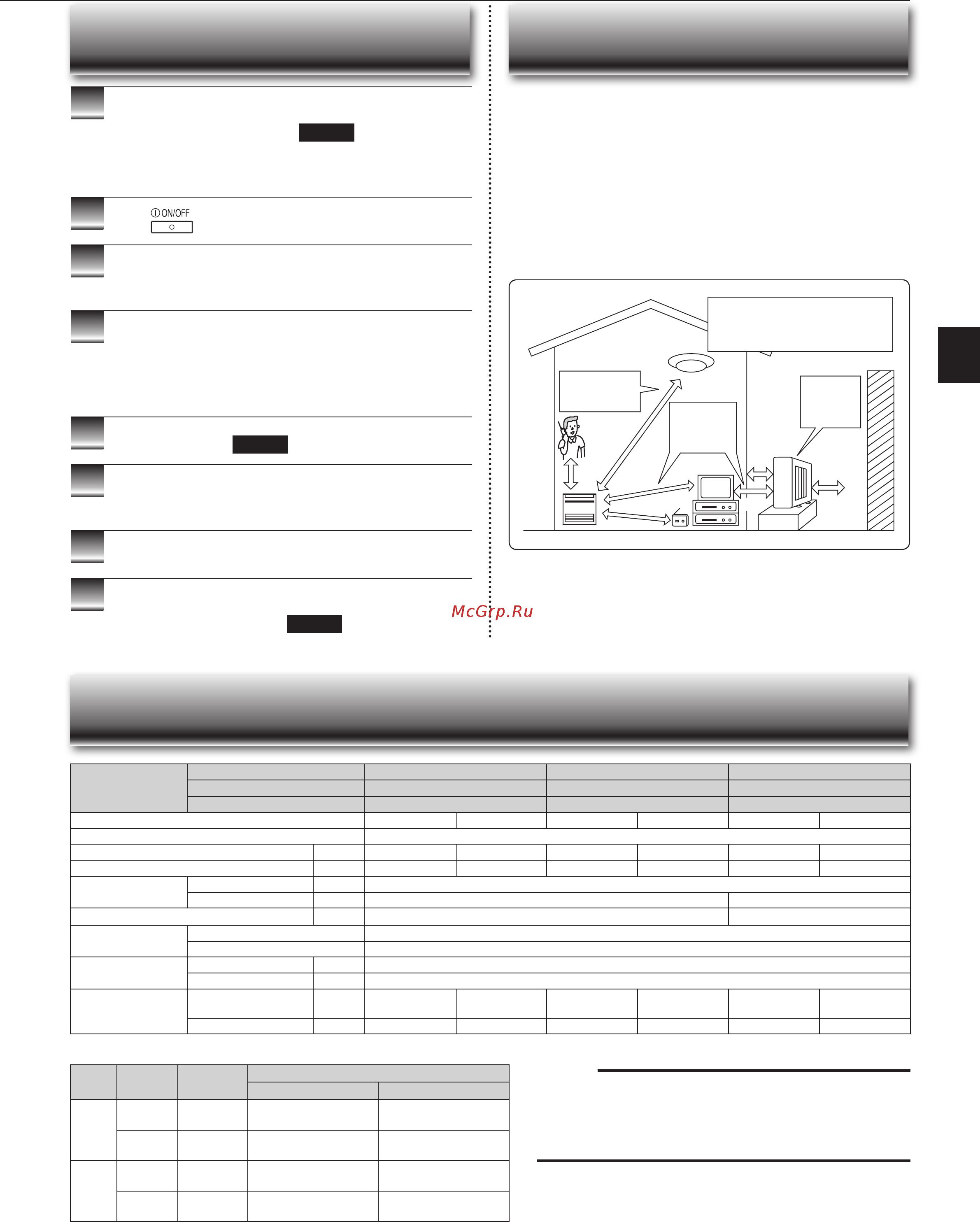

INSTALLATION PLACE AND
ELECTRICAL WORK
WHEN THE AIR CONDITIONER IS NOT
GOING TO BE USED FOR A LONG TIME
Installation place
Avoid installing the air conditioner in the following places.
• Where there is much machine oil.
• Salty places such as the seaside.
• Where sulfi de gas is generated such as a hot spring.
• Where oil is splashed or where the area is fi lled with oily smoke (such as cook-
ing areas and factories, in which the properties of plastic could be changed
and damaged).
• Where there is high-frequency or wireless equipment.
• Where the air from the outdoor unit air outlet is blocked.
• Where the operation sound or air from the outdoor unit does not bother the
house next door.
Electrical work
• Provide an exclusive circuit for the power supply of the air conditioner.
• Be sure to observe the breaker capacity.
If you have any questions, consult your dealer.
SPECIFICATIONS
To prevent the effects
of a fl uorescent lamp,
keep as far apart as
possible.
wall, etc.
Inverter-type
fl uorescent lamp
Keep a space
to prevent the
picture distortion
or the noise.
Radio
Well-
ventilated dry
place
TV
Cordless phone
or Portable
phone
3 m or
more
1 m
or more
The installation location of the outdoor unit should
be at least 3 m away from the antennas for TV sets,
radios, etc. In areas where the reception is weak,
provide greater space between the outdoor unit and
the antenna of the affected device if operation of the air
conditioner interferes with radio or TV reception.
1 m
or more
Model
Set name MFZ-KJ25VE MFZ-KJ35VE MFZ-KJ50VE
Indoor MFZ-KJ25VE MFZ-KJ35VE MFZ-KJ50VE
Outdoor MUFZ-KJ25VE (HZ) MUFZ-KJ35VE (HZ) MUFZ-KJ50VE (HZ)
Function Cooling Heating Cooling Heating Cooling Heating
Power supply ~ /N, 230 V, 50 Hz
Capacity kW 2.5 3.4 3.5 4.3 5.0 6.0
Input kW 0.54 0.77 0.94 1.10 1.41 1.61
Weight
Indoor kg 15
Outdoor kg 37 55
Refrigerant fi lling capacity (R410A) kg 1.10 1.50
IP code
Indoor IP 20
Outdoor IP 24
Permissible excessive
operating pressure
LP ps MPa 1.64
HP ps MPa 4.15
Noise level
Indoor (Super High/
High/Med./Low/Silent)
dB(A) 39/35/30/25/20 41/35/30/25/19 39/35/30/25/20 41/35/30/25/19 44/39/35/31/27 50/45/40/35/29
Outdoor dB(A) 46 51 47 51 49 51
100 mm
or more
(KJ25, 35/KJ50)
200/500 mm or
more
Indoor
Outdoor
MUFZ-KJ25/35/50VE MUFZ-KJ25/35/50VEHZ
Cooling
Upper limit
32°C DB
23°C WB
46°C DB
—
46°C DB
—
Lower limit
21°C DB
15°C WB
-10°C DB
—
-10°C DB
—
Heating
Upper limit
27°C DB
—
24°C DB
18°C WB
24°C DB
18°C WB
Lower limit
20°C DB
—
-15°C DB
-16°C WB
-25°C DB
-26°C WB
Note:
Rating condition
Cooling — Indoor: 27°C DB, 19°C WB
Outdoor: 35°C DB
Heating — Indoor: 20°C DB
Outdoor: 7°C DB, 6°C WB
Guaranteed operating range
DB: Dry Bulb
WB: Wet Bulb
1
Set to the highest temperature in manual COOL mode,
and operate for 3 to 4 hours. Page 4
• This dries the inside of the unit.
• Moisture in the air conditioner contributes to favorable conditions for
growth of fungi, such as mold.
2
Press
to stop the operation.
3
Turn off the breaker and/or disconnect the power sup-
ply plug.
4
Remove all batteries from the remote controller.
When using the air conditioner again:
1
Clean the air fi lter. Page 8
2
Check that the air inlet and outlet of the indoor and
outdoor units are not blocked.
3
Check that the earth is connected correctly.
4
Refer to the “PREPARATION BEFORE OPERATION”,
and follow the instructions. Page 3
En-10
JG79A955H01_en.indd 10 8/4/2014 3:00:36 PM
