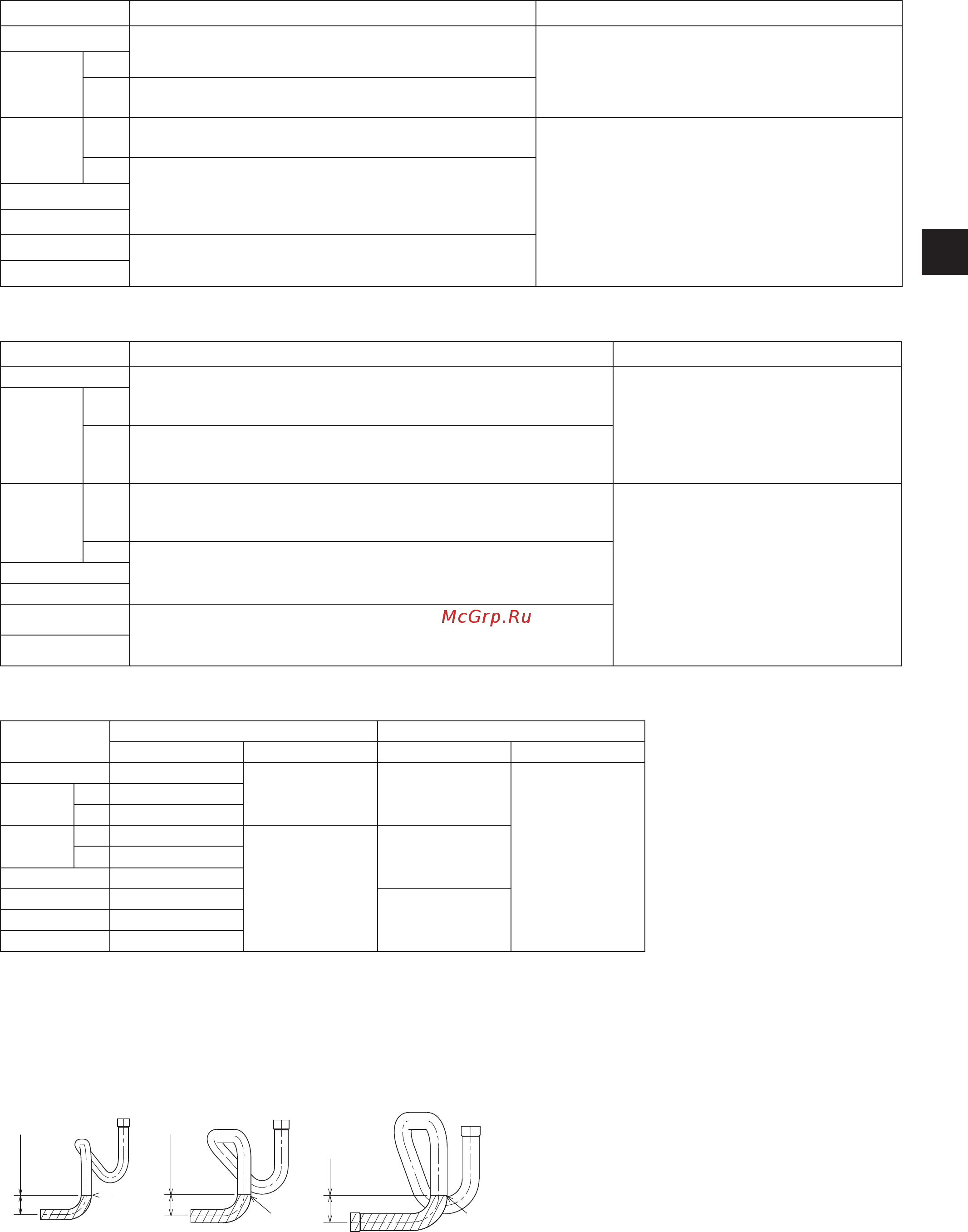

Mitsubishi Electric PUHY-EP450YLM-A [27/56] Severed section
![Mitsubishi Electric PUHY-EP450YLM-A [27/56] Severed section](/views2/1331562/page27/bg1b.png)
GB
GB-25
WT07281X03
・Connecting the on-site piping and the service valve piping
When routing the pipes through the front of the unit
Liquid side Gas side
EP200
Use the supplied connecting pipe ①.
Expand the end of the on-site piping. (ID ø9.52 mm (ø3/8 in))
Use the supplied connecting elbow ⑤ and connecting
pipe ⑥.
EP250
*1
*2
Use the supplied connecting pipes ① and ⑧.
Expand the end of the on-site piping. (ID ø12.7 mm (ø1/2 in))
EP300
*3
Use the supplied connecting pipes ② and ⑨.
Expand the end of the on-site piping. (ID ø9.52 mm (ø3/8 in))
Use the supplied connecting elbow ⑤ and connecting
pipe ④.
*4
Use the supplied connecting pipe ②.
Expand the end of the on-site piping. (ID ø12.7 mm (ø1/2 in))
EP350
EP400
EP450
Use the supplied connecting pipe ③.
EP500
When routing the pipes through the bottom of the unit
Liquid side Gas side
EP200
Sever the supplied connecting pipe ① as shown in the figure below with
a pipe cutter.
Expand the end of the on-site piping. (ID ø9.52 mm (ø3/8 in))
Use the supplied connecting pipe ⑦.
Expand the end of the on-site piping. (ID
ø22.2 mm (ø7/8 in))
EP250
*1
*2
Sever the supplied connecting pipe ① as shown in the figure below with
a pipe cutter, and connect it to connecting pipe ⑧.
Expand the end of the on-site piping. (ID ø12.7 mm (ø1/2 in))
EP300
*3
Sever the supplied connecting pipe ② as shown in the figure below with
a pipe cutter, and connect it to connecting pipe ⑨.
Expand the end of the on-site piping. (ID ø9.52 mm (ø3/8 in))
Expand the end of the on-site piping. (ID
ø28.58 mm (ø1-1/8 in))
*4
Sever the supplied connecting pipe ② as shown in the figure below with
a pipe cutter.
Expand the end of the on-site piping. (ID ø12.7 mm (ø1/2 in))
EP350
EP400
EP450
Sever the supplied connecting pipe ③ as shown in the figure below with
a pipe cutter.
Expand the end of the on-site piping. (ID ø15.88 mm (ø5/8 in))
EP500
<Reference> Size of refrigerant pipes
On-site piping [mm (in)] Service valve piping [mm (in)]
Liquid Gas Liquid Gas
EP200 ø9.52 (ø3/8)
ø22.2 (ø7/8) ø9.52 (ø3/8)
ø28.58 (ø1-1/8)
EP250
*1 ø9.52 (ø3/8)
*2 ø12.7 (ø1/2)
EP300
*3 ø9.52 (ø3/8)
ø28.58 (ø1-1/8)
ø12.7 (ø1/2)*4 ø12.7 (ø1/2)
EP350 ø12.7 (ø1/2)
EP400 ø12.7 (ø1/2)
ø15.88 (ø5/8)EP450 ø15.88 (ø5/8)
EP500 ø15.88 (ø5/8)
*1 When the piping length from the outdoor unit to the farthest indoor unit is less than 90 m (295 ft)
*2 When the piping length from the outdoor unit to the farthest indoor unit is 90 m (295 ft) or more
*3 When the piping length from the outdoor unit to the farthest indoor unit is less than 40 m (131 ft)
*4 When the piping length from the outdoor unit to the farthest indoor unit is 40 m (131 ft) or more.
<Reference> Severed section
[mm (in)]
Ⓐ
ⒶⒶ
Ⓑ
Ⓑ
Ⓑ
Ⓐ Pipe section to be cut (Use a pipe cutter.)
Ⓑ Service valve side
20 (26/32)
18 (23/32)
25 (1)
Connecting pipe ① Connecting pipe ② Connecting pipe ③
