Mitsubishi Electric PUHY-EP450YLM-A [23/56] Example of pipe connection between outdoor units and indoor units

GB-21

WT07281X03

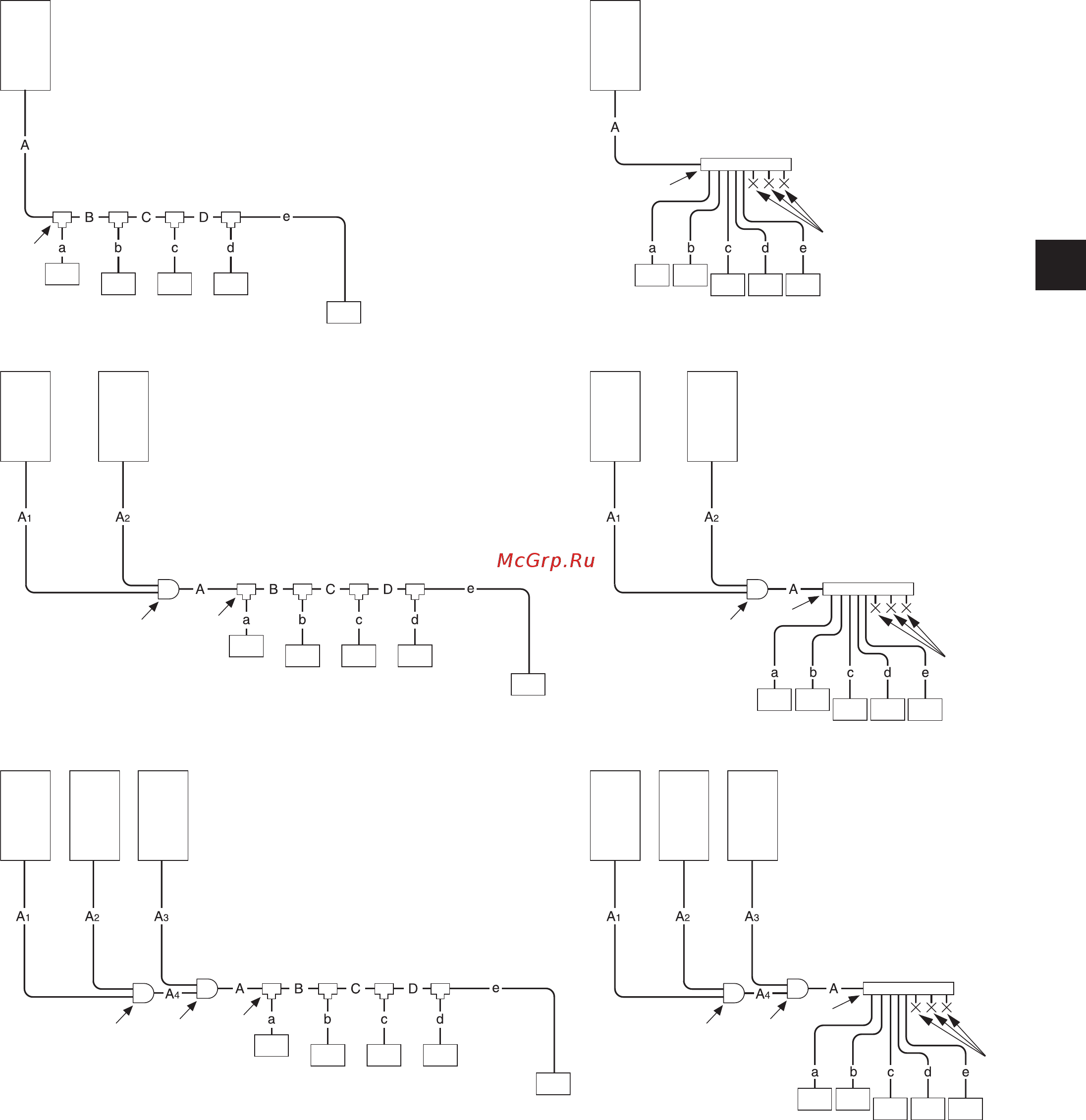

・Example of pipe connection between outdoor units and indoor units

EP200 to EP500YLM-A

Ⓑ

Ⓒ

Ⓐ

Ⓑ

Ⓒ Ⓒ

Ⓕ

Ⓓ

Ⓐ

EP500 to EP600YSLM-A

Ⓔ

Ⓑ

Ⓒ

Ⓐ Ⓐ

Ⓔ

Ⓑ

Ⓒ Ⓒ

Ⓕ

Ⓒ

Ⓓ

EP650 to EP1350YSLM-A

Ⓒ

Ⓔ

Ⓑ

Ⓐ Ⓐ Ⓐ

Ⓔ

Ⓑ

Ⓒ Ⓒ

Ⓓ

Ⓕ

Ⓐ Outdoor unit

Ⓑ 1st branching

Ⓓ Cap

Ⓔ Outdoor unit twinning kit

Ⓕ Header branching

* The total length of A1, A2, A3, and A4 is less than 10 m (32 ft).

Unit 1

Unit 1 Unit 2

Unit 1 Unit 2 Unit 3
