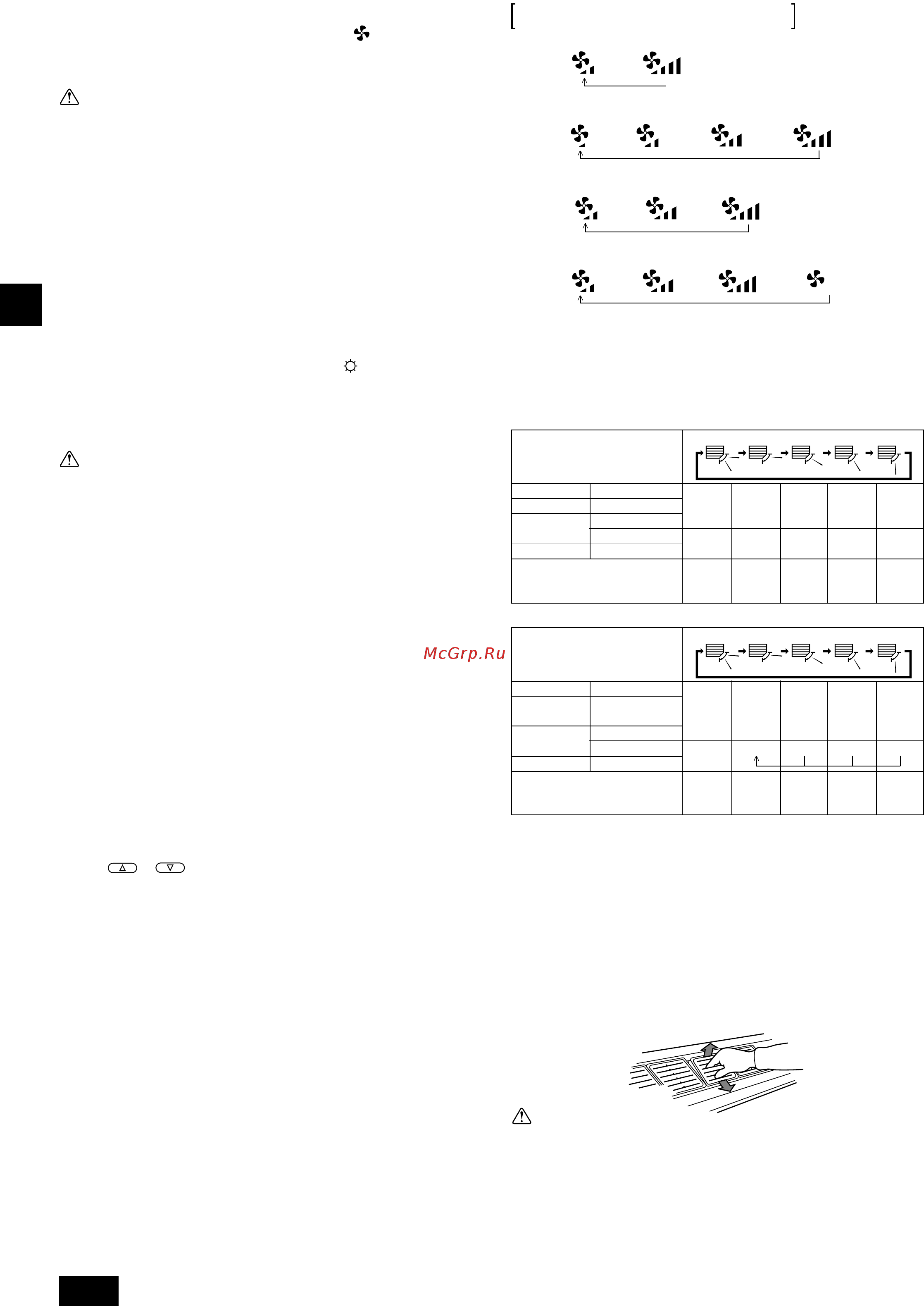

PEFY-P40~140VMH, PFFY-P-VLEM, PFFY-P-VLRM

PDFY-P100·125VM, PEFY-P100~140-VMM series

Fan speed : 2 stages

Display:

(Low)→ (High)

[PLFY-P125VLMD, PDFY-P20~80VM series]

Fan speed : 4 stages

Display:

(Low)→ (Mid2)→ (Mid1)→ (High)

[PLFY-P20~100VLMD, PEFY-P-VML, PEFY-P20~80-VMM, PEFY-P-VMR series]

Fan speed : 3 stages

Display:

(Low)→ (Mid)→ (High)

[PEFY-P-VMS, PFFY-P-VLRMM-E series]

Fan speed : 3 stages

Display:

(Low)→ (Mid)→ (High)→ (AUTO*)

This setting can be adjusted only with MA remote controller.

3.5. Adjustment of up/down airflow direction

To change the up/down airflow direction

Every time the 7 [Vane Control] button is pressed, the direction of the air-

flow changes.

[PLFY-P20~100VLMD]

[Other Models]

*1 • It automatically returns to the “2 0°” when one hour passes.

• The “1 Hr.” is displayed on the remote controller (It is disappeared when one

hour passes.)

• This function is not available according to the models.

• There may be a discrepancy between the vane position on the display and the

actual vane position in the following conditions:

1. When “DEFROST” or “STAND BY” is displayed on the controller

2. At the beginning of heating operation

3. Thermo-OFF in the heating mode

PFFY-P-VLEM

While pulling the blowout grill out toward you, raise the rear, remove it, change the

direction, and set it in place.

Caution:

Avoid putting your hand into the air outlet of the indoor unit any more than

necessary. If you get your hands caught in the metal parts when adjusting

the airflow-direction-adjustment board and blowout grill, or nip them in the

autovane, there is a risk of injury and failure.

For fan

Press the 3 [Mode (BACK)] Button and bring up the “ FAN” display.

• The fan operation functions to circulate the air in the room.

• The temperature of the room cannot be set by fan operation.

Caution:

Never expose your body directly to cool air for a long time. Excessive expo-

sure to cool air is bad for your health, and should therefore be avoided.

Dry operation

The dry is a microcomputer-controlled dehumidifying operation which controls ex-

cessive air-cooling according to the room temperature of your choice. (Not usable

for heating.)

1. Until reaching room temperature of your choice

The compressor and indoor fan function is linked motion according to the change

of the room temperature and automatically repeat ON/OFF.

2. When reaching room temperature of your choice

Both the compressor and indoor fan stop.

When stop continues for 10 minutes, the compressor and indoor fan are oper-

ated for 3 minutes to keep the humidity low.

For heating

Press the 3 [Mode (BACK)] Button to bring up the “ HEAT” display.

Regarding displays during heating operation “DEFROST”

Displayed only during the defrosting operation.

“STAND BY”

Displayed from the start of heating operation until the moment warm air blows out.

Caution:

• When the air-conditioner is used together with burners, thoroughly venti-

late the area. Insufficient ventilation can result in accidents due to oxy-

gen deficiency.

• Never place a burner at a place where it is exposed to the airflow from the

air-conditioner.

Doing so can result in imperfect combustion of the burner.

• The microcomputer functions in the following cases: *

• Air does not blow out when heating starts. *

To prevent any cool air from escaping, the indoor fan is gradually switched in

sequence from faint airflow/weak airflow/set airflow according to the tempera-

ture rise of the blown out air. Wait a moment until the airflow comes out naturally.

• The fan is not moving at the set speed. *

- In some models, the system switches over to faint airflow when the temper-

ature of the room reaches the set temperature. In other cases, it stops to

prevent any cool air from escaping during the defrosting operation.

• Air flows out even if operation is stopped. *

- Approximately 1 minute after the stop of operation, the indoor fan some-

times rotates to eliminate extra heat generated by the electric heater, etc.

The fan speed comes to low or high.

* Except PEFY-P-NMHU-E-F.

3.3. Room temperature adjustment

To change room temperature

Press the 1 [Set Temperature] Button and set the room temperature of your

choice.

Pressing

or once changes the setting by 1 °C.

If the pressing is continued, the setting continues to change by 1 °C.

• Indoor temperature can be set within the following range.

Cooling/dry :19 °C - 30 °C

Heating :17 °C - 28 °C

• Temperature cannot be set for the fan mode.

* The range of room temperature display is 8 °C - 39 °C. Outside this range, the

display flashes either 8 °C - 39 °C to inform you if the room temperature is

lower or higher than the displayed temperature.

3.4. Fan speed adjustment

To change fan speed

Every time you press the 6 [Fan Speed] button once, it switches from the low-

speed to high-speed settings successively.

In the electronics dry operation, the indoor fan automatically turns to low-speed

operation. Switching of fan speed is impossible. (Only the display on the remote

controller changes.)

Every time the fan speed adjustment button is pressed once, the fan speed is changed.

[PEFY-P200·250VMH]

Fan speed : 1 stage

Switching of fan speed is impossible.

Cooling

Dry

Fan

Display

Initial setting

–

1 Swing 2 0° 3 40° 4 60° 5 80°

Fan speed

High/Mid/Low

High

Mid/Low

Fixed

Mode

Heating/Fan

Cooling

Dry

Cooling

Dry

Fan

Display

Initial setting

–

Heating

–

1 Swing 2 0° 3 45° 4 60° 5 85°

Fan speed

High/Mid1/

Mid2/Low

High

Mid1/Mid2/Low

Fixed

Mode

Heating/Fan

Cooling

Dry

Heating
