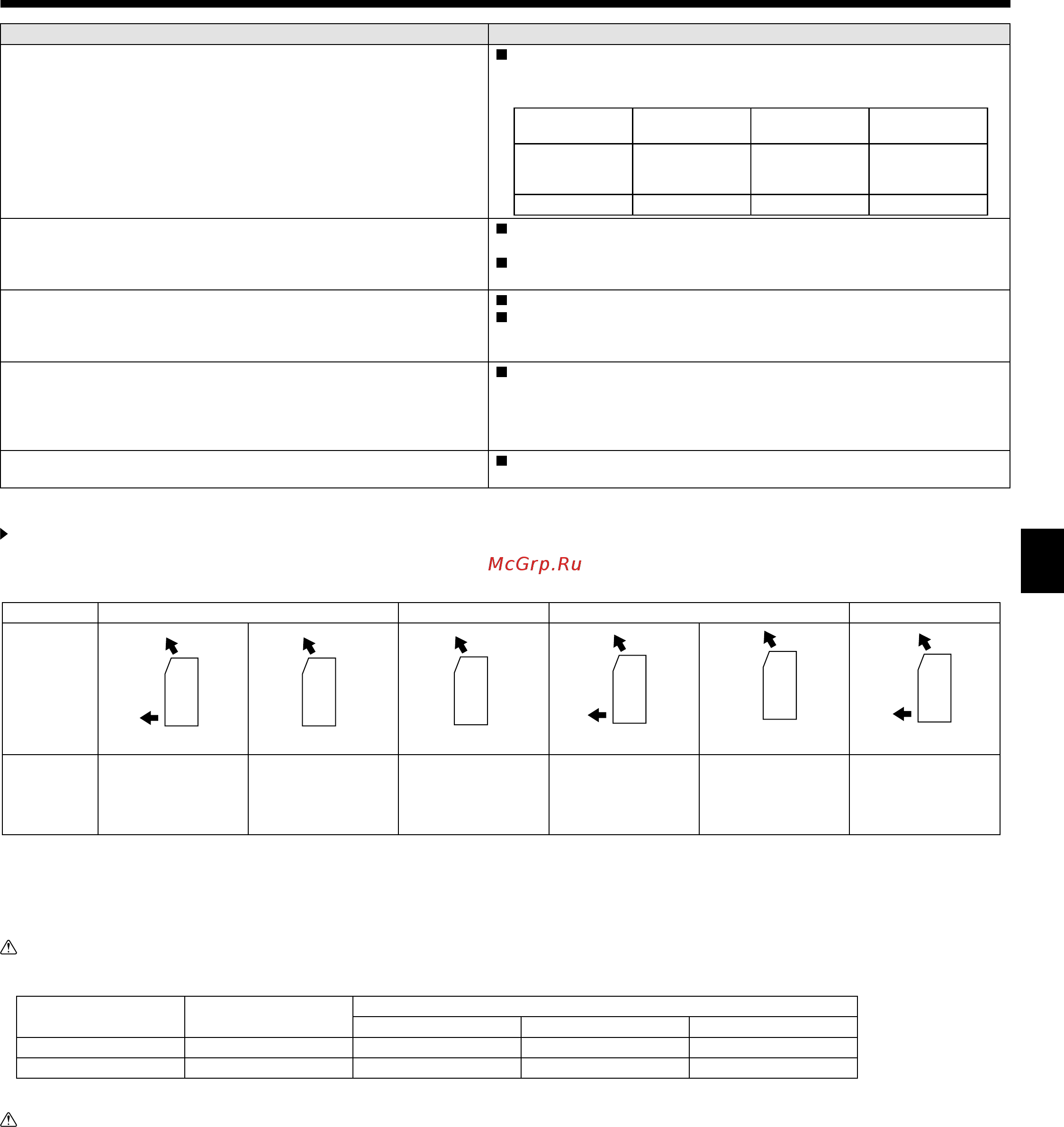

11. Trouble Shooting
Having trouble?
Here is the solution. (Unit is operating normally.)
Noise is louder than specifi cations. The indoor operation sound level is affected by the acoustics of the par-
ticular room as shown in the following table and will be higher than the
noise specifi cation, which was measured in an echo-free room.
High sound-ab-
sorbing rooms
Normal rooms
Low sound-ab-
sorbing rooms
Location
examples
Broadcasting
studio, music
room, etc.
Reception
room, hotel
lobby, etc.
Offi ce, hotel
room
Noise levels 3 to 7 dB 6 to 10 dB 9 to 13 dB
Nothing appears in the wireless remote controller display, the display
is faint, or signals are not received by the indoor unit unless the re-
mote controller is close.
The batteries are low.
Replace the batteries and press the Reset button.
If nothing appears even after the batteries are replaced, make sure that
the batteries are installed in the correct directions (+, –).
The operation lamp near the receiver for the wireless remote control-
ler on the indoor unit is blinking.
The self diagnosis function has operated to protect the air conditioner.
Do not attempt to repair this equipment by yourself.
Turn off the power switch immediately and consult your dealer. Be sure
to provide the dealer with the model name.
Warm air blows from the indoor unit intermittently when heating mode
is off or during fan mode.
When another indoor unit is operating in heating mode, the control valve
opens and closes occasionally to maintain stability in the air conditioning
system. This operation will stop after a while.
* If this will cause an undesirable rise in the room temperature in small
rooms, etc., stop the operation of the indoor unit temporarily.
The damper opens and closes automatically.
(For PFFY-P·VKM-E series)
The damper is automatically controlled by a microcomputer according to
the air fl ow temperature and operation time of the air conditioner.
Air outlet control (PFFY-P·VKM series)
This unit is automatically controlled that air comes out simultaneously from the upper and lower air outlets so that the room can be cooled or heated
effectively.
Description of operation
Operation COOL DRY HEAT FAN
Air fl ow
Upper and lower air fl ow
Upper air fl ow Upper air fl ow only
Upper and lower air fl ow
Upper air fl ow
Upper and lower air fl ow
Conditions
Room temperature
and set temperature
are different.
Room temperature
is close to set tem-
perature or thermo-
off.
—
(Normal condition
(in heating))
During defrosting
operation, start of
operation, thermo-
off
—
• Be sure to keep the area around the damper of the lower air outlet free of any objects.
This unit can be set to blow out air from the upper air outlet only by changing the switch setting on the address board (ask the dealer).
Range of application
The range of working temperatures for both the indoor and outdoor units of the series Y, R2, Multi-S is as below.
Caution:
The use of your air conditioner outside the range of working temperature and humidity can result in serious failure.
Mode Indoor unit
Outdoor unit
PUHY PURY PUMY
Cooling
15 °C - 24 °C WB –5 °C - 43 °C DB –5 °C - 43 °C DB –5 °C - 46 °C DB
Heating
15 °C - 27 °C DB –15 °C - 15.5 °C WB –12 °C - 15 °C WB –12 °C - 15.5 °C WB
Note: As an applicable humidity standard for both indoors and outdoors, we recommend use within a range of 30 - 80% relative humidity.
Warning:
If the air conditioner operates but does not cool or heat (depending on model) the room, consult your dealer since there may be a refriger-
ant leak. Be sure to ask the service representative whether there is refrigerant leakage or not when repairs are carried out.
The refrigerant charged in the air conditioner is safe. Refrigerant normally does not leak. However, if refrigerant gas leaks indoors, and
comes into contact with the fi re of a fan heater, space heater, stove, etc., harmful substances will be generated.
