XR40CX / XR77CXNo effectMaximum temperature
alarm
HA
XR40CX / XR77CXNo effectMinimum temperature
alarm
LA
XR40CX / XR77CXCompressors offCondenser high
temperature
HA2
XR40CX / XR77CXNo effectCondenser low
temperature
LA2
XR40CX / XR77CXNo effectDoor opendA
XR40CX / XR77CXNo effectExternal alarmEA
XR40CX / XR77CXAll outputs offSerious external alarmCA
XR40CX / XR77CXAll outputs offPressure switch alarmCA
4.4.2. Other messages
APPLIES TOEFFECTCAUSEMESSAGE
XR40CX / XR77CXCompressors offDefrost enableddEF
XR40CX / XR77CXKeyboard unlockedPon
XR40CX / XR77CXKeyboard lockedPoF
XR40CX / XR77CXSelected probe is not
enabled
noP
XR40CX / XR77CXNone alarm is recordednoA

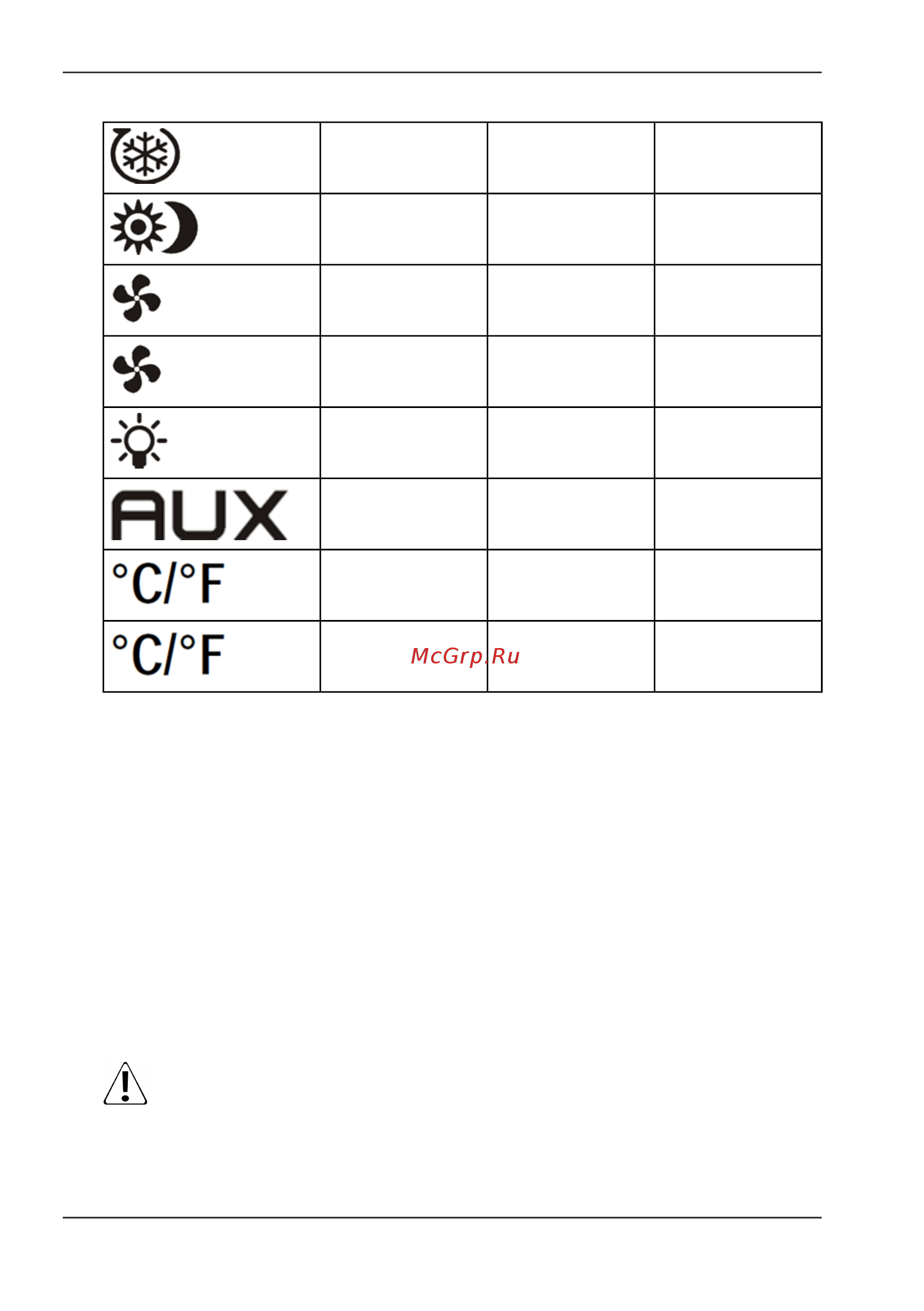

4.4.3. LED symbols
APPLIES TOFUNCTIONMODELED
XR40CX / XR77CXCompressor enabledON
XR40CX / XR77CXAnti-short cycle delay
enabled
FLASHING
XR40CX / XR77CXDefrost enabledON
XR40CX / XR77CXDrip time in progressFLASHING
XR40CX / XR77CXAn alarm is occuringON
8Version 5/2015
ENGLISH
PI
XR40CX / XR77CXContinous cycle is
running
ON
XR40CX / XR77CXEnergy saving
enabled
ON
XR77CXFans enabledON
XR77CXFans delay in
progress
FLASHING
XR77CXLights onON
XR77CXAuxiliary relay onON
XR40CX / XR77CXMeasurement unitON
XR40CX / XR77CXProgramming phaseFLASHING
4.5. Automatic defrosting
The cabinet is equipped with an automatic defrosting equipment. The control device of the cabinet
controls the operation periods and the defrosting process. Defrosting is performed six (6) times
a day (electric defrosting). Drain water from defrosting is automatically led to a hot gas evaporation
tray or to an electrically heated evaporation sump depending on the cabinet model. The
temperature inside the cabinet rises by a few degrees during defrosting.
5. Cleaning
The following cleaning procedure must be carried out at least twice a year.
The cabinet must not be cleaned while the fans are running. To disable the fans,
disconnect the cabinet from the electricity supply.
NOTE
Evaporators, condensers and parts made of stainless steel may have sharp edges.
Wear protective gloves and work cautiously to avoid cut injuries.
WARNING
1. Disconnect the cabinet from the mains supply or turn the separate switch to the cleaning
position.
2. Empty the cabinet.
9Version 05/2015
