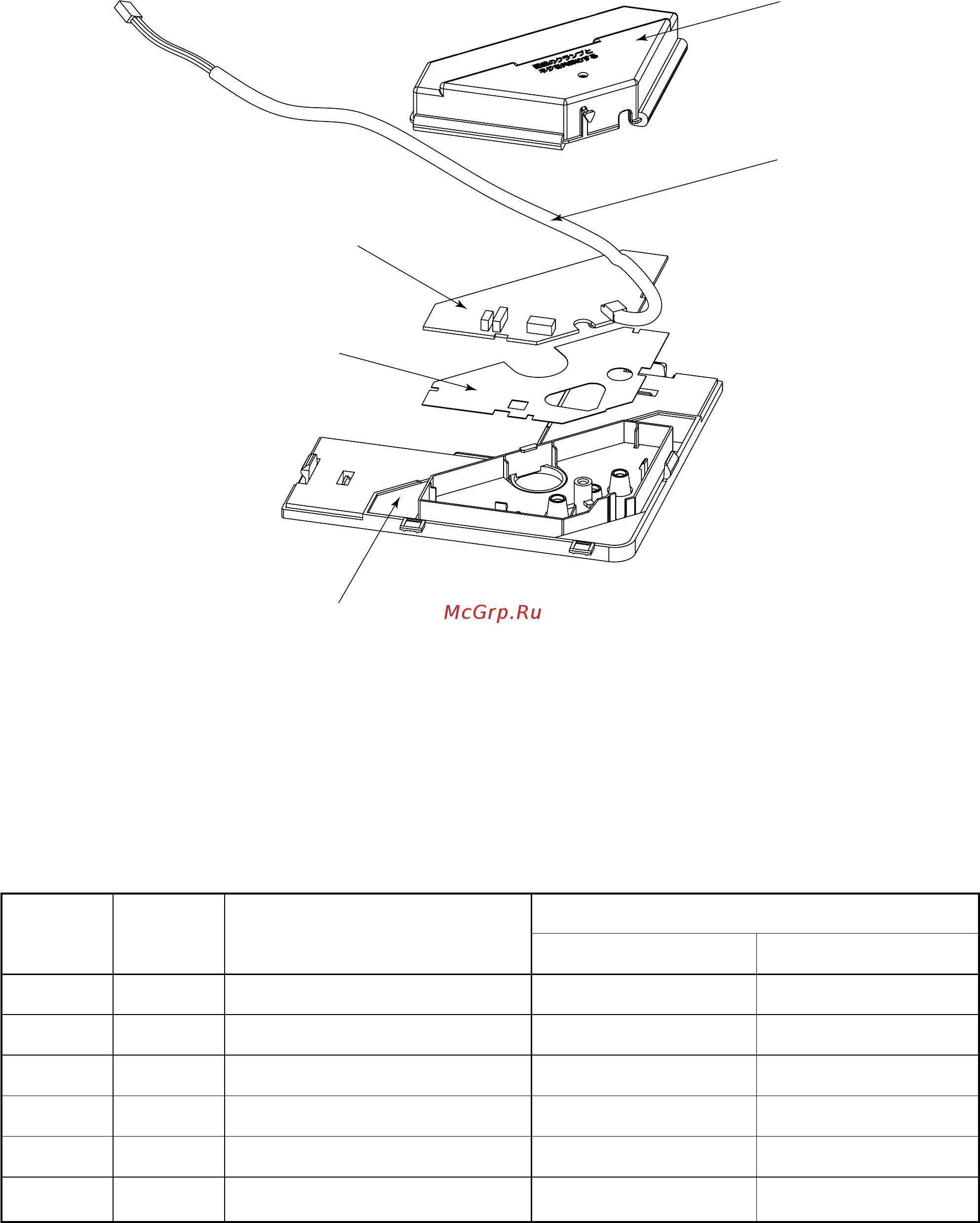

Location

Parts No. Description

No.

353 43459011 P.C. Board Ass’y, Remote Receiver

354 43462010 Cover, WRS, ABS

355 43461006 Sheet, PC

356 43108018 Cover, Panel, WRS

357 43108019 Cover, Panel, WRS

358 43460126 Lead

Model Name

RBC-AX31U (W)-E RBC-AX31U (WS)-E

RBC-AX31U (W)-E, RBC-AX31U (WS)-E

354

358

353

355

356, 357
