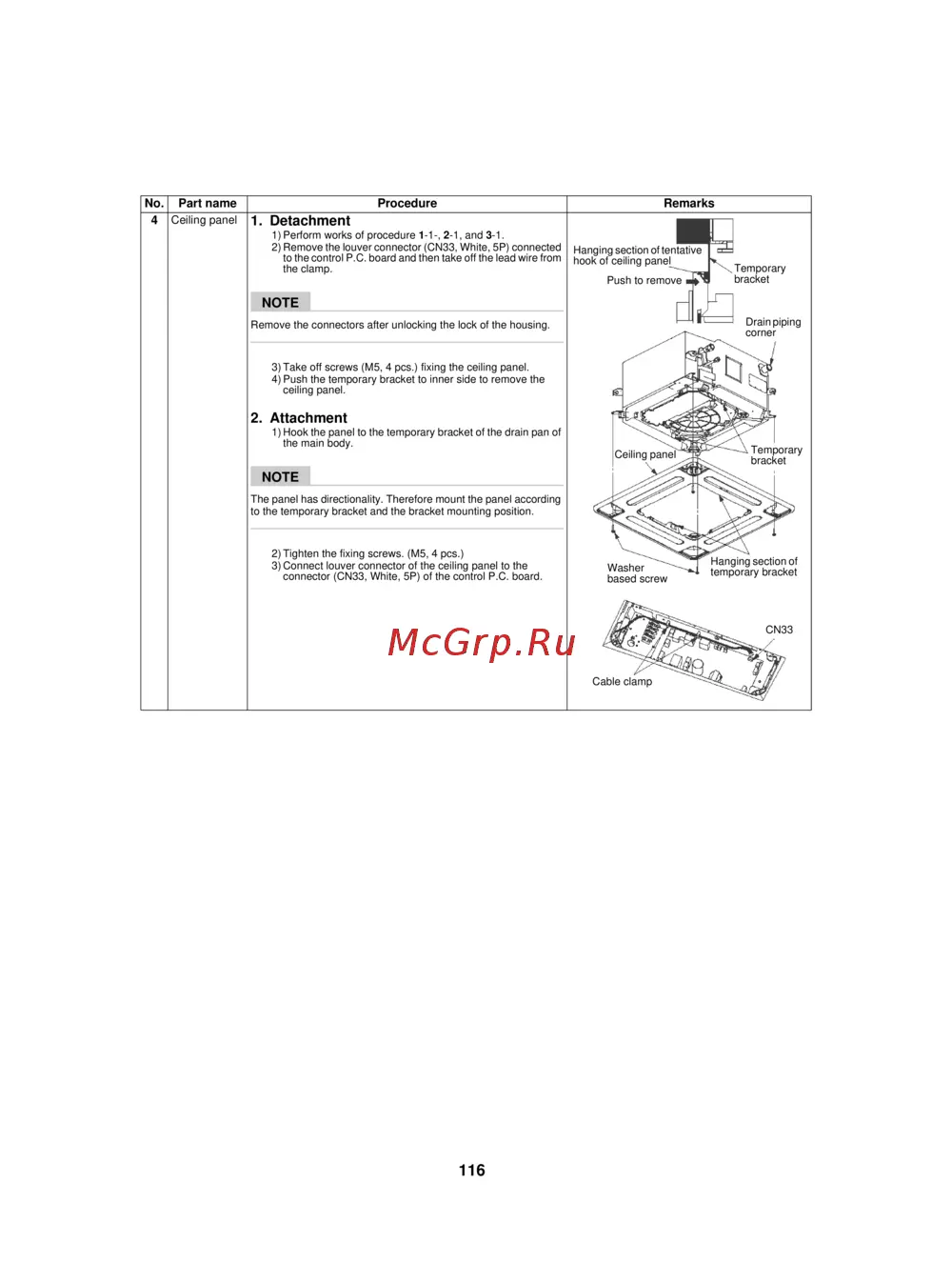

116
4
Ceiling panel
1. Detachment
1) Perform works of procedure 1-1-, 2-1, and 3-1.
2) Remove the louver connector (CN33, White, 5P) connected
to the control P.C. board and then take off the lead wire from
the clamp.
NOTE
Remove the connectors after unlocking the lock of the housing.
3) Take off screws (M5, 4 pcs.) fixing the ceiling panel.
4) Push the temporary bracket to inner side to remove the
ceiling panel.
2. Attachment
1) Hook the panel to the temporary bracket of the drain pan of
the main body.
NOTE
The panel has directionality. Therefore mount the panel according
to the temporary bracket and the bracket mounting position.
2) Tighten the fixing screws. (M5, 4 pcs.)
3) Connect louver connector of the ceiling panel to the
connector (CN33, White, 5P) of the control P.C. board.
No. Part name Procedure Remarks
Temporary
bracket
Hanging section of tentative
hook of ceiling panel
Push to remove
Drain piping
corner
Temporary
bracket
Ceiling panel
Hanging section of
temporary bracket
Washer
based screw
Cable clamp
CN33
