Toshiba MMC-AP0244H-E [217/219] E parts

216

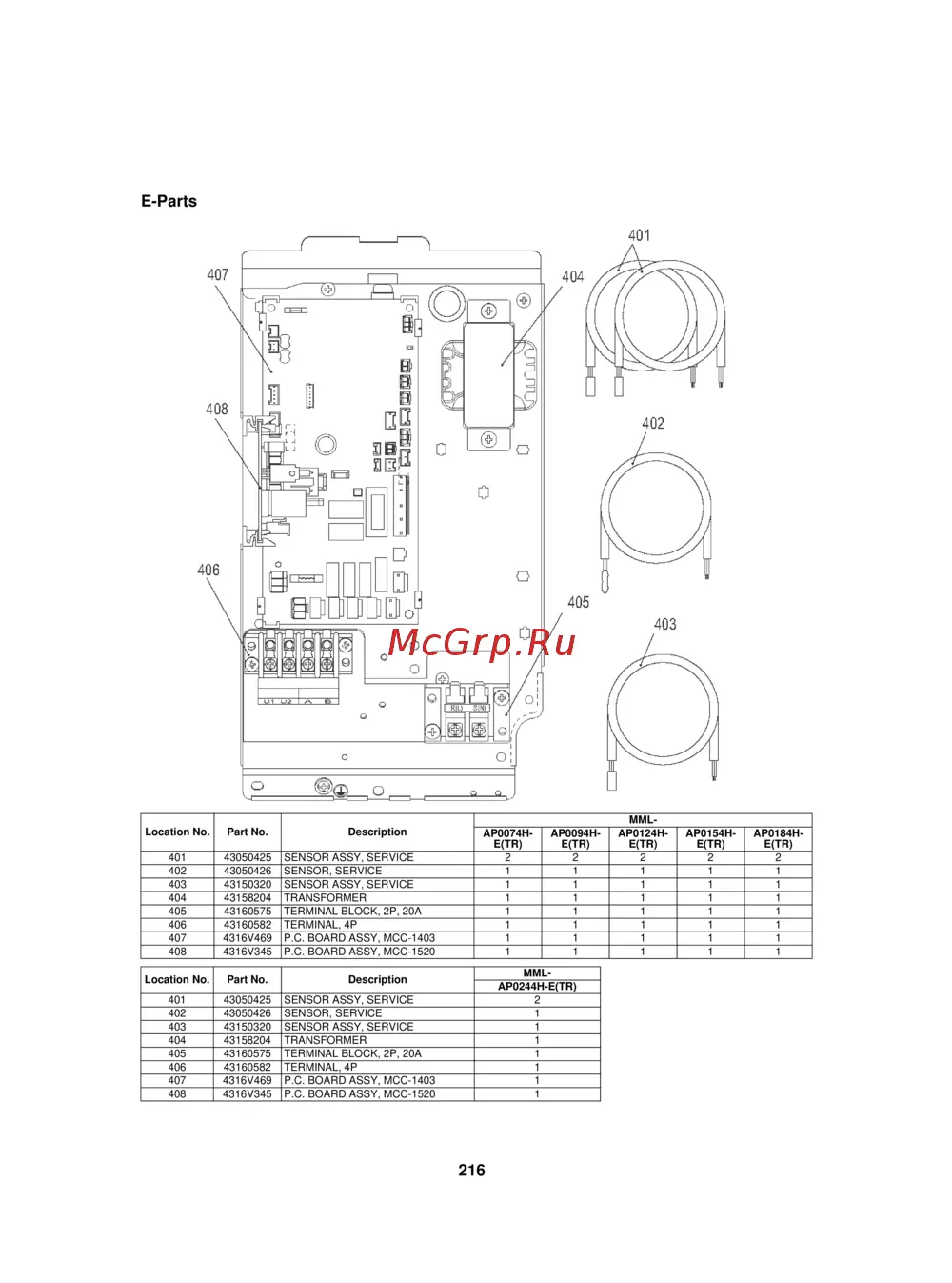

E-Parts

Location No. Part No. Description

MML-

AP0074H-

E(TR)

AP0094H-

E(TR)

AP0124H-

E(TR)

AP0154H-

E(TR)

AP0184H-

E(TR)

401 43050425 SENSOR ASSY, SERVICE 2 2 2 2 2

402 43050426 SENSOR, SERVICE 1 1 1 1 1

403 43150320 SENSOR ASSY, SERVICE 1 1 1 1 1

404 43158204 TRANSFORMER 1 1 1 1 1

405 43160575 TERMINAL BLOCK, 2P, 20A 1 1 1 1 1

406 43160582 TERMINAL, 4P 1 1 1 1 1

407 4316V469 P.C. BOARD ASSY, MCC-1403 1 1 1 1 1

408 4316V345 P.C. BOARD ASSY, MCC-1520 1 1 1 1 1

Location No. Part No. Description

MML-

AP0244H-E(TR)

401 43050425 SENSOR ASSY, SERVICE 2

402 43050426 SENSOR, SERVICE 1

403 43150320 SENSOR ASSY, SERVICE 1

404 43158204 TRANSFORMER 1

405 43160575 TERMINAL BLOCK, 2P, 20A 1

406 43160582 TERMINAL, 4P 1

407 4316V469 P.C. BOARD ASSY, MCC-1403 1

408 4316V345 P.C. BOARD ASSY, MCC-1520 1
