INSTALLATION AND USE MANUAL
Chapter 3
page
17
Technical features and technical specifications
Technical service - MCZ S.p.A. all rights reserved - Reproduction prohibited

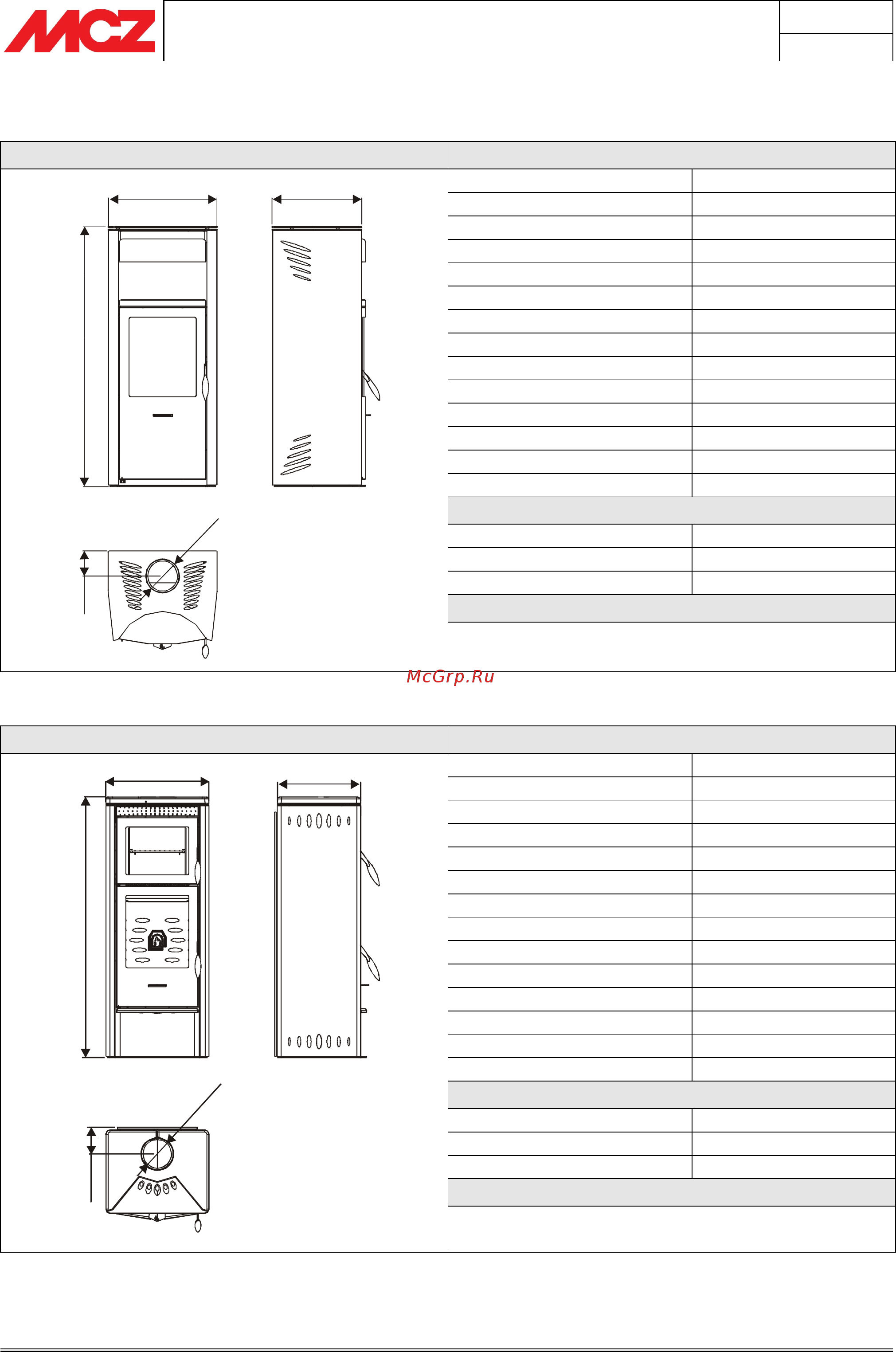

ZENIT Technical specifications
1
2
4
2
520
447
1
1
0
Ø
1
5
0
Fuel type Wood - Chips
Hourly consumption 2.0 kg/h – 1.4 kg/h
Maximum thermal power kW 7.4 Kcal 6364
Minimum thermal power kW 3.9 Kcal 3354
Efficiency 84,6 %
Heatable volume * 159/40 - 182/35 - 212/30
Minimum draught 12 Pa / 0.12 mbar
Smoke temperature 250 °C
Smoke outlet Ø 15 cm
Furnace dimensions 32.5 x 32 - h 40
Net weight Kg 170
External combustion air outlet cm² 150
CO2 emission in smoke (13 %O2) 0,10 %
Massive smoke capacity 8.5 g/s
Flue pipe
Up to 5 mt 20x30 cm Ø22
Between 5 and 7 mt. 20x20 cm Ø20
Over 7 mt 18x18 cm Ø18
Note
A stove is an intermittent combustion device
* Data may vary according to the fuel used
SIRIO Technical specifications
1
3
1
3
520
420
1
2
0
Ø
1
5
0
Fuel type Wood - Chips
Hourly consumption 2.0 kg/h – 1.4 kg/h
Maximum thermal power kW 7.4 Kcal 6364
Minimum thermal power kW 3.9 Kcal 3354
Efficiency 84,6 %
Heatable volume * 159/40 - 182/35 - 212/30
Minimum draught 12 Pa / 0.12 mbar
Smoke temperature 250 °C
Smoke outlet Ø 15 cm
Furnace dimensions 32.5 x 32 - h 40
Net weight Kg 170
External combustion air outlet cm² 150
CO2 emission in smoke (13 %O2) 0,10 %
Massive smoke capacity 8.5 g/s
Flue pipe
Up to 5 mt 20x30 cm Ø22
Between 5 and 7 mt. 20x20 cm Ø20
Over 7 mt 18x18 cm Ø18
Note
A stove is an intermittent combustion device
* Data may vary according to the fuel used
