MCZ Anthea [9/27] Chimney flue connections

INSTALLATION AND USE MANUAL

Chapter 2

page

Theoretic notions for installation

2.4. CHIMNEY FLUE CONNECTIONS

Connections to the chimney flue is important and should be conducted

with care and attention. Stoves have top or rear smoke exhausts.

The smoke exhaust pipe must be assembled to guarantee seals during

product operations in depression and avoid the formation and transport

of condensation to the stove.

Any manual draft adjustment devices inserted in the pipe must not

hermetically close the internal conduit section. These gates must be

equipped with a mechanism that prevents the full rotation of the valve

in the closed position. The minimum safety opening surface must be

3% of the passage section and not less than 10 cm². If the smoke

conduit has a horizontal segment, this must have a minimum upward

gradient of 3-5% (3-5 cm per meter).

The tilted horizontal part must not be longer than 2 ml.

The use of flexible and cement fibre pipes is

prohibited. The smoke stack must not cross rooms

where the installation of combustion devices is

prohibited. The use of pipes in counter-slope is

prohibited.

2.5. CHIMNEY FLUE

The chimney flue is a fundamental element in discharging smoke and

therefore must have the following requisites:

• It must be waterproof and thermally insulated.

• It must be made with heat resistant materials, resistant to

combustion products and any condensation.

• It must have a vertical slope with axis deviations not over 45°

and without narrowing.

• It must meet the requisites indicated in the technical table for

the internal chimney section and height.

• It must preferably have a circular interior section.

• If pre-existent and previously operative, it must be clean.

The chimney flue is of primary importance for the

correct operations and safety of your stove.

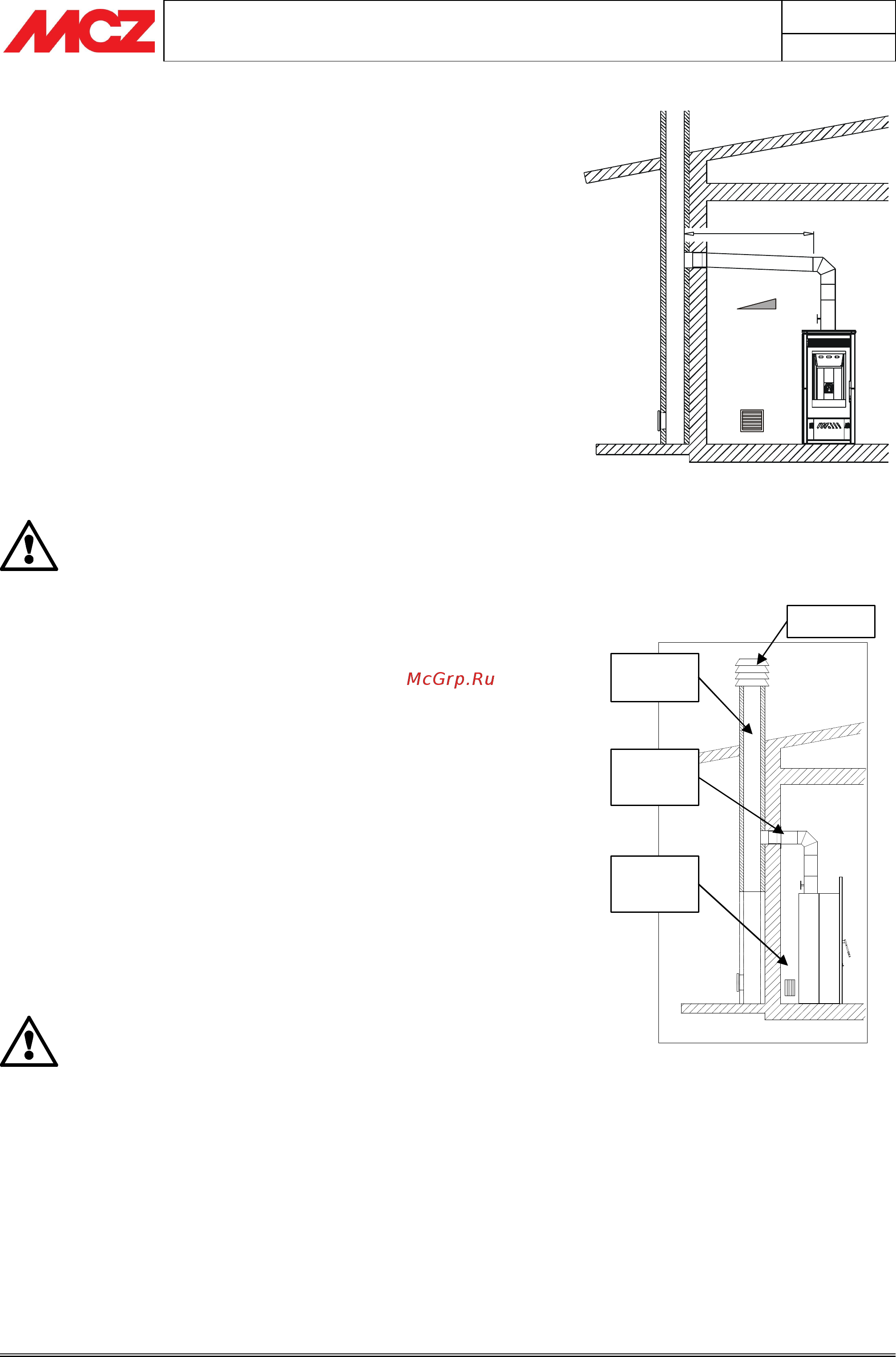

Illustration of a correctly constructed

chimney flue with a chamber and sealed

door for solid combustion product collection

and discharge at the foot of the external

ascending segment.

Example of a connection to the chimney flue

Cowl

Flue pipe

Air outlet

external

Smoke

connection

MAX 2 mt.

3 - 5 %
