Use
This appliance is only intended for grinding cof-
fee beans. It is incorrect to use it for any other
purpose, which may be hazardous. Fiorenzato
MC Srl is not liable for any damage caused by
incorrect or improper use of the appliance. The
appliance must not be used for grinding any
food product other than coffee beans.
The doser unit (coffee grinder-doser version)
must not be used for storing or dispensing food.
This appliance must only be used by specialized
technicians and is only for professional, not
domestic, use. It must not be used by children or
unqualified people.
Installation and electrical wiring
Fiorenzato M.C. Srl is not liable for any damage to
people, animals or things due to incorrect installa-
tion of the appliance. Only specialized technicians
are authorized to install this appliance in compli-
ance with the safety regulations in force.
· Position the appliance on a flat stable surface.
· The label with the technical specifications on
the appliance shows the correct voltage and
power frequency. Before inserting the plug,
check that these correspond with those of the
local electrical mains.
· An earth connection is mandatory for using
this appliance. If this is not installed,
Fiorenzato M.C. Srl. denies all liability for dam-
age to people, animals or things.
· The earth connection system must comply
with safety regulations and be efficient and
effective. If you are not sure about the earth
connection of the socket you will use to con-
nect this appliance, have the electrical system
checked by a specialized technician.
· Check that the socket to be used is protected
against overcurrents. Use of the following is
forbidden: mobile cables, extensions, multi-
ple sockets and electrical adaptors.
· The motor on this appliance only rotates in a
clockwise direction. T
o obtain the correct
direction of rotation for three-phase motors, it
is possible to reverse the power supply cables
inside the plug, but this operation must only
be carried out by specialized technicians.
Operating the appliance
PREPARATION
First of all, it is necessary to make sure that the
hopper has been correctly fitted to the appliance:
this must be anchored to the grinding blade
holder with the appropriate screw. Then it is pos-
sible to close the lock and put the coffee beans
into the hopper. After this, the lock can be
opened so that the coffee beans reach the grind-
ing unit.
SWITCHING ON AND OFF
MODELS WITH MANUAL SWITCH
AND COFFEE GRINDER
To switch on, turn the switch to "I".
To switch off, turn the switch to "
0".
MODELS WITH TIME SWITCH
The grinder-doser starts to operate when the timer
knob is turned clockwise, and it switches off auto-
matically. To switch it off manually, just turn the
knob clockwise as far as it will go.
AUTOMATIC MODELS
When the switch is turned to "I", the grinder-doser
receives electrical current. When the knob is then
turned to the "
START" position, the appliance
begins grinding. After 6 coffee doses, grinding starts
again automatically and stops when the doser is
full. When the switch is turned to "
O", the grinder-
doser is switched off
.
CONICAL F63K-F71K MODEL
To switch this model on, use the 0-1-Start switch.
ATTENTION: Once the grinder-doser has been
20

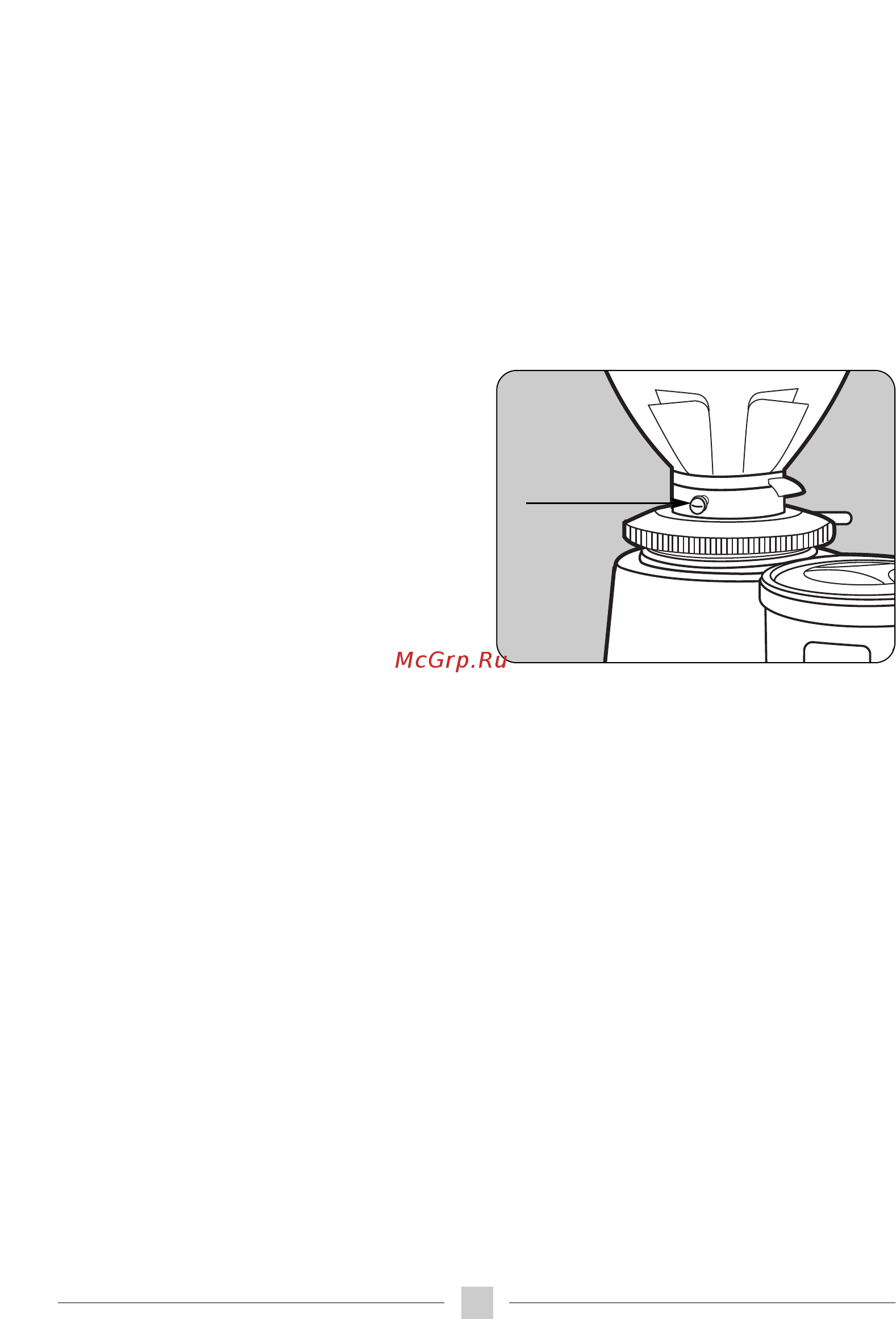

Hopper safety
screw
