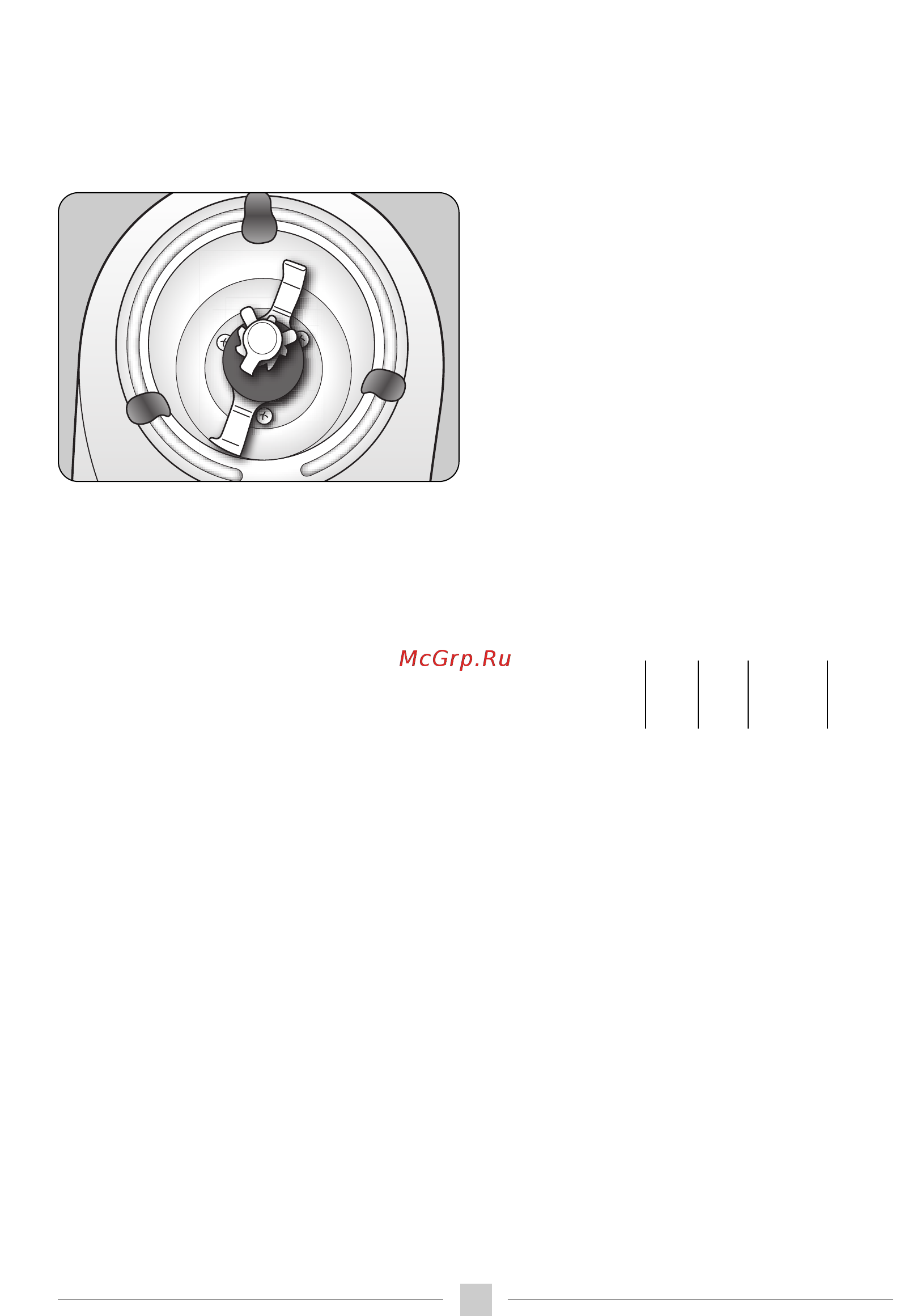

GRINDING BURRS
CONICAL F63K-F71K MODEL: The F63K-F71K
grinder-doser is fitted with D63-D71 conical
grinding burrs.
Warnings for operation
· The appliance must not be left switched on if
there is no coffee in the hopper.
· For coffee grinder-dosers, the doser lever must
always be pulled down as far as possible: never
pull it only partly.
· For coffee grinders, make sure that the coffee
outlet is free from any obstruction otherwise the
appliance will stop. To empty out all the ground
coffee, firmly pull the outlet handle. Use ade-
quately sized bags to collect the ground coffee
so that the entire amount of coffee coming out
can be collected.
Safety devices
THERMAL CUT-OUT
The electric power supply of the motor is automat-
ically interrupted by a thermal cut-out if overheating
occurs. Interruption of the power supply of the
motor can be caused when the grinding blades are
blocked. In this case, it is necessary to switch off the
appliance and disconnect it from the electric power
supply. Contact the technical assistance service. If
the appliance gets blocked, never try to release it
manually, as it could start up again unexpectedly. If
the blocked motor is caused by overheating, it is
necessary to wait until it has cooled down before
taking any action.
SAFETY SCREWS
· The safety screw that fastens the hopper to
the grinding blade holder must never be
removed by the user.
· The grinding adjustment ring nut must not be
removed, as this would make its dangerous
rotating parts accessible. It can be blocked,
thanks to an anti-unscrewing device on the
ring nut comprising a screw positioned in one
of the two holes in the ring nut, which
enables the user to adjust grinding as
required. This screw must never be removed.
COFFEE OUTLET SAFETY DEVICE
The user must never remove the coffee outlet safe-
ty device from the doser unit. The coffee outlet safe-
ty device may only be removed by specialized per-
sonnel and only when the electric power supply
cable has been previously disconnected.
Remember to put the coffee outlet safety device
back into place before using the appliance again.
WORKING TIME
Noise level
in EEC Countries:
This appliance complies with EN 60704-1: 1998
and EN 607043: 1996 regulations concerning the
maximum noise level, measured in a UNI EN ISO
3741 reverberation chamber according to EN
60704-1 regulations. In compliance with European
Directive 86/188/EEC and its subsequent revision
2003/1 0/EEC, the exposure to noise of an opera-
tor exclusively concerning the limited operation of
the appliance to 240 min. in 8 hours is equal to 78
dB (A). Consequently, this appliance does not
require any precautions against the risks of expo-
sure to noise in work places, in compliance with the
provisions of articles 3-8 of European Directive
2003/1 0/EEC.
Maintenance
The use of original spare parts is strongly recom-
mended. Checks on the appliance and regular main-
22
Model F5 F6 F5 G/T F6 G/T
Seconds ON 50 35 60 60
Seconds OFF 50 45 60 60
