Dell 3460 (3460-8964) [12/47] Removing the wlan card

Removing the WLAN card

1. Follow the procedure in Before Working Inside Your Computer.

2. Remove the:

a. battery

b. base cover

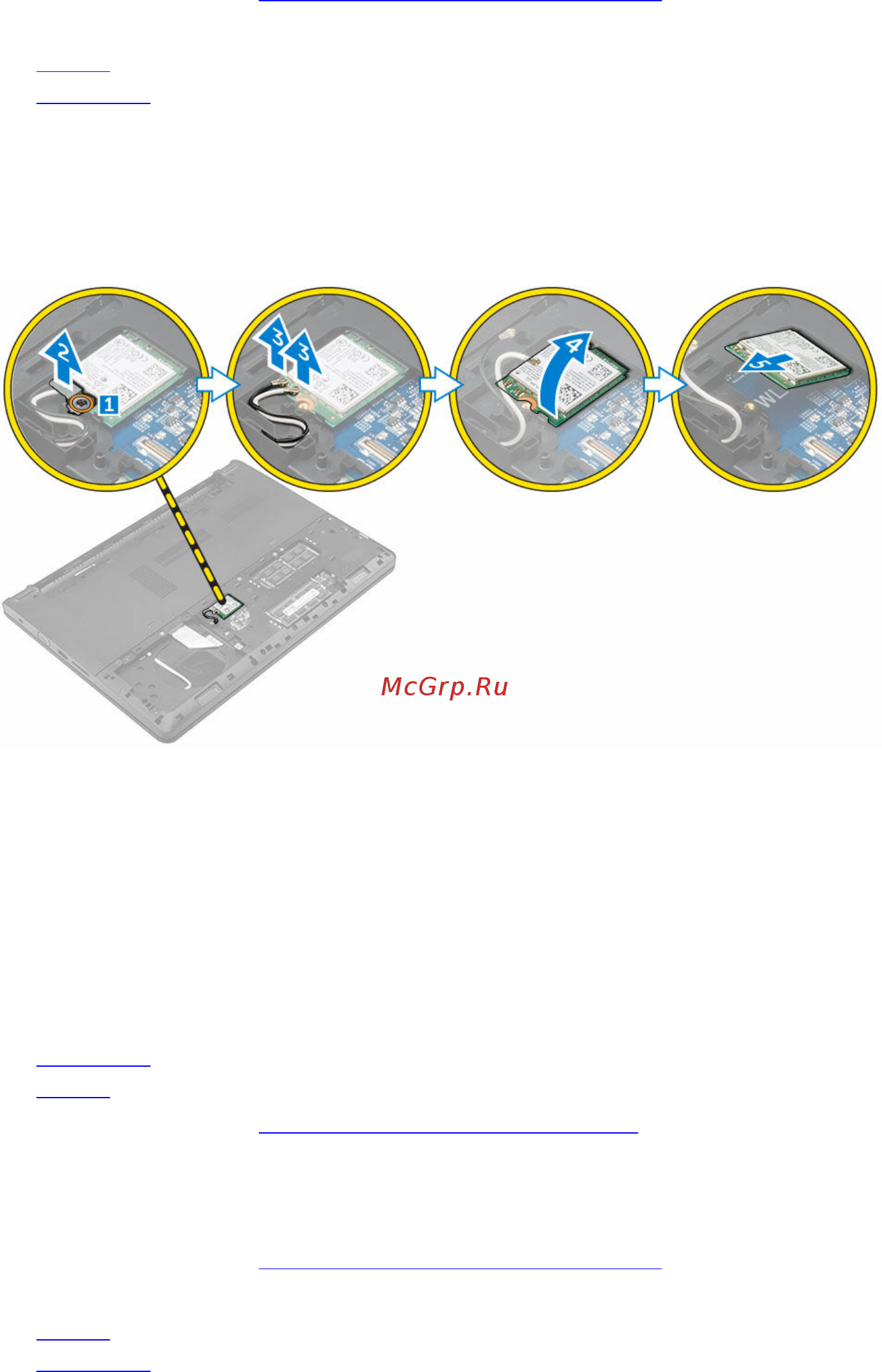

3. To remove the WLAN card:

a. Loosen the captive screw [1] to remove the metal tab from the WLAN card [2].

b. Disconnect the WLAN cables from the WLAN card [3].

c. Using a plastic scribe, release the WLAN card from the computer [4].

d. Disconnect the WLAN card from the connector to remove it [5].

Installing the WLAN card

1. Connect the WLAN card to the connector on the system board.

2. Connect the WLAN antenna cables to the connectors on the WLAN card.

3. Place the metal tab to align it with the screw holder on the WLAN card to secure the WLAN cables.

4. Tighten the captive screw to secure the WLAN card to the computer.

5. Install:

a. base cover

b. battery

6. Follow the procedure in After Working Inside Your computer.

Removing the memory module

1. Follow the procedure in Before Working Inside Your Computer.

2. Remove the:

a. battery

b. base cover

3. To remove the memory module:
