f. keyboard
g. memory
h. WLAN card
i. hard drive assembly
j. base cover
k. battery
5. Follow the procedure in After Working Inside Your computer.
Removing the display bezel
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. battery
b. base cover
c. hard drive assembly
d. WLAN card
e. memory
f. keyboard
g. palmrest
h. display cable
i. system fan
j. system board
k. power connector port
l. display assembly

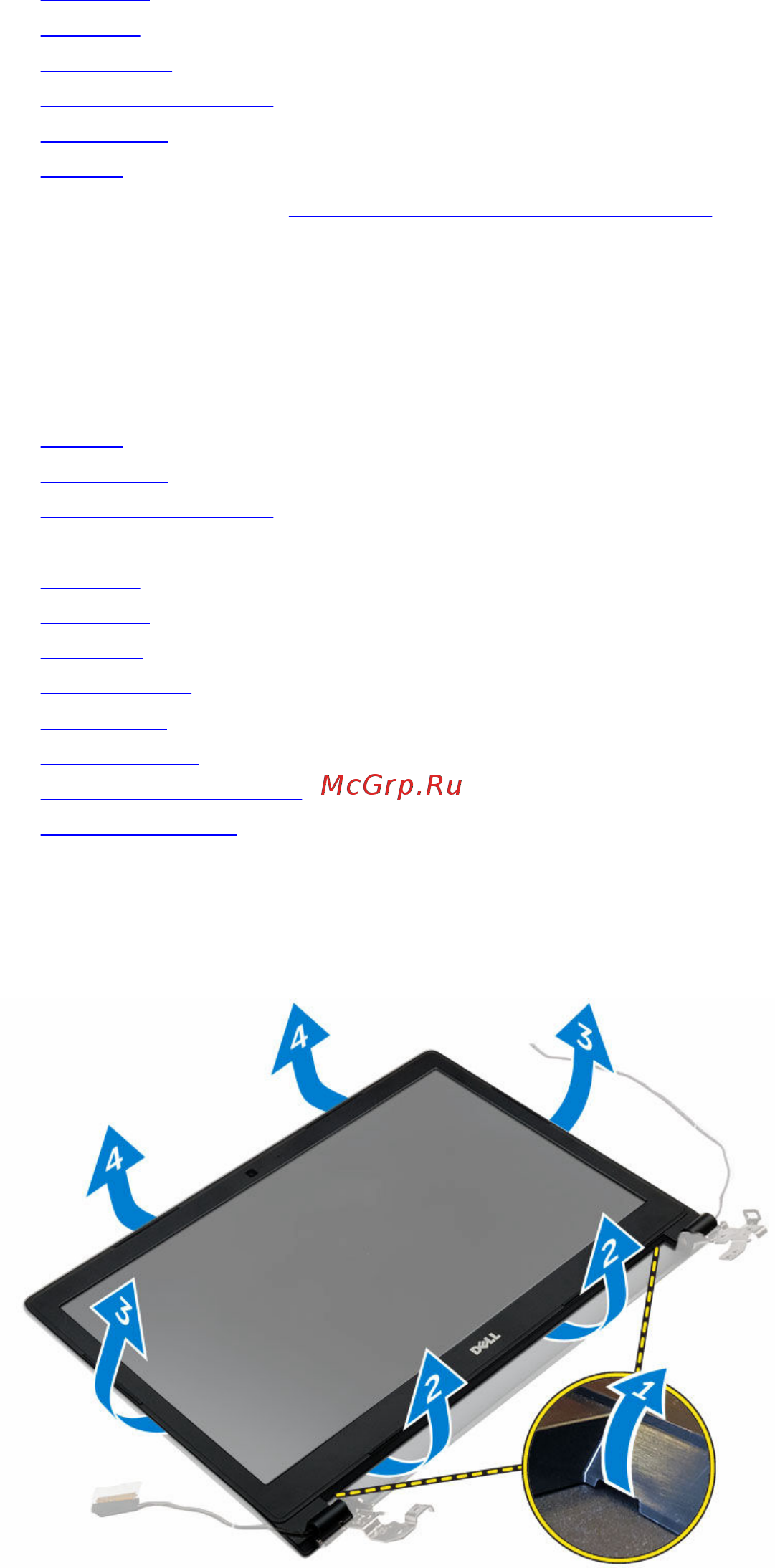

3. To remove the display bezel:
a. Using a plastic scribe, release the display bezel from the bottom of the display assembly [1].
b. Release the display bezel from its edges and remove the display bezel from the display assembly
[2, 3, 4].
24
