9

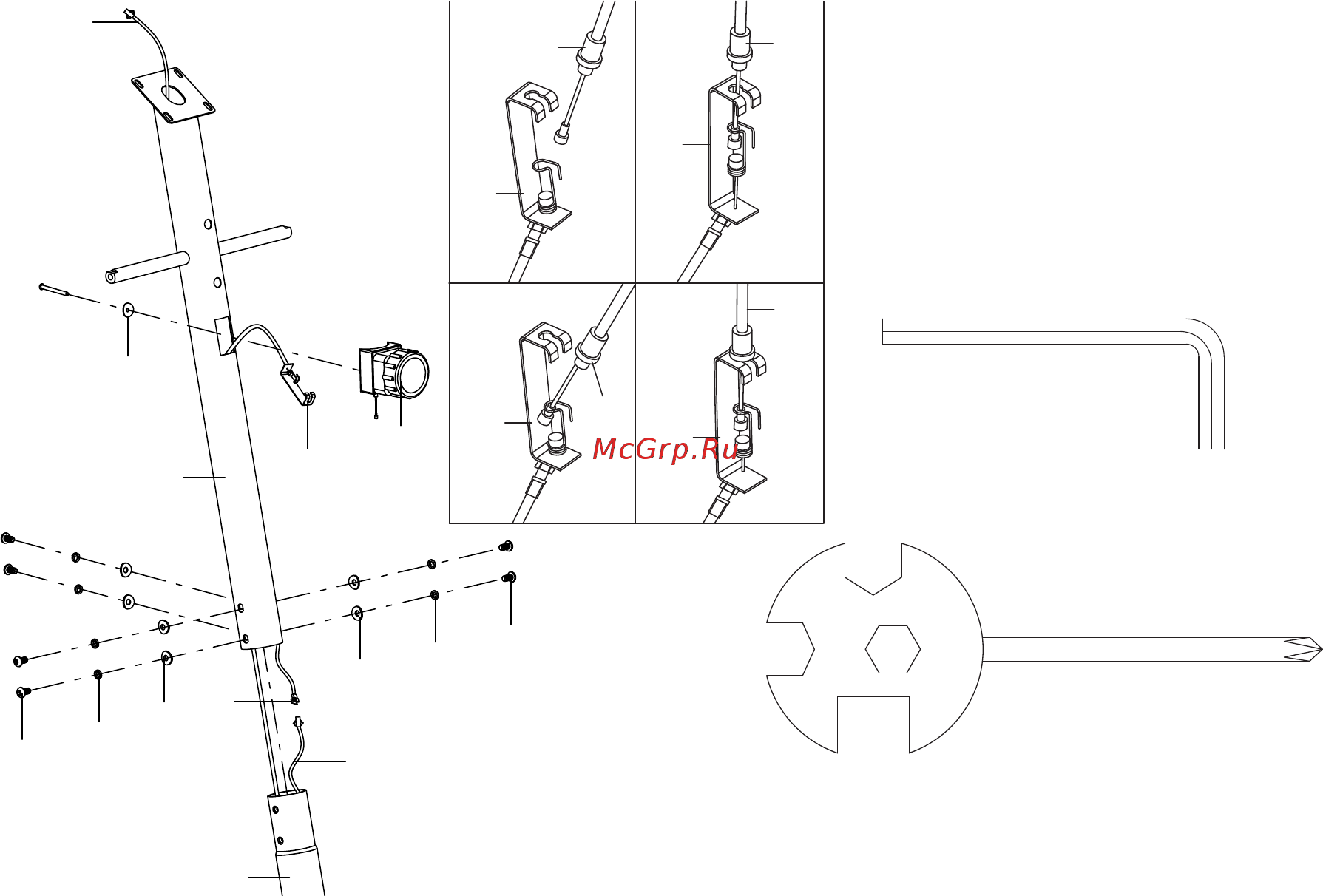

2. Front Post Installation
Remove six M8x15 Hexagon Socket Pan Head Cap Bolts (33), six Ø8 Spring Washers (12),
and six Ø8xØ20x2 Big Curve Washers (48) from the Main Frame (72). Remove bolts with
the S6 Allen Wrench provided.
Insert the Tension Cable (46) through into the bottom hole of Front Post (47) and pull it out
from the square hole of Front Post (47).
Connect the Sensor Wire (75) from the Main Frame (72) to the Extension Sensor Wire (39)
from the Front Post (47).
Insert the Front Post (47) onto the tube of the Main Frame (72) and secure with six M8x15
Hexagon Socket Pan Head Cap Bolts (33), six Ø8 Spring Washers (12), and six Ø8xØ20x2
Big Curve Washers (48) that were removed. Tighten bolts with the S6 Allen Wrench
provided.
Remove the M5x55 Cross Recessed Pan Head Bolt (43) and Ø5xØ19xδ1 Curve Washer
(44) from the Tension Control Knob (45). Remove bolt with the Multi Hex Tool with Phillips
Screwdriver provided.
Put the cable end of resistance cable of Tension Control Knob (45) into the cable lock of
Tension Cable (46), see Figure A.
Pull the resistance cable of Tension Control Knob (45) up and force it into the slot of metal
bracket of Tension Cable (46), see Figure B.
Insert the metal fitting on the resistance cable of Tension Control Knob (45) into the hole at
the end of the slot in the metal bracket of Tension Cable (46), see Figure C.
Connect the resistance cable of Tension Control Knob (45) to Tension Cable (46) complete,
see Figure D.
Attach the Tension Control Knob (45) onto the Front Post (47) with the M5x55 Cross
Recessed Pan Head Bolt (43) and Ø5xØ19xδ1 Curve Washer (44) that were removed.
Tighten bolt with the Multi Hex Tool with Phillips Screwdriver provided.
48
12
33
43
44
46
39
47
75
45
72
39
46
33
12
48
Allen Wrench S6
Tools:
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
A
B
C
D
46
45
46
46
46
45
45
45
