6
PARTS LIST
No. Description Qty No. Description Qty
086
Hexagon Socket Pan Head Cap
Bolt M8x25
1 092 Rear Left Stabilizer End Cap 1
087 Idler Arm 1 093 Rear Stabilizer 55x50x1.5 1
088
Hexagon Socket Pan Head Cap
Bolt M8x10
1 094 Rear Right Stabilizer End Cap 1
089 Belt Pulley Ø260 1 095 Hexagon Nut M10 2
090 Belt PJ400 1 096 Tablet and Water Bottle Holder 1
091 Plastic Screw Anchor Ø8x32 1 097
Tablet and Water Bottle Holder
Frame
1

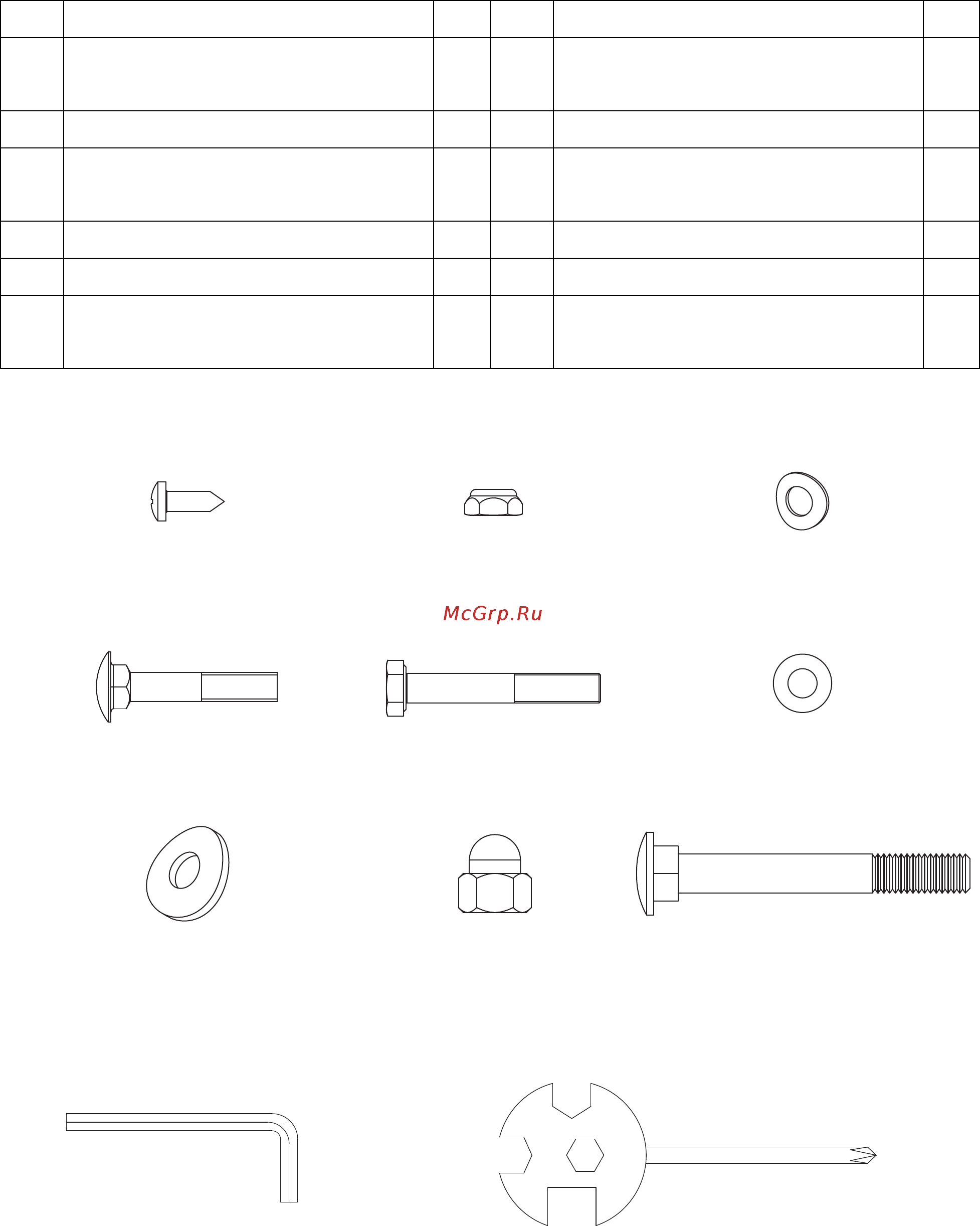

HARDWARE LIST
TOOLS
(4) Cross Recessed Pan Head
Tapping Screw ST4.2x12
8 PCS
(6) Nylon Nut M6
10 PCS
(7) Curve Washer Ø6xØ12x1
4 PCS
(8) Carriage Bolt M6x35
4 PCS
(22) Hexagon Bolt M6x40
6 PCS
(24) Washer Ø6xØ12x1
6 PCS
(48) Big Curve Washer
Ø8xØ20x2
4 PCS
(54) Cap Nut M8
4 PCS
(56) Carriage Bolt
M8x65
4 PCS
Allen Wrench S6
1 PC
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
1 PC
