18
ADJUSTMENTS

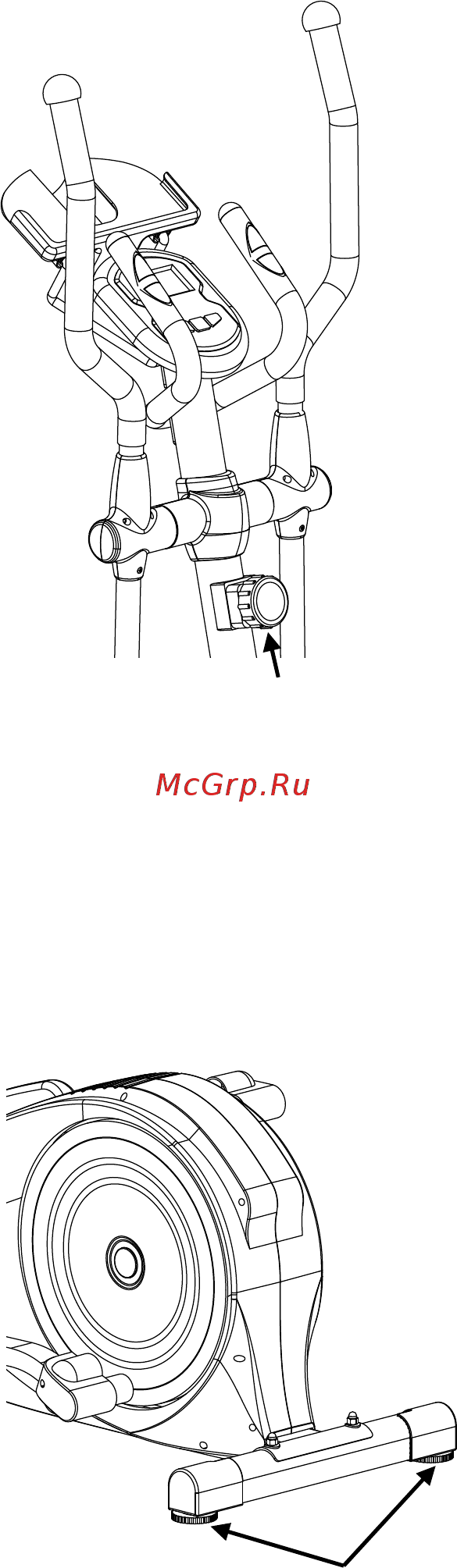

Adjusting the Tension Control Knob
To increase the tension, turn the tension control knob in a
clockwise direction.
To decrease the tension, turn the tension control knob in a
counterclockwise direction.
Adjusting the Adjustable Leveler
Turn the adjustable leveler on the rear stabilizer as
needed to level the elliptical trainer.
Tension Control Knob
Adjustable Leveler
