13

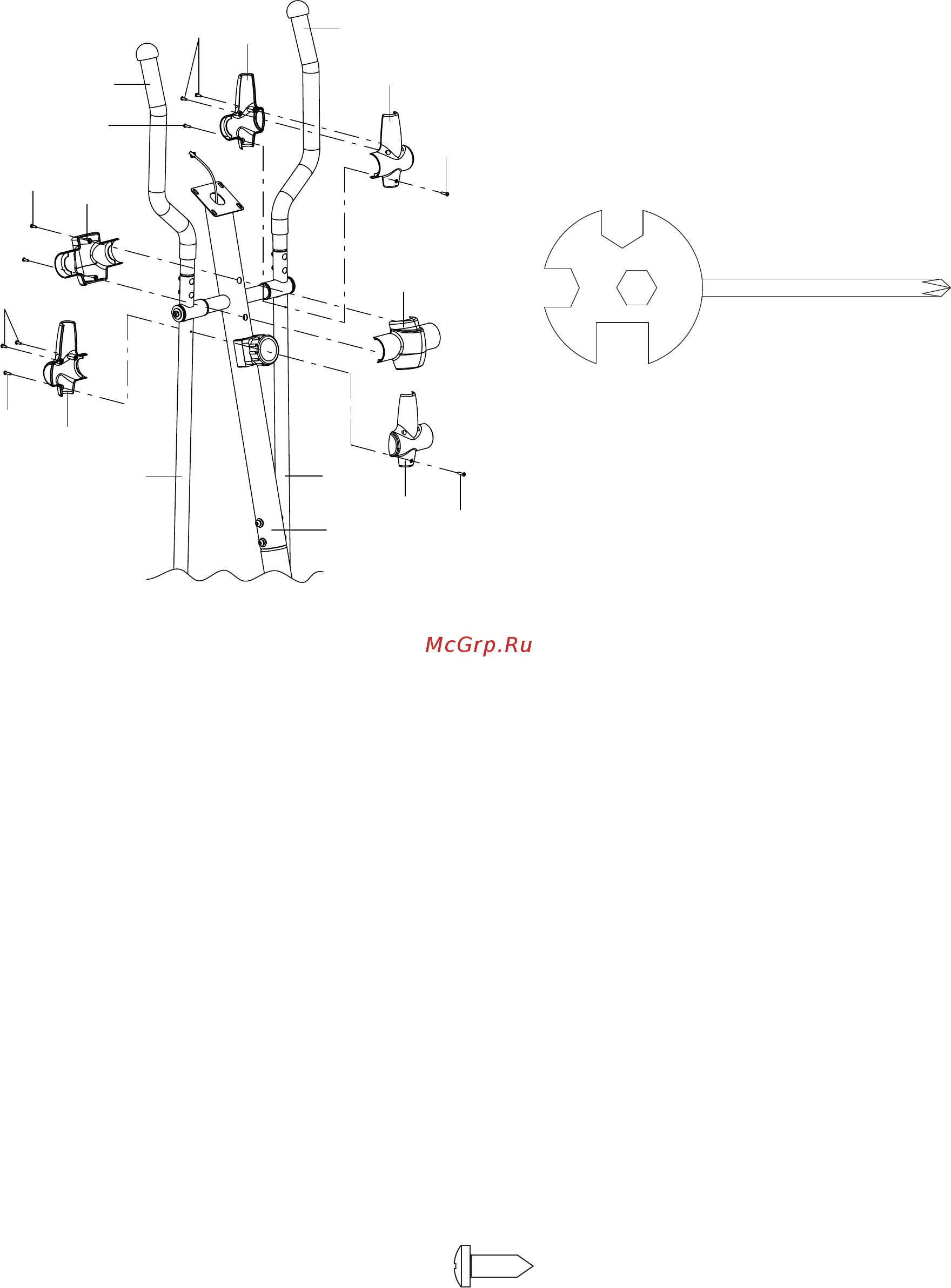

5. Left and Right Handrail Arm Covers-A/B and Front/Rear Decorative Covers for
Front Post Installation
Remove two ST4.2x20 Screws (9) from the Left Handrail Arm (16L). Remove screws with
the Multi Hex Tool with Phillips Screwdriver provided.
Attach the Left Handrail Arm Cover-A (5) and Left Handrail Arm Cover-B (10) onto the Left
Handrail Arm (16L) with two ST4.2x20 Screws (9) and two ST4.2x12 Cross Recessed Pan
Head Tapping Screws (4). Tighten screws with the Multi Hex Tool with Phillips Screwdriver
provided.
Remove two ST4.2x20 Screws (9) from the Right Handrail Arm (16R). Remove screws
with the Multi Hex Tool with Phillips Screwdriver provided.
Attach the Right Handrail Arm Cover-A (50) and Right Handrail Arm Cover-B (51) onto the
Right Handrail Arm (16R) with two ST4.2x20 Screws (9) and two ST4.2x12 Cross Recessed
Pan Head Tapping Screws (4). Tighten screws with the Multi Hex Tool with Phillips
Screwdriver provided.
Attach the Front Decorative Cover for Front Post (41) and Rear Decorative Cover for Front
Post (42) onto the Front Post (47) two ST4.2x12 Cross Recessed Pan Head Tapping Screws
(4). Tighten screws with the Multi Hex Tool with Phillips Screwdriver provided.
Hardware:
(4) Cross Recessed Pan Head
Tapping Screw ST4.2x12
6 PCS
Tool:
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
4
50
51
9
2L
2R
9
41
4
42
9
5
9
10
16L
16R
4
47
