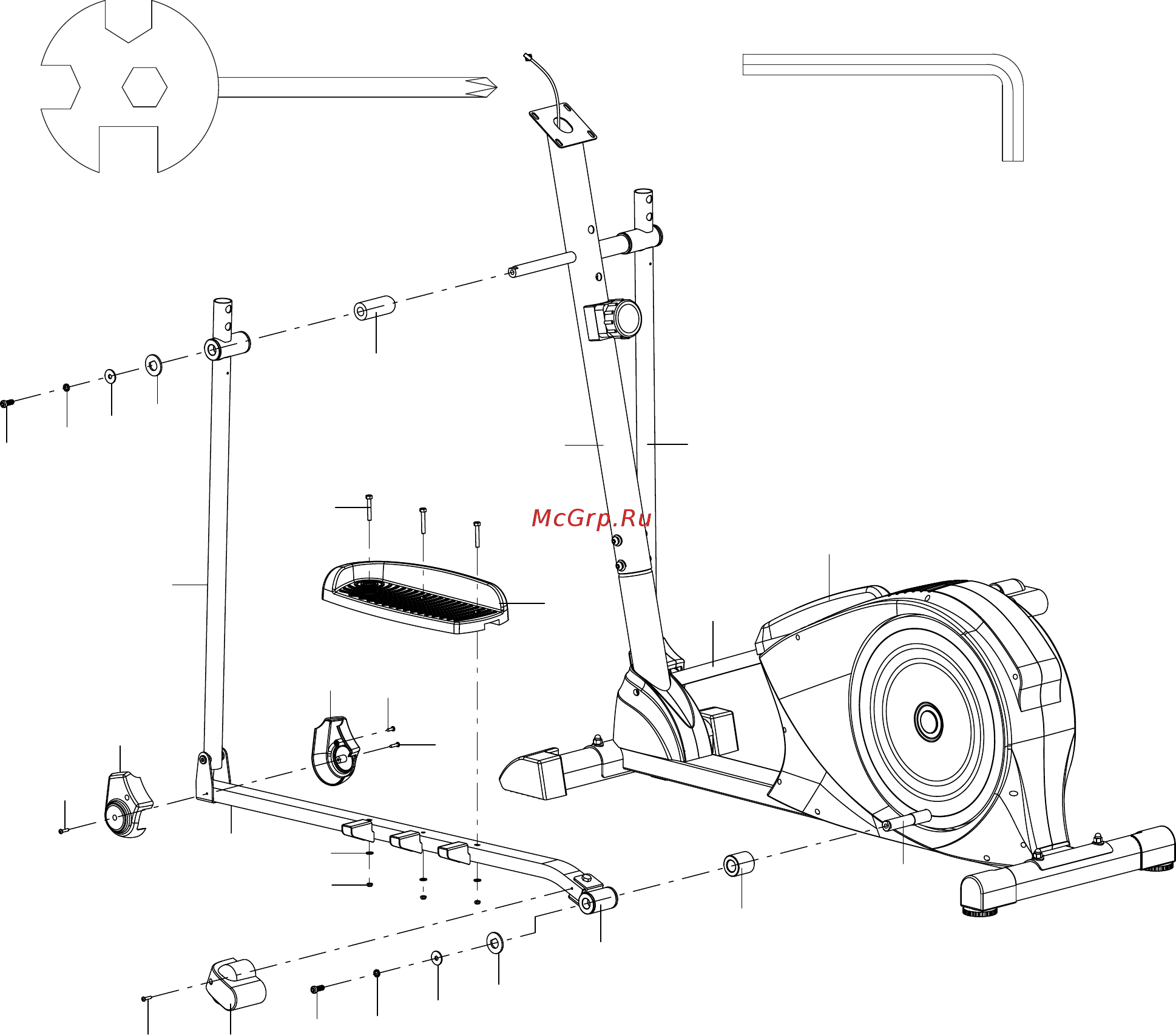

3. Left/Right Handrail Arms, Left/Right Foot Bars, Left/Right Foot Pedals, Foot Bar
Covers-A/B, and Foot Bar Bracket Covers Installation
Remove one M8x20 Hexagon Socket Pan Head Cap Bolt (11), one Ø8 Spring Washer (12),
one Ø8xØ25x2 Big Washer (13), and one Ø38x16.5xδ3 Washer (14) from the left horizontal
axis of the Front Post (47). Remove bolts with the S6 Allen Wrench Tool provided.
Attach the Left Handrail Arm (16L) onto the left horizontal axis of the Front Post (47) with
one M8x20 Hexagon Socket Pan Head Cap Bolt (11), one Ø8 Spring Washer (12), one
Ø8xØ25x2 Big Washer (13), and one Ø38x16.5xδ3 Washer (14) that were removed.
Tighten bolt with the S6 Allen Wrench provided.
Remove one M8x20 Hexagon Socket Pan Head Cap Bolt (11), one Ø8 Spring Washer (12),
one Ø8xØ25x2 Big Washer (13), and one Ø38x16.5xδ3 Washer (14) from the left Crank (67).
Remove bolt with the S6 Allen Wrench provided.
Attach the left Foot Bar Bracket (64) to the left Crank (67) with one M8x20 Hexagon Socket
Pan Head Cap Bolt (11), one Ø8 Spring Washer (12), one Ø8xØ25x2 Big Washer (13), and
one Ø38x16.5xδ3 Washer (14) that were removed. Tighten bolt with the S6 Allen Wrench
Allen Wrench S6
Tools:
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
9
24
6
18L
9
18R
4
22
23L
11
12
13
14
16L
49
16R
47
11
12
13
14
9
64
27L
65
27R
23R
67
30
