15

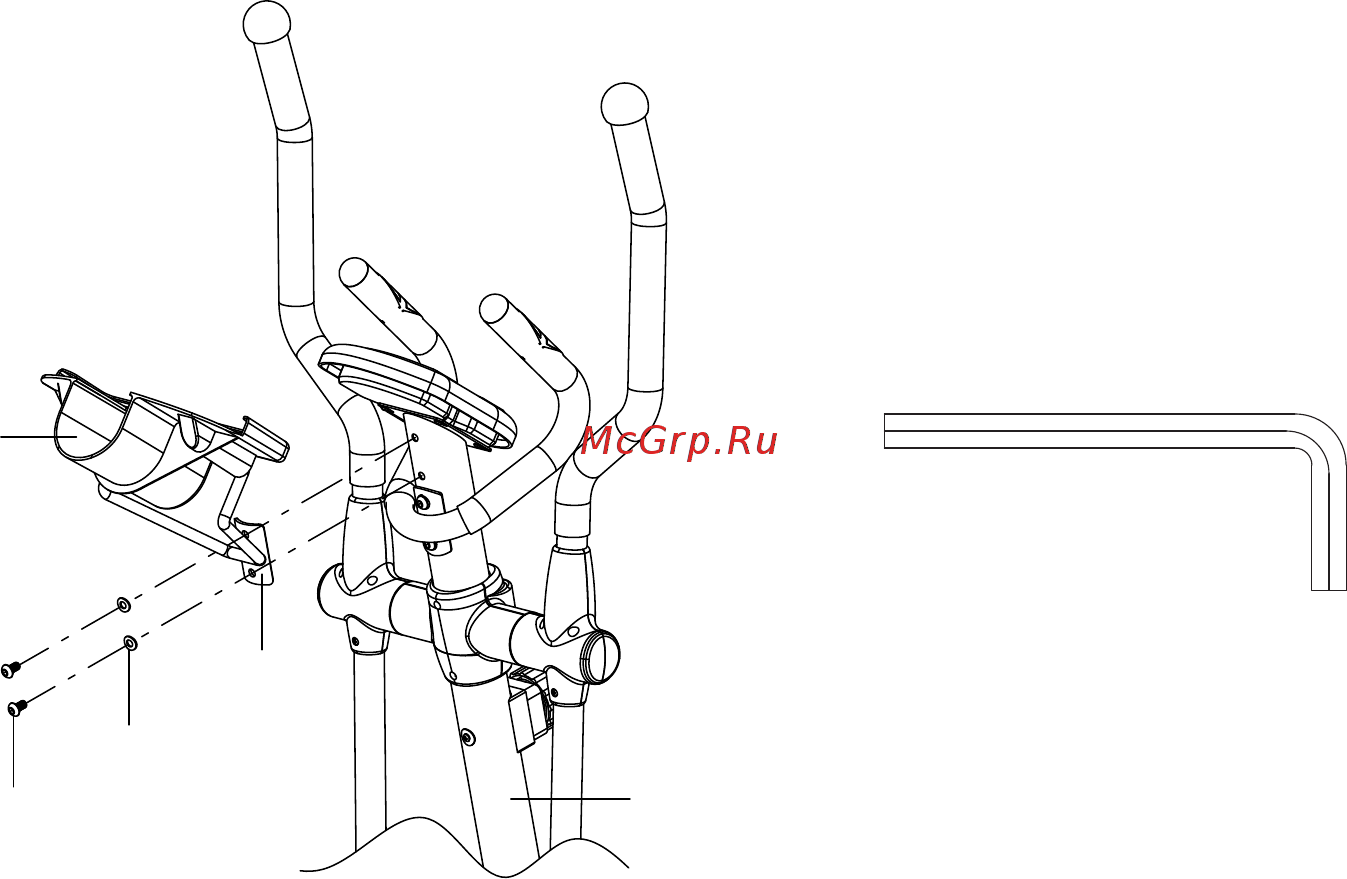

7. Tablet and Water Bottle Holder Installation
Remove two M8x15 Hexagon Socket Pan Head Cap Bolts (33) and two Ø16xØ8x1.5 Curve
Washers (34) from the Front Post (47). Remove bolts with the S6 Allen Wrench provided.
Attach the Tablet and Water Bottle Holder Frame (97) onto the Front Post (47) with two
M8x15 Hexagon Socket Pan Head Cap Bolts (33) and two Ø16xØ8x1.5 Curve Washers (34)
that were removed. Tighten bolts with the S6 Allen Wrench provided.
33
34
97
47
96
Tool:
Allen Wrench S6
