www.timberk.com • electrical storage water heaterwww.timberk.com • electrical storage water heater
5
4

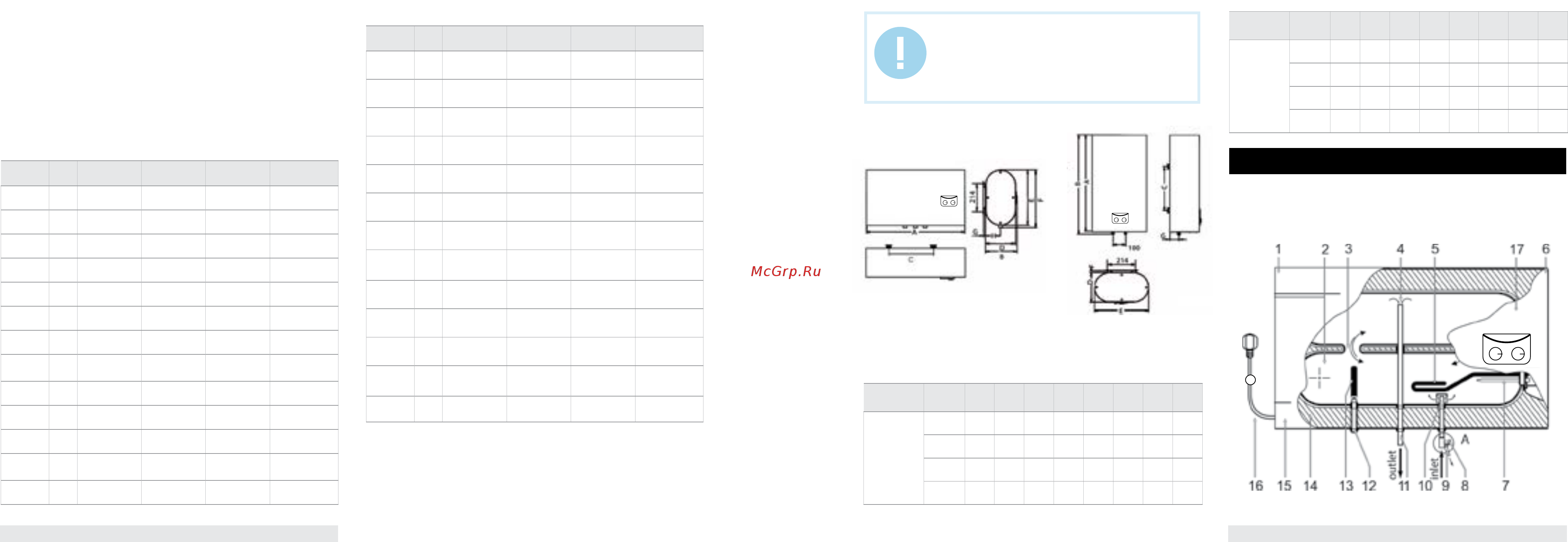

Technical characteristics
Technical characteristics of water heaters are given below in Table 1, 2.
Table 1
Table 2
insulation that allows to efficiently retain accumulated heat and save energy.
5. Temperature controller: accurate and reliable water temperature control.
6. FSP models equipped wiht temperature display shows current water tem-
perature in water heater tanks.
7. Internal tanks and all internal components are made out of SUS 304 stain-
less steel with walls 1.2 mm thick.
8. The water heater is equipped with an anode bar to protect the internal
tank from corrosion and decrease scale generation on the heating element.
Description Units
SWH FSL1 30 V/
SWH FSL2 30 H
SWH FSL1 50 V/
SWH FSL2 50 H
SWH FSL1 80 V/
SWH FSL2 80 H
SWH FSL1 100 V/
SWH FSL2 100 H
Rated voltage V/Hz 230~/50 230~/50 230~/50 230~/50
Rated current A 8.7 8.7 8.7 8.7
Rated power W 2000 2000 2000 2000
Stage power W 800/1200/2000 800/1200/2000 800/1200/2000 800/1200/2000
Tank capacity L 30 50 80 100
Rated
pressure
Mpa 0,7 0,7 0,7 0,7
Protection
Class
– I I I I
Water
protection
class
– IPX4 IPX4 IPX4 IPX4
Heating time,
at Δ 30 ºC
min 21 43 64 79
Appliance
dimensions
mm
550x435x238 855x435x238 991x493x270 1190x493x270
Weight kg
9,8 13,4 18,9 23,4
Factual year
energy
consumption
kW•h 335,8 452,6 481,8 518,3
Constant daily
heating loss
kW•h /
day
0,98 1,23 1,33 1,45
Description Units
SWH FSP1 30 V/
SWH FSP2 30 H
SWH FSP1 50 V/
SWH FSP2 50 H
SWH FSP1 80 V/
SWH FSP2 80 H
SWH FSP1 100 V/
SWH FSP2 100 H
Rated voltage V/Hz 230~/50 230~/50 230~/50 230~/50
Rated current A 8.7 8.7 8.7 8.7
Rated power W 2000 2000 2000 2000
Stage power W 800/1200/2000 800/1200/2000 800/1200/2000 800/1200/2000
Tank capacity L 30 50 80 100
Rated
pressure
Mpa 0,7 0,7 0,7 0,7
Protection
Class
– I I I I
Water
protection
class
– IPX4 IPX4 IPX4 IPX4
Heating time,
at Δ 30 ºC
min 21 43 64 79
Appliance
dimensions
mm 550x435x238 855x435x238 991x493x270 1190x493x270
Weight kg 9,8 13,4 18,9 23,4
Factual year
energy
consumption
kW•h 335,8 452,6 481,8 518,3
Constant daily
heating loss
kW•h /
day
0,98 1,23 1,33 1,45
Capacity, l A B C D E F G H
SWH FSL1/ SWH
FSP1 series
30 550 570 240 238 435 20
73 -
50 855 875 500 238 435 20
73 -
80 991 1011 450 270 493 20
91,5 -
100 1190 1210 550 270 493 20
91,5 -
Capacity, l A B C D E F G H
SWH FSL2/ SWH
FSP2 series
30 550 266 240 238 435 450
20 73
50 855 266 500 238 435 450
20 73
80 991 298 450 270 493 510 20
91,5
100 1190 298 550 270 493 510 20
91,5
Dimensions
IMPORTANT!
Technical characteristics of the water heater you
purchased as of the date of manufacture correspond to
data, specified in the table. Technical characteristics and
scope of delivery can be revised without any prior notice.
5. WATER HEATER DESCRIPTION
Fig.3 shows the design of the horizontal-type water heater.
Example is FSL/FSP.
FSL2
Fig. 3
Dimensions of water heaters (mm) are made in accordance with fig. 1, fig.
2 and fig. 3.
Table 3
Fig. 1 Fig. 2
Series FSM1/FSQ1
Series FSM2/FSQ2
Series FSL1/FSP1
Series FSL2/FSP2
