www.timberk.com • electrical storage water heaterwww.timberk.com • electrical storage water heater

7

6

6. DELIVERY SET

7. WATER HEATER INSTALLATION

1. Water heater – 1 pc.

2. Anchor bolt – 2 pcs.

3. Pressure safety valve – 1 pc.

4. Operation manual – 1 pc.

5. Guarantee card – 1 pc.

6. Packing – 1 pc.

1. Power cord with GFCI**

2. Water outlet

3. Hot water supply adjustment cock*

4. Mixer*

5. Shower header*

6. Cold water supply adjustment cock*

7. Discharge pipe*

8. Composite pressure-relief valve

9. Water inlet

10. Magnesium anode – water discharge nozzle

11. Water main shut-off valve

12. Water main

13. Inlet piple

14. Outlet pipe

* not included in the delivery set

** Depending on the product batch, GFCI can be located not within the power cable electric

plug.

Water heater mounting methods

Fig.5 shows the way to mount the water heater for one consumption point.

Location

1. Electric water heater should be mounted on a firm wall. If the wall is not

robust enough to hold the weight equal to the doubled weight of the total

water heater weight, fully filled with water, then it should be mounted on a

special support.

2. The wall, where the electric water heater is to be mounted, must withstand

at least the double weight of the water heater, fully filled with water; there

must be no cracks and other damages on the wall. Otherwise it is necessary

to take measures to strengthen the mounting or mount the water heater on

a special support.

3. If a bathroom is too small, the water heater can be installed elsewhere,

unexposed to direct sunlight and unavailable for moisture. However, to

reduce heat losses in pipelines, the location, where a water heater is to be

installed, must be as close to the place, where hot water is used, as possible.

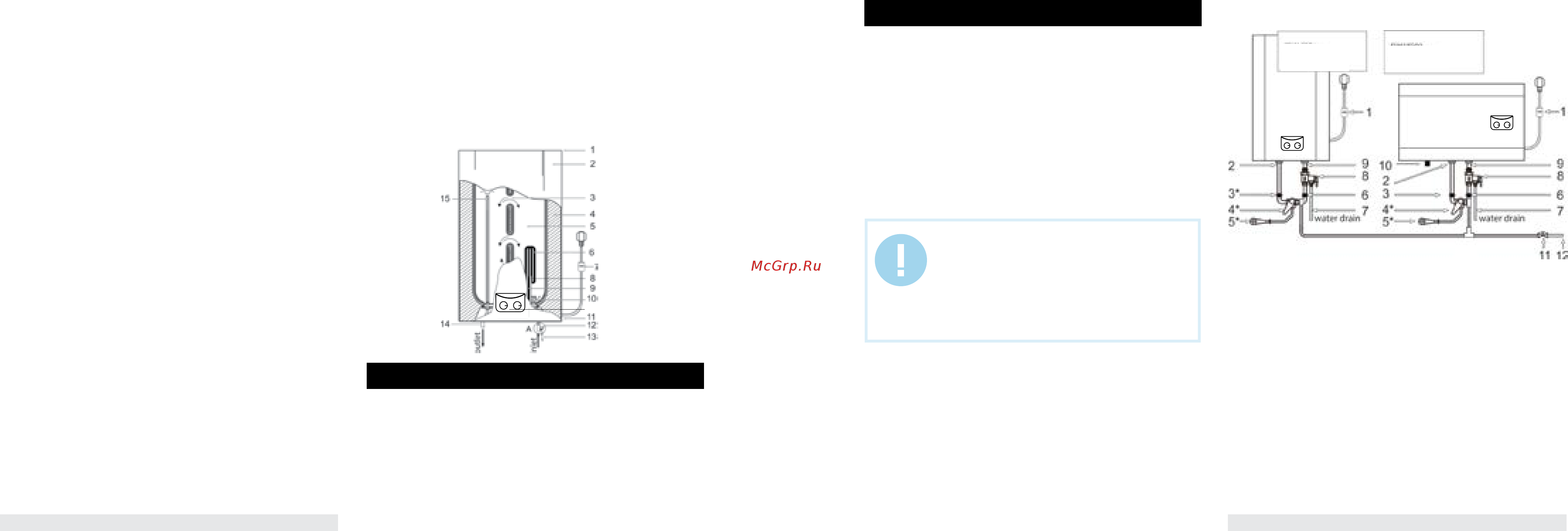

Fig. 4

1 – left composite protective cover

2 – water containing tanks

3 – system of flows between tanks (3 overflows)

4 – the upper part of the hot water intake tube

5 – heating element

6 – right composite protective cover

7 – temperature sensor case**

8 – composite pressure safety valve (be sure to install onto the cold water

supply tube) Pos. A

9 – emergency discharge of surplus water pressure (a small water leakage

is possible from the emergency discharge hole when the water heater is

operating. It is normal)

10 – inlet nozzle with a splitter

11 – hot water outlet nozzle

12 – emergency water discharge valve (can be used for water discharge

during cleaning of the internal tank surface upon its maintenance and anode

replacement)

13 – protective magnesium anode

14 – urethane foam heat insulation layer

15 – external decorative case

16 – power cable with GFCI*

17 - control panel

* Depending on the product batch, GFCI can be located not within the power cable electric plug.

** FSP model eguiped with temperature sensor

FSL1/FSP1 series

1 – the upper composite protective cover

2 – external decorative case

3 – system of flows

4 – urethane foam heat insulation layer

5 – internal tank

6 – heating element

7 – power cable with GFCI*

8 – thermostat sensor pipe

9 – protective magnesium anode

10 – inlet nozzle with a splitter

11 – the lower composite protective cover

12 – composite pressure safety valve (make sure to install onto the cold water

supply tube) Pos. A

13 – emergency discharge of surplus water pressure (a small water leakage is

possible from the emergency discharge hole when the water heater is operating.

It is normal)

14 – hot water outlet nozzle

15 – the upper part of the hot water intake tube

16 - control panel

* Depending on the product batch, GFCI can be located not within the power cable electric plug.

IMPORTANT!

The water heater must be mounted on a vertical wall

only the position, specified in Fig.3-4 (FSL1/FSP1 line

– vertically, FSL2/FSP2 – horizontally). Mounting of the

appliance in any other position or vertical or horizontal

tilting will inevitably result in failure of the water heater,

emergency situation and is considered a non-guarantee

case by the manufacturer.

Fig. 5

FSL1/FSP1

Vertical position

FSL2/FSP2

Horizontal position
