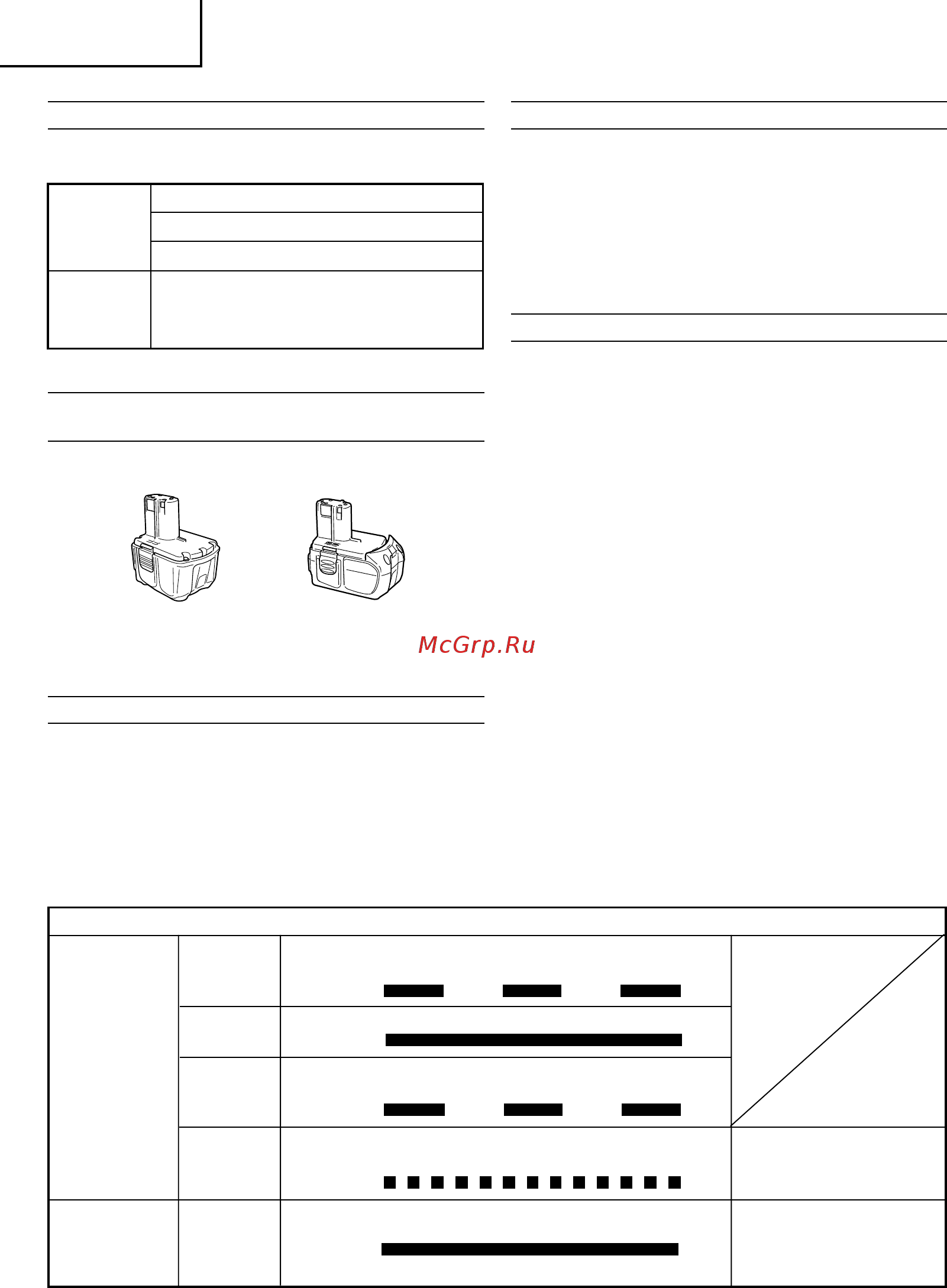

STANDARD ACCESSORIES
In addition to the main unit (1), the package contains the accessories listed in the
table below.
Standard accessories are subject to change without notice.
OPTIONAL ACCESSORIES
(Sold separately)
䡬
Battery
(BCL1430, BCL1440) (EBM1830, BCL1840)
Optional accessories are subject to change without notice.
APPLICATION
<WH14DL2 / WH18DL2>
䡬 Driving and removing of small screws, small bolts,
etc.
<WR14DL2 / WR18DL2>
䡬 Tightening and loosening of all types of bolts and
nuts, used for securing structural items
1
Charger ........................................................................ 1
2
Battery ......................................................... 1 or 2 or 3
3
Plastic case .................................................................. 1
Without charger, battery and plastic case.
WH14DL2
WH18DL2
WR14DL2
WR18DL2
WH14DL2 (NN)
WH18DL2 (NN)
WR14DL2 (NN)
WR18DL2 (NN)
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch to
remove the battery (see Figs. 1 and 2).
CAUTION
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see
Fig. 2).
CHARGING
Before using the power tool, charge the battery as follows.
1. Connect the charger’s power cord to a receptacle.
When the power cord is connected, the charger’s
pilot lamp will blink in red. (At 1-second intervals)
2. Insert the battery into the charger.
Firmly insert the battery into the charger till it contacts
the bottom of the charger and checking the polarities
as shown in Fig. 3.
CAUTION
If the batteries are inserted in the reverse direction,
not only recharging will become impossible, but it
may also cause problems in the charger such as a
deformed recharging terminal.
3. Charging
When inserting a battery in the charger, charging will
commence and the pilot lamp will light continuously
in red.
When the battery becomes fully recharged, the pilot
lamp will blink in red. (At 1-second intervals) (See
Table 1)
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown in
Table 1, according to the condition of the charger or
the rechargeable battery.
Table 1
Indications of the pilot lamp
Lights for 0.5 seconds. Does not light for 0.5 seconds.
(off for 0.5 seconds)
Lights continuously
Lights for 0.5 seconds. Does not light for 0.5 seconds.
(off for 0.5 seconds)
Lights for 0.1 seconds. Does not light for 0.1 seconds.
(off for 0.1 seconds)
Lights continuously
Before
charging
While
charging
Charging
complete
Charging
impossible
Blinks
(RED)
Lights
(RED)
Blinks
(RED)
Flickers
(RED)
Lights
(GREEN)
Malfunction in the battery or the
charger
Battery overheated.
Unable to charge (Charging will
commence when battery cools)
Overheat
standby
Charge status lamp
(RED)
Overheat lamp
(GREEN)
NOTE: When standby for cooling battery, UC18YRL cools the overheated battery by cooling fan.
