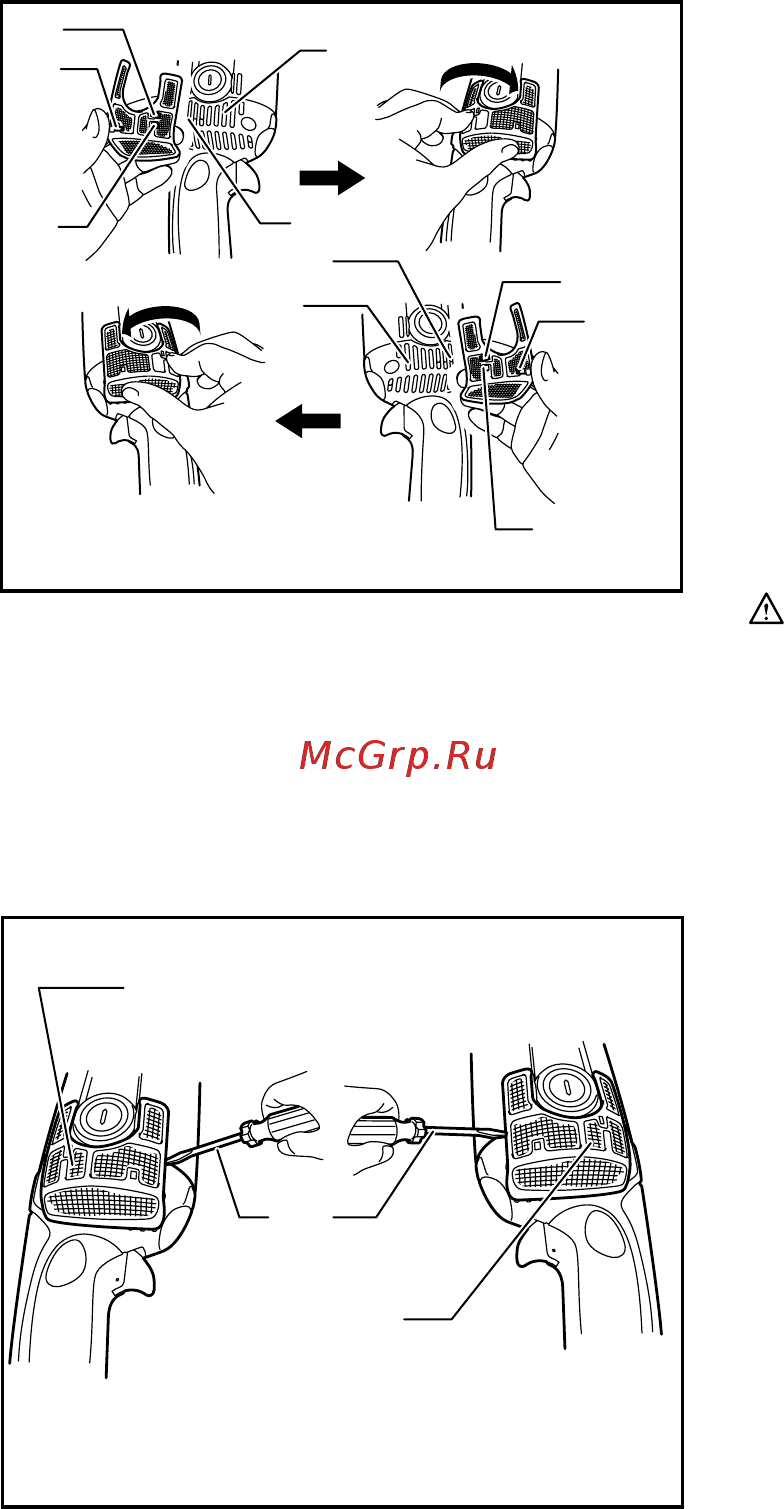

To install the attachments, insert hook A and rib A into
vent A lightly.
Insert hook B into vent B.
1
3
2
013743
To remove, lift it up by using a slotted bit screwdriver
near the hook B.
Also lift it up near the hook A.
NOTE:
Dust cover attachments installed on GS5000 and
GS6000 do not cover the vents above and below the
brush holder which is designed dust-proof.
Replacing carbon brushes
Fig.13
When the resin insulating tip inside the carbon brush is
exposed to contact the commutator, it will automatically
shut off the motor. When this occurs, both carbon
brushes should be replaced. Keep the carbon brushes
clean and free to slip in the holders. Both carbon
brushes should be replaced at the same time. Use only
identical carbon brushes.
Fig.14
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Hanger
• Dust cover
• Hex wrench
• Wrench holder
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
1. Dust cover attachment R
2. Dust cover attachment L
3. Screwdriver
1. Hook B
2. Hook A
3. Rib A
4. Vent A
5. vent B
