Sharp PN-R496 [6/56] Mounting precautions
![Sharp PN-R606 [6/56] Mounting precautions](/views2/1388744/page6/bg6.png)
4
E

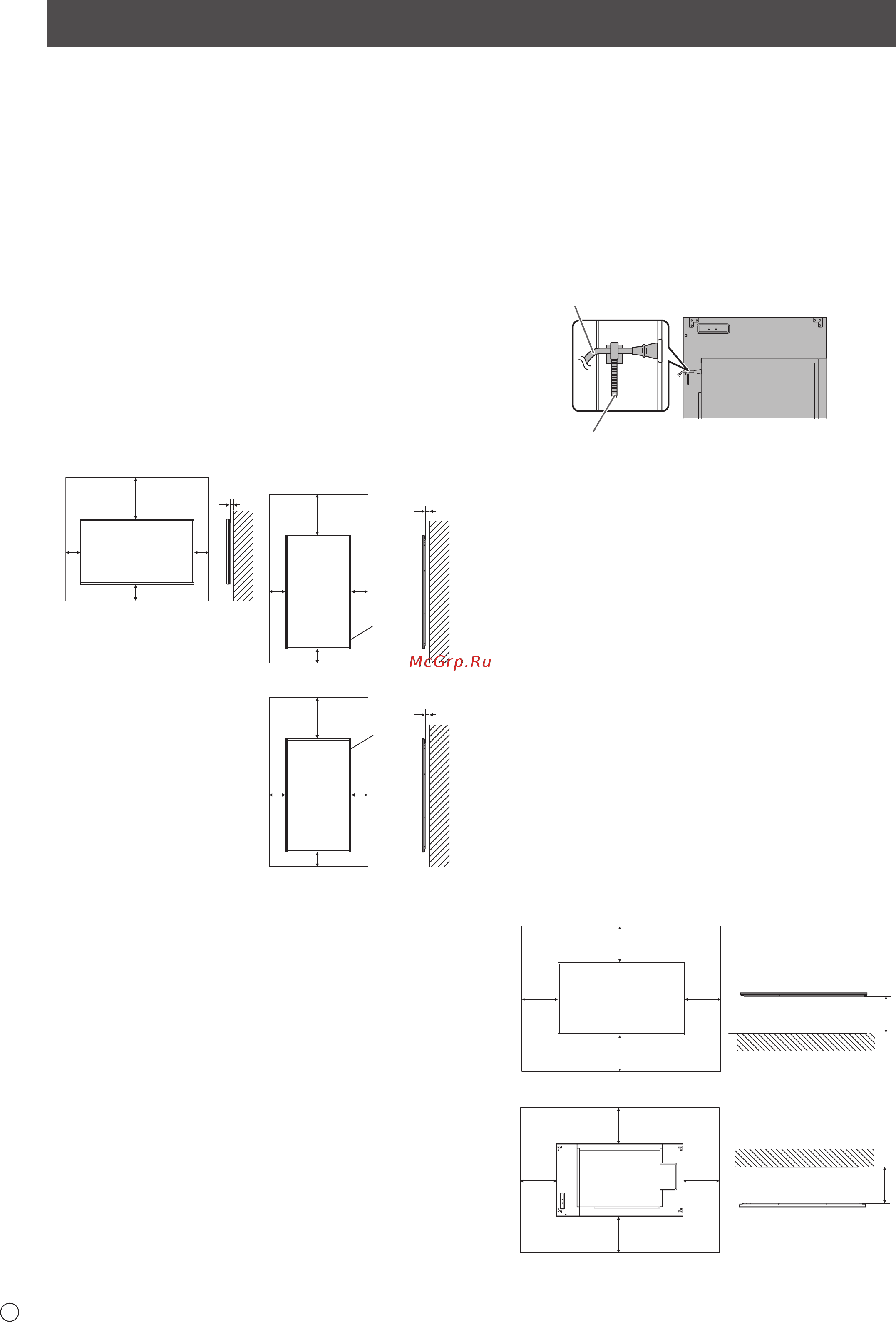

MOUNTING PRECAUTIONS
• This product is for use indoors.
• A mounting bracket compliant with VESA specications is
required.
• Since the monitor is heavy, consult your dealer before
installing, removing or moving the monitor.
• Mounting the monitor on the wall requires special expertise
and the work must be performed by an authorized SHARP
dealer. You should never attempt to perform any of this
work yourself. Our company will bear no responsibility
for accidents or injuries caused by improper mounting or
mishandling.
• Use the monitor with the surface perpendicular to a level
surface. If necessary, the monitor may be tilted up to 20
degrees upward or downward.
• This monitor should be used at an ambient temperature
between 32°F (0°C) and 104°F (40°C). Provide
enough space around the monitor to prevent heat from
accumulating inside.
For the monitor in
landscape orientation
For the monitor in
portrait orientation
5/16
[7]
5/16 [7]
7-7/8 [200]
2 [50]
2
[50]
2
[50]
7-7/8 [200]
2 [50]
2
[50]
2
[50]
5/16 [7]
Unit: inch [mm]
[PN-R706/PN-R606]
[
PN-R556/PN-R496/PN-R426
]
7-7/8 [200]
2 [50]
2
[50]
2
[50]
Power
LED
Power
LED
• If it is difcult to provide sufcient space for any reason
such as the installation of the monitor inside a housing or
of several units side-by-side, or if the ambient temperature
may be outside of the range of 32°F (0°C) to 104°F (40°C),
install a fan or take other measures to keep the ambient
temperature within the required range.
When installing two or more monitor units side-by-side,
provide space of at least 3/16 inch (5 mm) around them
to prevent stress on the adjacent unit or structure due to
thermal expansion.
• Temperature condition may change when using the monitor
together with the optional equipments recommended by
SHARP. In such cases, please check the temperature
condition specied by the optional equipments.
• Do not block any ventilation openings. If the temperature
inside the monitor rises, this could lead to a malfunction.
• Do not place the monitor on a device which generates heat.
• Adhere to the following when installing the monitor in its
portrait orientation. Failing to adhere to the following may
cause malfunctions.
- Install the monitor such that the power LED is located on
the right side.
- Set the PORTRAIT/LANDSCAPE INSTALL in the
MONITOR menu to PORTRAIT. (See OPERATION
MANUAL.)
- Be sure to clamp the power cord (supplied) by using the
supplied cable clamp (afxing type). When clamping the
power cord, take care not to stress the terminal of the
power cord. Do not bend the power cord excessively.
Power cord
Cable clamp
Mounting the monitor laying at on a surface
• When using the monitor laying at on a surface (when the
monitor is tilted 20 degrees or more upward or downward
from the perpendicular in relation to a level surface),
consult an authorized SHARP dealer because there are
some specic mounting conditions.
Adhere to the following. Failing to adhere to the following
may cause malfunctions.
- The PN-R706/PN-R606 can be tilted by up to 90 degrees
upward and by up to 45 degrees downward.
- The PN-R556/PN-R496/PN-R426 can be tilted by up to
90 degrees upward and downward.
- Set HORIZONTAL INSTALLATION in the MONITOR
menu to UPWARD or DOWNWARD. (See OPERATION
MANUAL.)
- Use the monitor at the ambient temperature within the
range of 32°F (0°C) to 86°F (30°C). Provide 7-7/8 inch
(200 mm) or more space between the monitor and the
ceiling or other mounting surfaces and surrounding
objects to prevent heat from accumulating inside.
If it is difcult to provide sufcient space or if the ambient
temperature may be outside of the range of 32°F (0°C) to
86°F (30°C), install a fan or take other measures to keep
the ambient temperature within the required range.
7-7/8 [200]
7-7/8 [200]
7-7/8
[200]
7-7/8
[200]
For the monitor laying flat on a surface (facing down)
7-7/8 [200]
Unit: inch [mm]
For the monitor laying flat on a surface (facing up)
Unit: inch [mm]
7-7/8 [200]
7-7/8 [200]
7-7/8 [200]
7-7/8
[200]
7-7/8
[200]
- Do not press hard on the LCD panel or otherwise subject
it to impacts.
