Airwell Rooftech 100 [14/62] Economiser

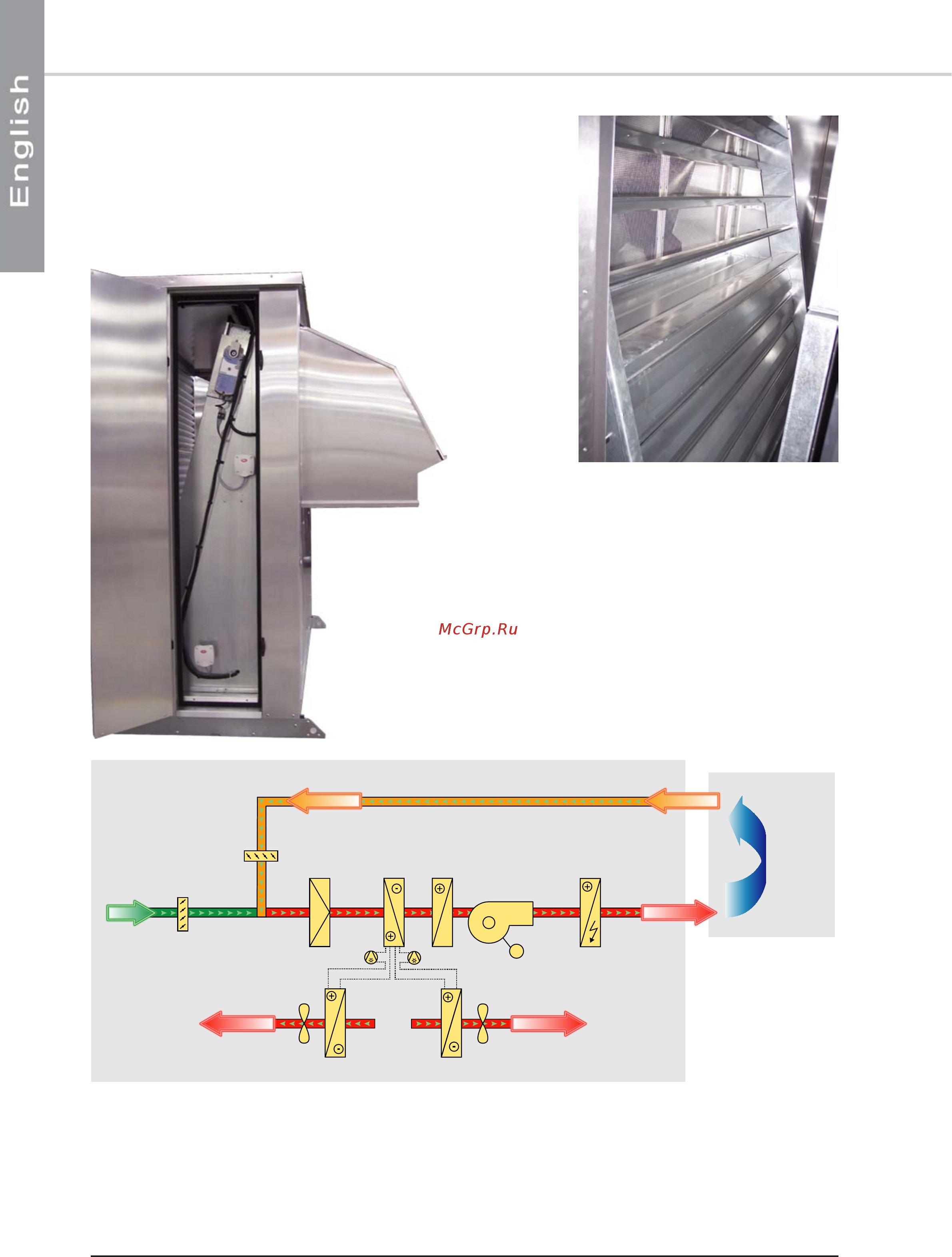

ECONOMISER

ECONOMISER - 2 FLAPS

The economiser is a set of two dampers driven by one actuator. The

quantity of outdoor air introduced into the building varies according

to the room set point and provides energy savings in both modes.

Economiser is used to modulate the return and outdoor air volumes.

It also provides an antifreeze protection during OFF period by closing

the outdoor air dampers

1 Filter

2 Indoor coil

3 Heating

3-A Hot water or Gas

3-B Additional heating

4 Centrifugal fan

5 Axial fan

6 Outdoor coil

7 Compressor with reversal cycle valve

8 Return air dampers

9 Outdoor air dampers

3-A

3-B

A Supply air

B Return air

C outdoor air

D Outdoor air to outdoor coil
