Page 12

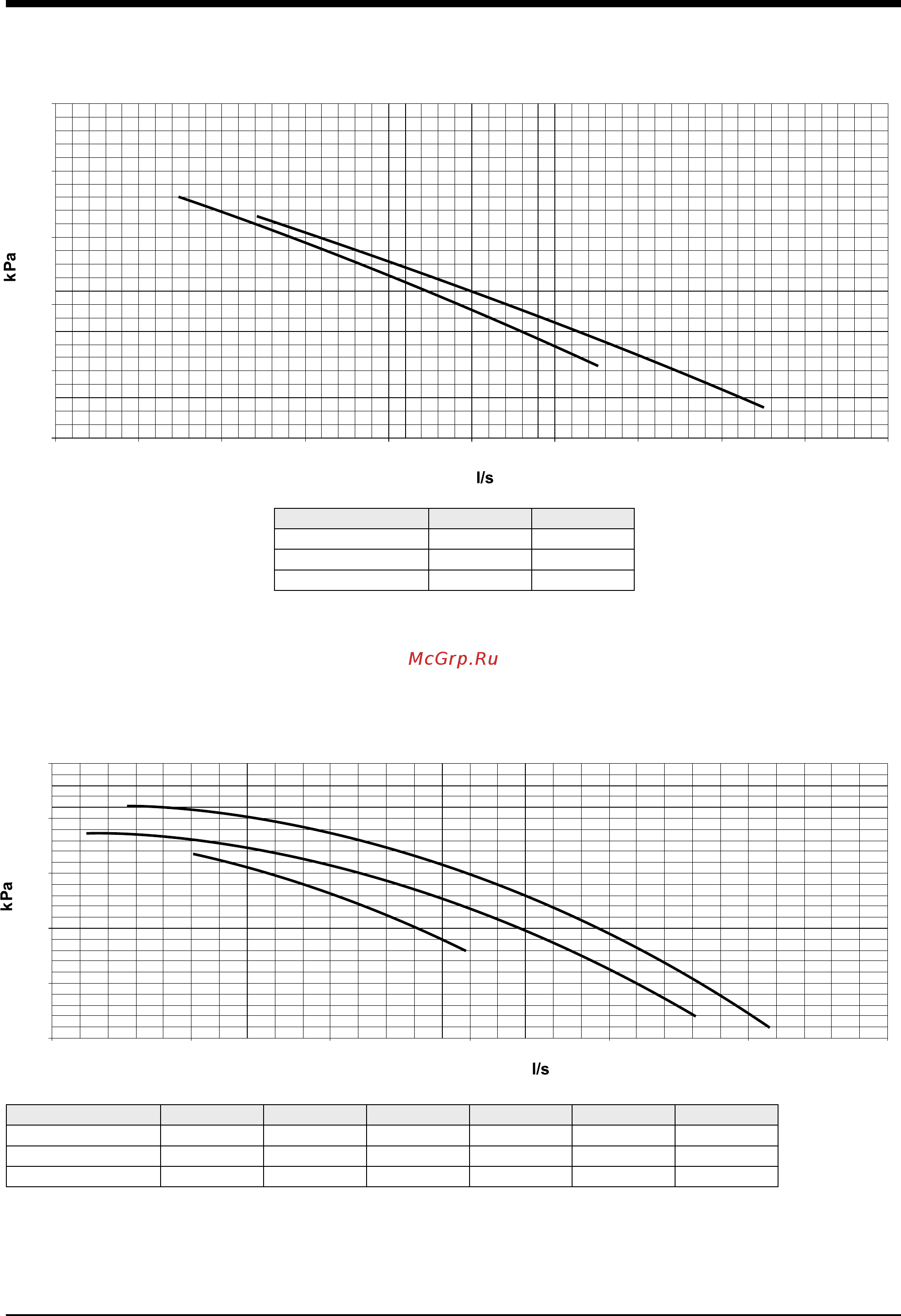

Hydraulic Pump External Static Pressure
Models 25 & 30
Models 35, 40, 50, 60, 70 & 80
WATER FLOW (l/s) MODEL 25 MODEL 30
Nominal (1) 1.04 1.29
Minimum (2) 0.7 0.86
Maximum (3) 1.73 2.15
(1) Eurovent conditions, Water : 12/7 °C, Air : 35 °C.
(2) With water ∆T : 7.5 K at nominal capacity.
(3) With water ∆T : 3 K at nominal capacity.
WATER FLOW (l/s) MODEL 35 MODEL 40 MODEL 50 MODEL 60 MODEL 70 MODEL 80
Nominal (1) 1.60 1.75 2.16 2.75 3.08 3.2
Minimum (2) 1.07 1.16 1.45 1.80 2.1 2.3
Maximum (3) 2.68 2.92 3.58 4.56 5.09 5.3
(1) Eurovent conditions, Water : 12/7 °C, Air : 35 °C.
(2) With water ∆T : 7.5 K at nominal capacity.
(3) With water ∆T : 3 K at nominal capacity.
