Airwell AQCL 120 [16/20] Dimensions mm

Page 16

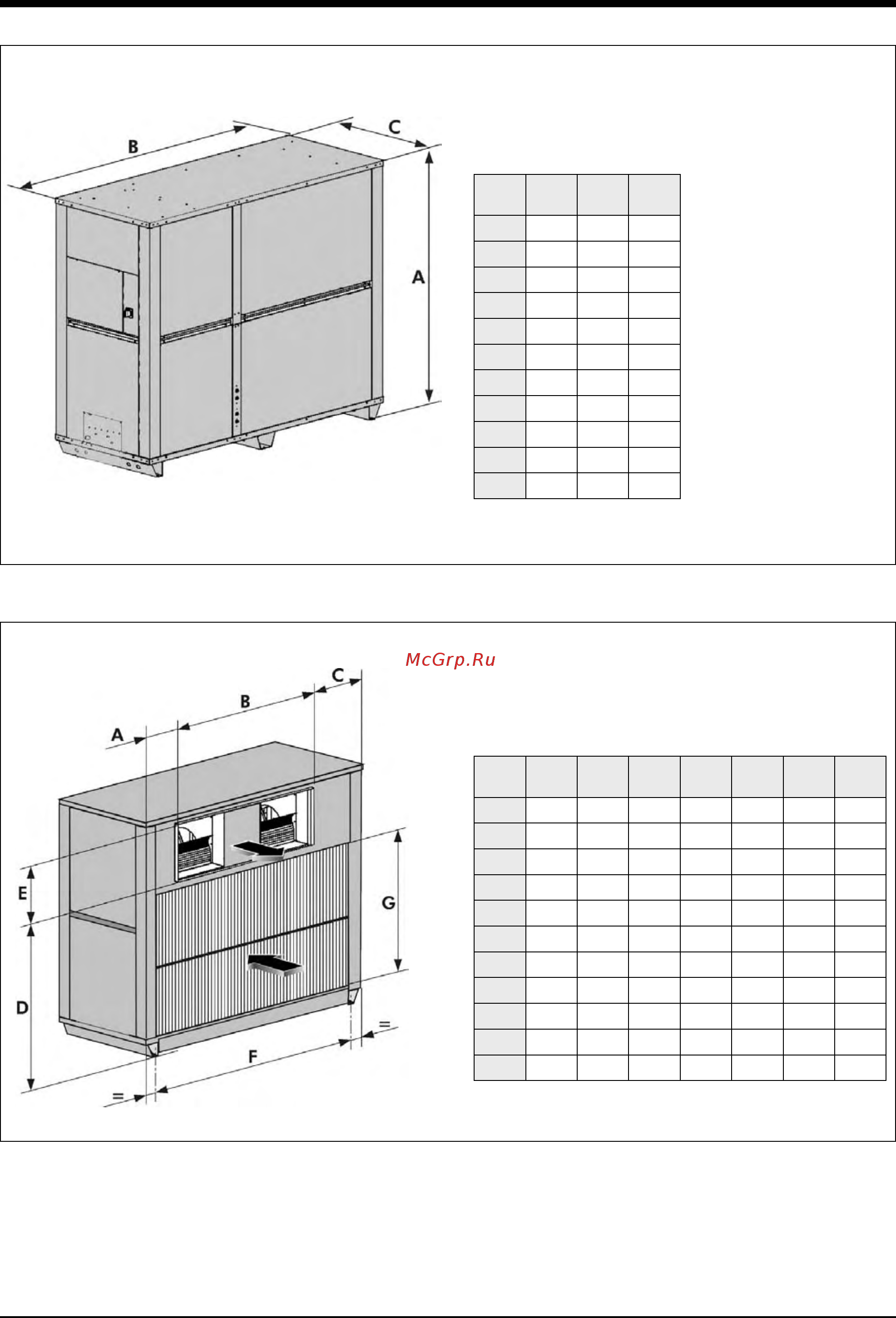

Dimensions (mm)

Unit overall dimensions

Standard blowing

AQCL

sizes

A B C D E F G

25 150 1350 250 1115 348 1500 950

30 150 1350 250 1115 348 1500 950

35 150 1350 250 1115 348 1500 950

40 285 1400 530 1275 450 2110 1085

50 285 1400 530 1275 450 2110 1085

60 285 1400 530 1275 450 2110 1085

70 314 1600 544 1745 500 2240 1500

80 314 1600 544 1745 500 2240 1500

100 314 1600 544 1745 500 2240 1500

120 314 1600 544 1745 500 2240 1500

130 314 1600 544 1745 500 2240 1500

AQCL

sizes

A B C

25 1505 1750 890

30 1505 1750 890

35 1505 1750 890

40 1773 2206 890

50 1773 2206 890

60 1773 2206 890

70 2313 2464 1100

80 2313 2464 1100

100 2313 2464 1100

120 2313 2464 1100

130 2313 2464 1100
