Airwell AQCL 120 [17/20] Dimensions mm

Page 17

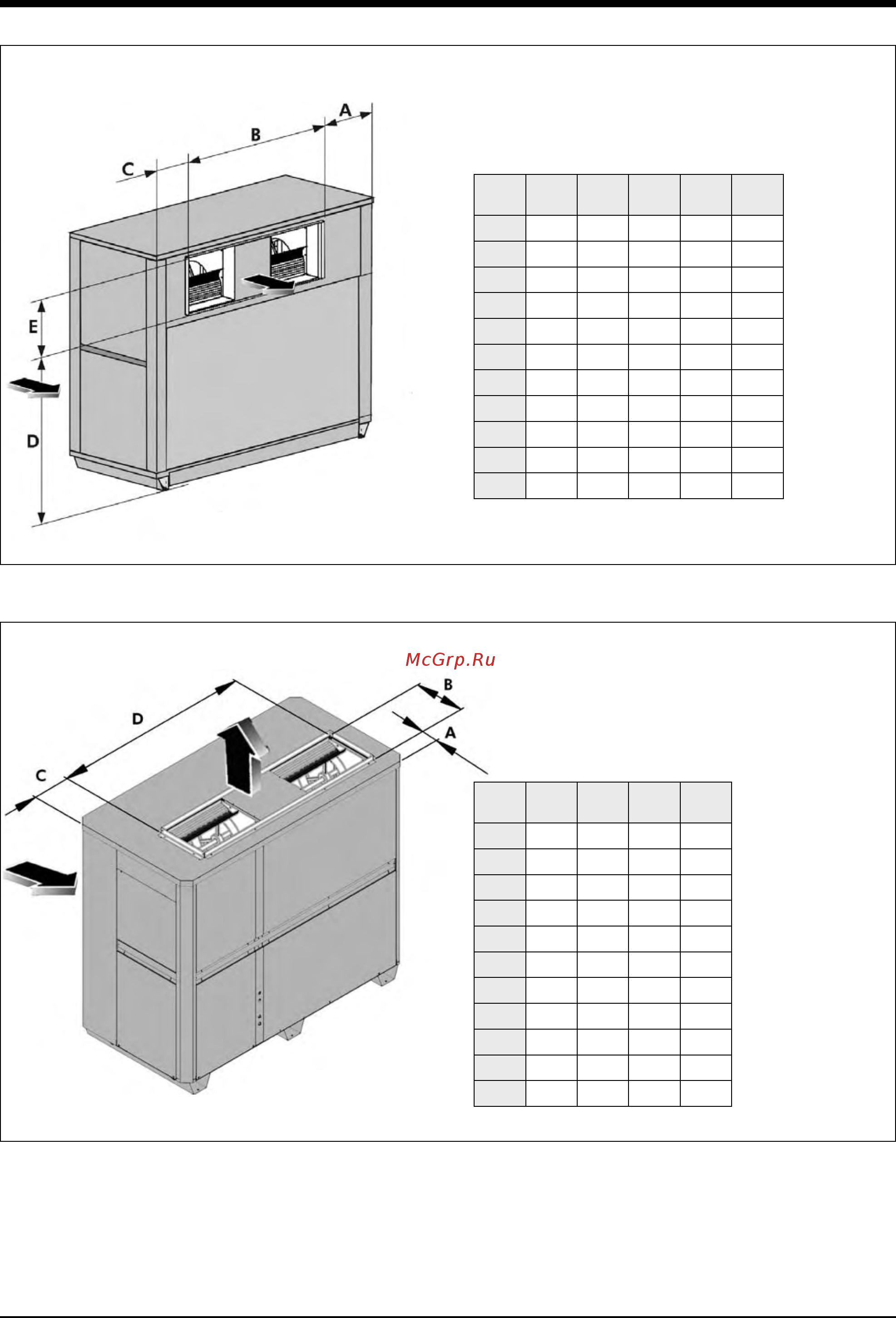

Dimensions (mm)

Opposite blowing

Vertical blowing

AQCL

sizes

A B C D E

25 250 1350 150 1115 348

30 250 1350 150 1115 348

35 250 1350 150 1115 348

40 530 1400 285 1275 450

50 530 1400 285 1275 450

60 530 1400 285 1275 450

70 544 1600 314 1745 500

80 544 1600 314 1745 500

100 544 1600 314 1745 500

120 544 1600 314 1745 500

130 544 1600 314 1745 500

AQCL

sizes

A B C D

25 63 443 188 1448

30 63 443 188 1448

35 63 443 188 1448

40 215 445 595 1490

50 215 445 595 1490

60 215 445 595 1490

70 150 500 544 1600

80 150 500 544 1600

100 150 500 544 1600

120 150 500 544 1600

130 150 500 544 1600
