ULTIMA COMPACT Chillers
Chillers
10
Installation & Maintenance : 903-129 IM E 10/04/C
Installation Data

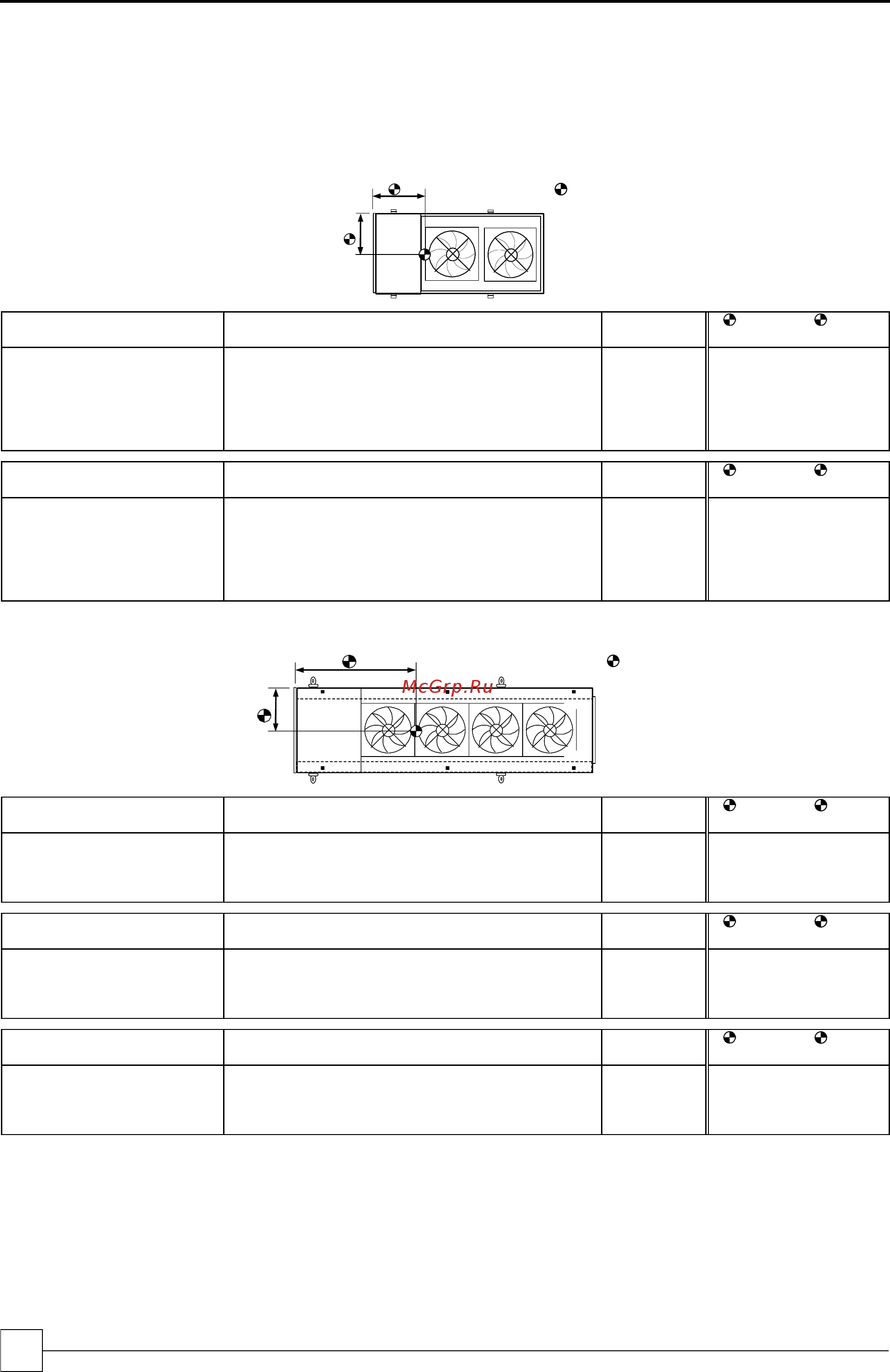

POINT LOADINGS, WEIGHTS & CENTRE OF GRAVITY (C OF G)
SINGLE ROW FANS - /1
UCC30 - UCC80 (Except UCC75)
P1
P2
P3
P4
1
2
= C of G
Model SQ/DQ P1 P2 P3 P4 (1) (1)
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCC30 SQ/DQ-1/1 kg 125 125 125 125 500 600 825
UCC40 SQ/DQ-1/1 kg 150 150 140 140 580 600 800
UCC50 SQ/DQ-2/1 kg 180 180 185 185 730 600 1040
UCC60 SQ/DQ-2/1 kg 190 190 200 200 780 600 1040
UCC70 SQ/DQ-2/1 kg 195 195 205 205 800 600 1040
UCC80 SQ/DQ-2/1 kg 215 215 230 230 890 600 1040
Model SSQ/DSQ P1 P2 P3 P4 (1) (1)
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCC30 SSQ/DSQ-1/1 kg 125 125 125 125 500 600 825
UCC40 SSQ/DSQ-1/1 kg 155 155 145 145 600 600 800
UCC50 SSQ/DSQ-2/1 kg 185 185 185 185 740 600 1040
UCC60 SSQ/DSQ-2/1 kg 195 195 200 200 790 600 1040
UCC70 SSQ/DSQ-2/1 kg 195 195 210 210 810 600 1040
UCC80 SSQ/DSQ-2/1 kg 225 225 240 240 930 600 1040
UCC75 - UCC150 (Except UCC80)
P1 P3 P5
P2 P4 P6
2
1
= C of G
Model D P1 P2 P3 P4 P5 P6
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCC75D-2/1 kg 320 320 (1) (1) 160 160 960 665 845
UCC100D-2/1 kg 345 345 (1) (1) 175 175 1040 665 860
UCC125D-3/1 kg 315 295 140 130 190 190 1260 665 1380
UCC150D-3/1 kg 330 330 155 155 205 205 1380 665 1370
Model DQ P1 P2 P3 P4 P5 P6
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCC75DQ-2/1 kg 330 330 (1) (1) 170 170 1000 665 845
UCC100DQ-3/1 kg 285 285 135 135 175 175 1190 665 1365
UCC125DQ-3/1 kg 320 300 155 145 200 200 1320 665 1385
UCC150DQ-4/1 kg 340 340 195 195 250 250 1570 665 1590
Model DSQ P1 P2 P3 P4 P5 P6
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCC75DSQ-2/1 kg 345 345 (1) (1) 165 165 1020 665 845
UCC100DSQ-3/1 kg 300 300 130 130 175 175 1210 665 1365
UCC125DSQ-4/1 kg 340 320 200 190 250 240 1540 665 1575
UCC150DSQ-4/1 kg 355 355 215 215 270 270 1680 665 1590
(1) Have only 4 fixing and 4 point loadings.
(2) Based on standard unit, for units fitted with pump, tank and expansion vessel options, please contact Airedale.
